PPVZ2883X*Q400

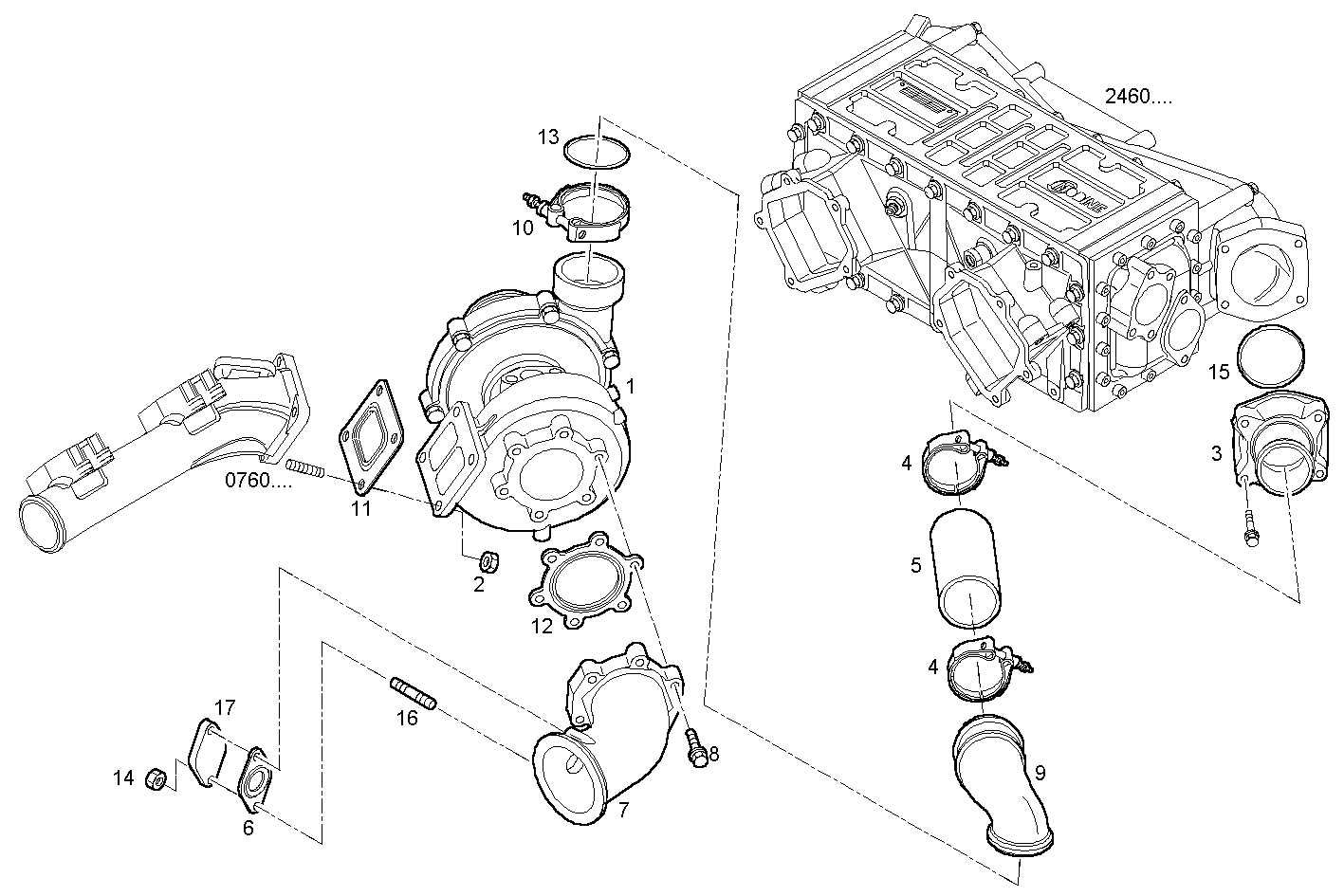

2400.175/01 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504064262 | TURBOCHARGER LEFT |
| 2 | 99463139 | HEXAGON NUT M10X1,5 |
| 3 | 504048805 | FLANGE |
| 4 | 17769091 | CLIP |
| 5 | 504104715 | RUBBER SLEEVE |
| 6 | 504054953 | GASKET |
| 7 | 504058567 | EXHAUST PIPE |
| 8 | 99453959 | SCREW |
| 9 | 504088468 | PIPE LEFT |
| 10 | 4800661 | CLIP Ø 75 mm. |
| 11 | 504103435 | GASKET |
| 12 | 504056723 | GASKET |
| 13 | 17284481 | O-RING Ø58,4 MM SP=2,6 MM [from ...] |
| 14 | 17044725 | HEXAGON NUT M8 |
| 15 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
| 16 | 16729434 | STUD M8X25 MM |
| 17 | 504094021 | COVER |
