PPVZ2883X*Q400

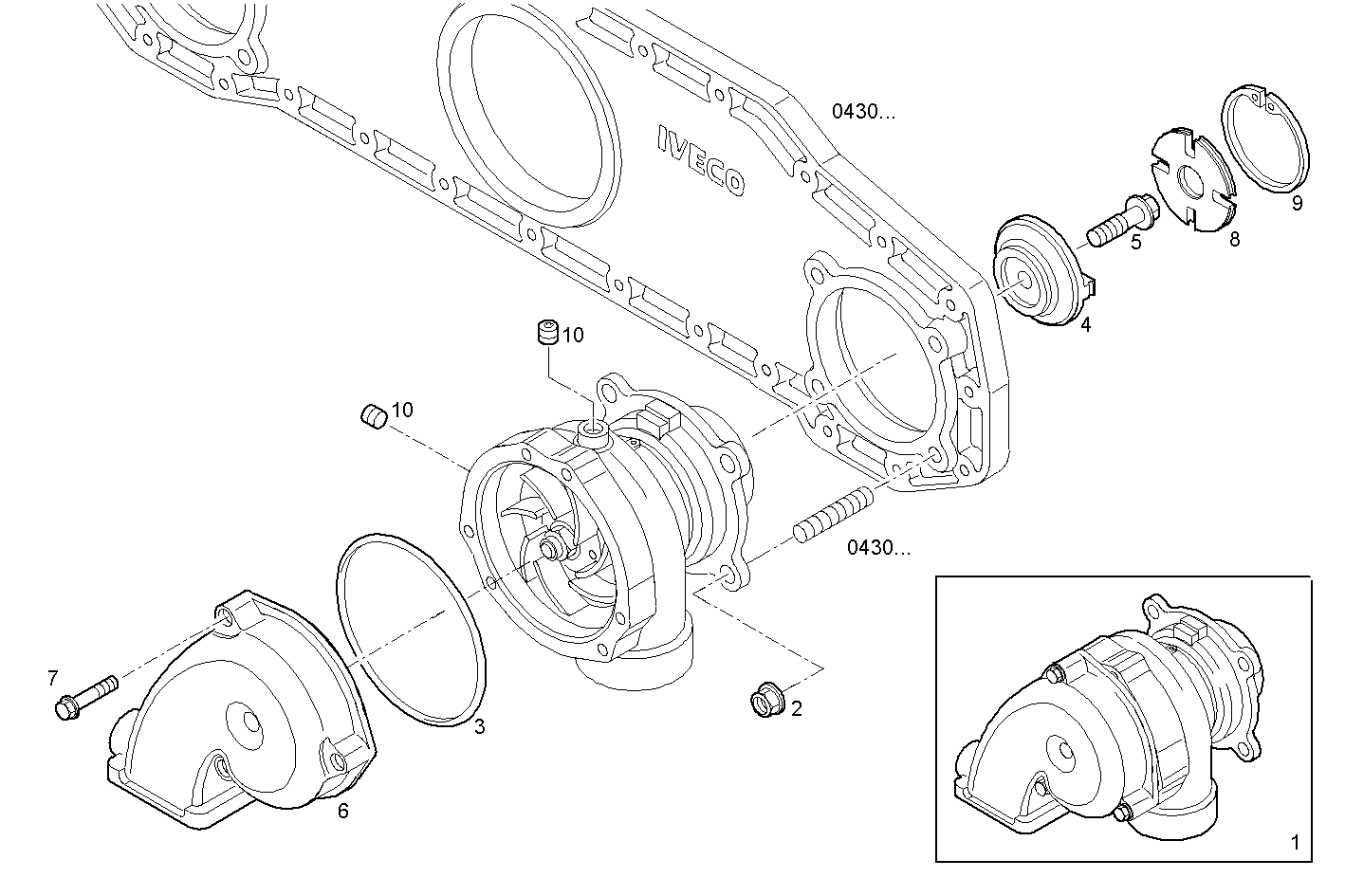

3200.117 AUXILIARY WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504217253 | WATER PUMP ASSY |
| 2 | 17965835 | HEXAGON NUT |
| 3 | 17292781 | O-RING Ø142,50X3,53 MM |
| 4 | 504103434 | FLANGE |
| 5 | 504103480 | SCREW |
| 6 | 4782578 | COVER |
| 7 | 16587724 | HEXAGON BOLT M10X55 MM |
| 8 | 504043231 | FLANGE |
| 9 | 504061484 | SPRING LOCKWASHER |
| 10 | 16997211 | LOCK PLUG M12X1,5 |
