PPVZ2883X*Q400

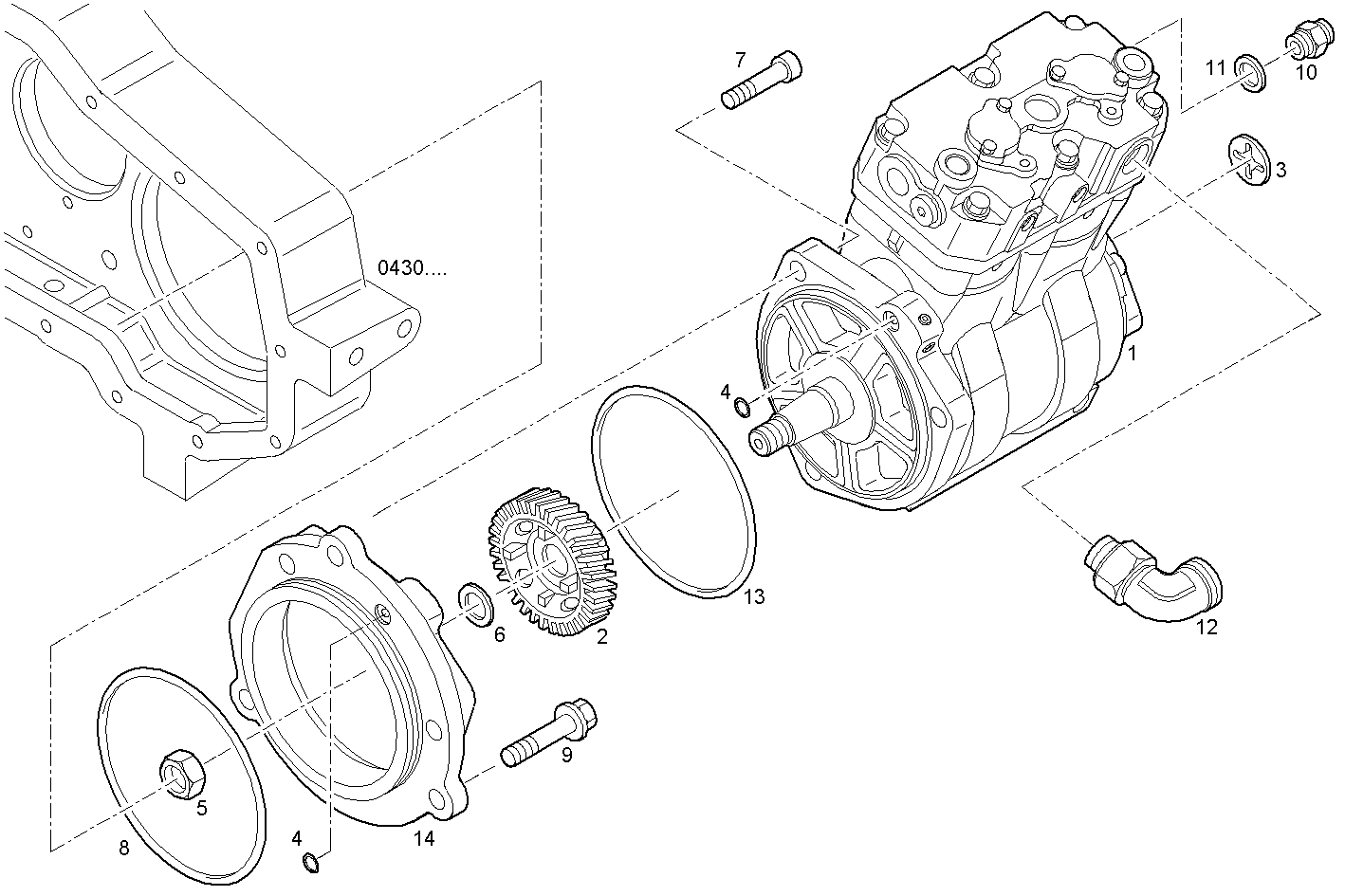

3800.033/01 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 41211340 | AIR COMPRESSOR ASSY |
| 2 | 504039139 | GEAR |
| 3 | 500312023 | FLEXIBLE COUPLING |
| 4 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 5 | 99471892 | HEXAGON NUT |
| 6 | 17095914 | WASHER |
| 7 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
| 8 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 9 | 16588025 | HEXAGON BOLT M12X30 MM |
| 10 | 61599713 | THREADED UNION M26X1,5 |
| 11 | 16508560 | WASHER Ø26X31 MM |
| 12 | 99456380 | ELBOW COUPLING M26X1,5 - M36X2 |
| 13 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 14 | 504080535 | SPACING BAR |
