PPVZ2883X*Q400

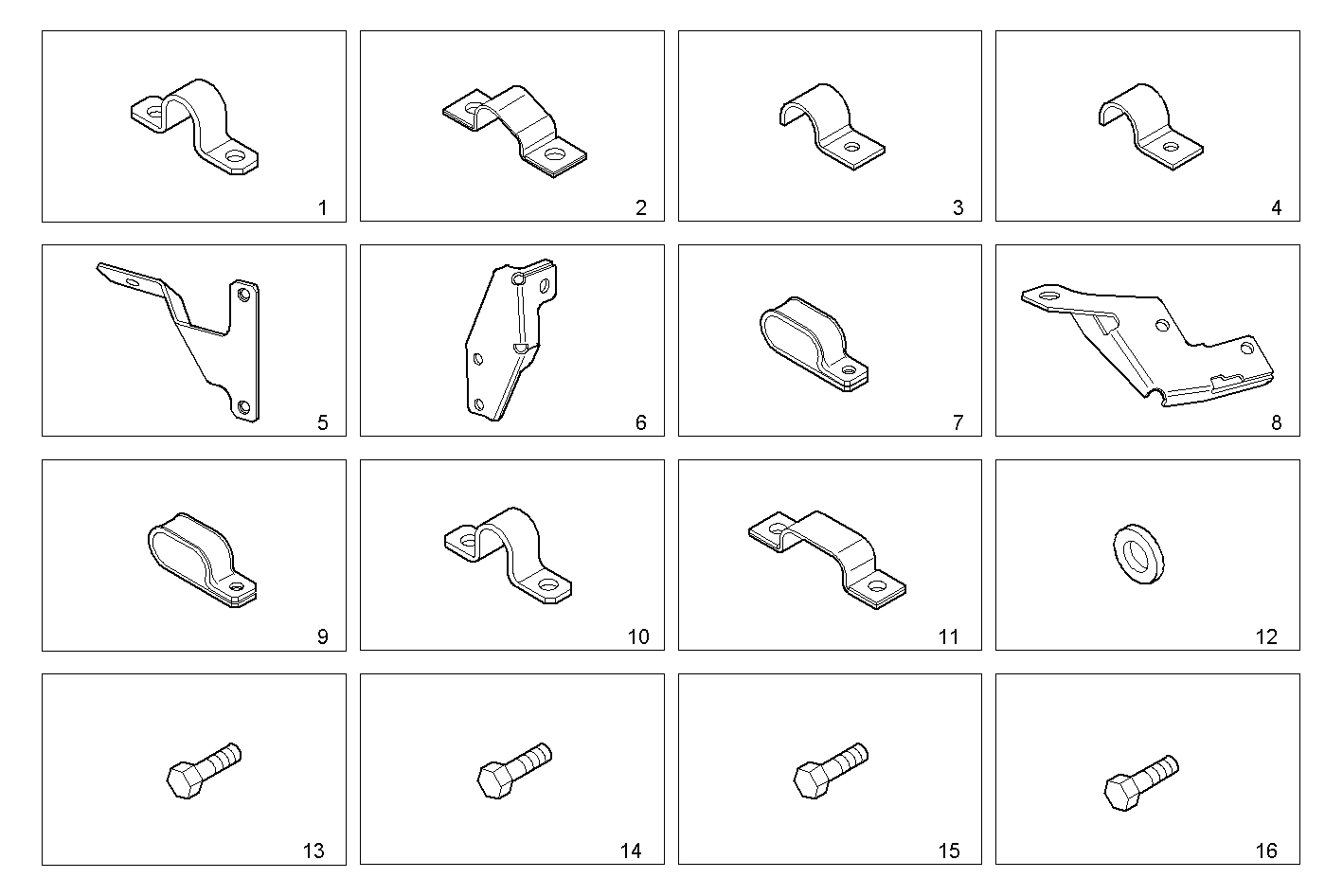

503402.000/03 PNEUMATIC SYSTEM
| Item |
Part number |
Description |
|
1 |
504067375 |
FASTENING BRACKET |
|
2 |
504067382 |
FASTENING BRACKET |
|
3 |
18053701 |
FASTENING BRACKET |
|
4 |
18053901 |
FASTENING BRACKET |
|
5 |
504068535 |
FASTENING BRACKET |
|
6 |
504068536 |
FASTENING BRACKET |
|
7 |
17315492 |
FASTENING BRACKET |
|
8 |
504207804 |
FASTENING BRACKET |
|
9 |
17315792 |
FASTENING BRACKET |
|
10 |
504065992 |
RETAINER |
|
11 |
504067370 |
FASTENING BRACKET |
|
12 |
1708857C |
WASHER �6X12 MM |
|
13 |
16609725 |
HEXAGON BOLT M6X14 MM |
|
14 |
16589825 |
HEXAGON BOLT M16X35 MM |
|
15 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
16 |
16596924 |
HEXAGON BOLT M6X10 MM |
