PPVZ2883X*Q400

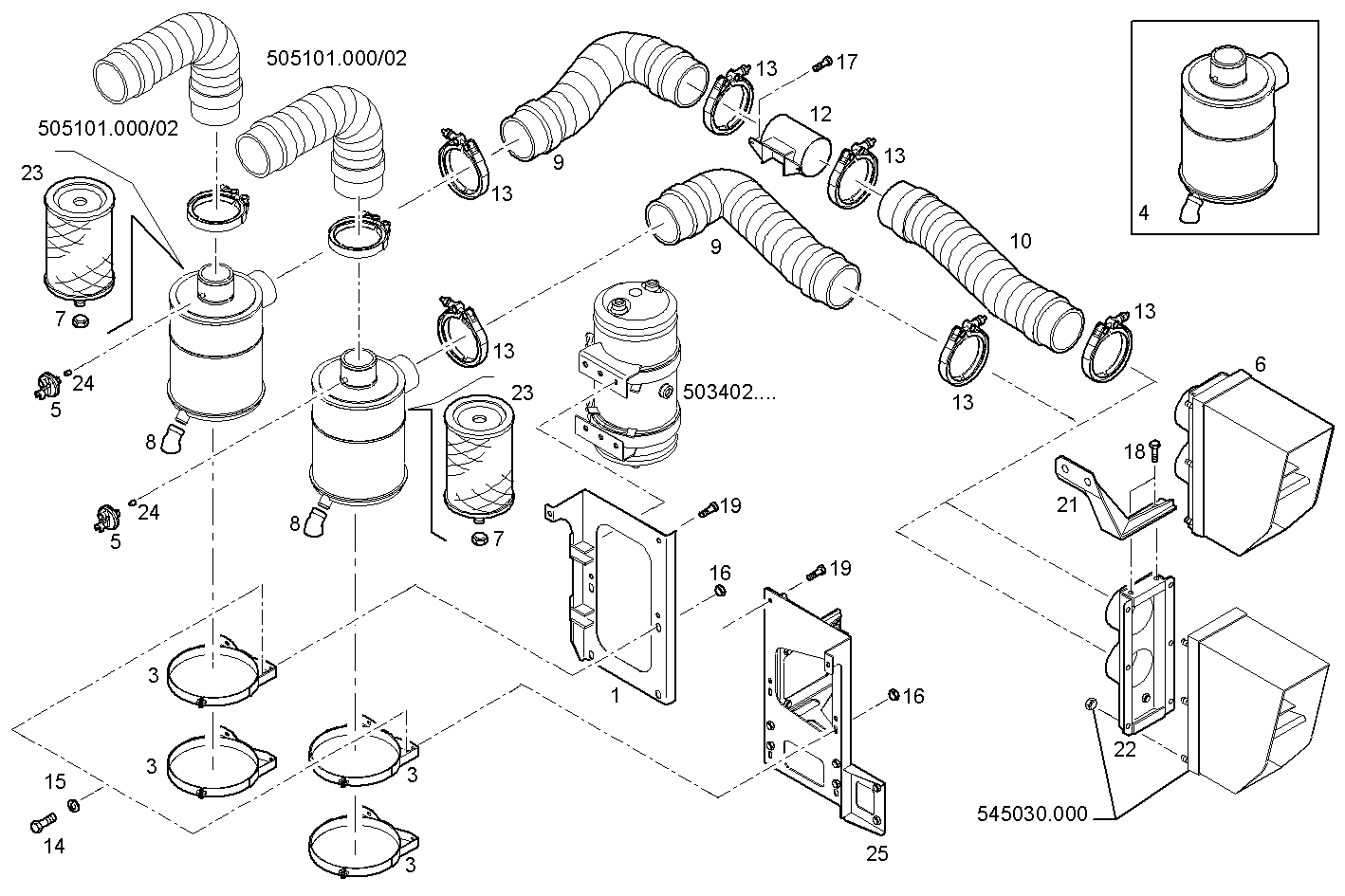

505101.000/01 AIR FILTER AND PIPELINE
| Item |
Part number |
Description |
|
1 |
504055453 |
RETAINER |
|
3 |
504047392 |
CLIP |
|
4 |
504047391 |
AIR CLEANER ASSY |
|
5 |
41221286 |
CHOCKED FILTER INDIC. |
|
7 |
1172482 |
NUT |
|
8 |
41020337 |
VALVE |
|
9 |
504074279 |
AIR PIPE/DUCT |
|
10 |
504088048 |
AIR PIPE/DUCT |
|
12 |
504076912 |
RETAINER |
|
13 |
17765994 |
CLIP Ø150/170 MM |
|
14 |
16677735 |
HEXAGON BOLT M12X25 MM |
|
15 |
16889624 |
WASHER |
|
16 |
16750425 |
HEXAGON NUT M12 |
|
17 |
18137825 |
HEXAGON BOLT M6X16 |
|
18 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
19 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
20 |
16750225 |
HEXAGON NUT M8 |
|
21 |
504086790 |
RETAINER |
|
22 |
504086788 |
AIR HOOD |
|
23 |
2996154 |
AIR FILTER ELEMENT |
|
24 |
4731334 |
FILTER |
|
25 |
504195466 |
RETAINER |
