PPVZ2883X*Q400

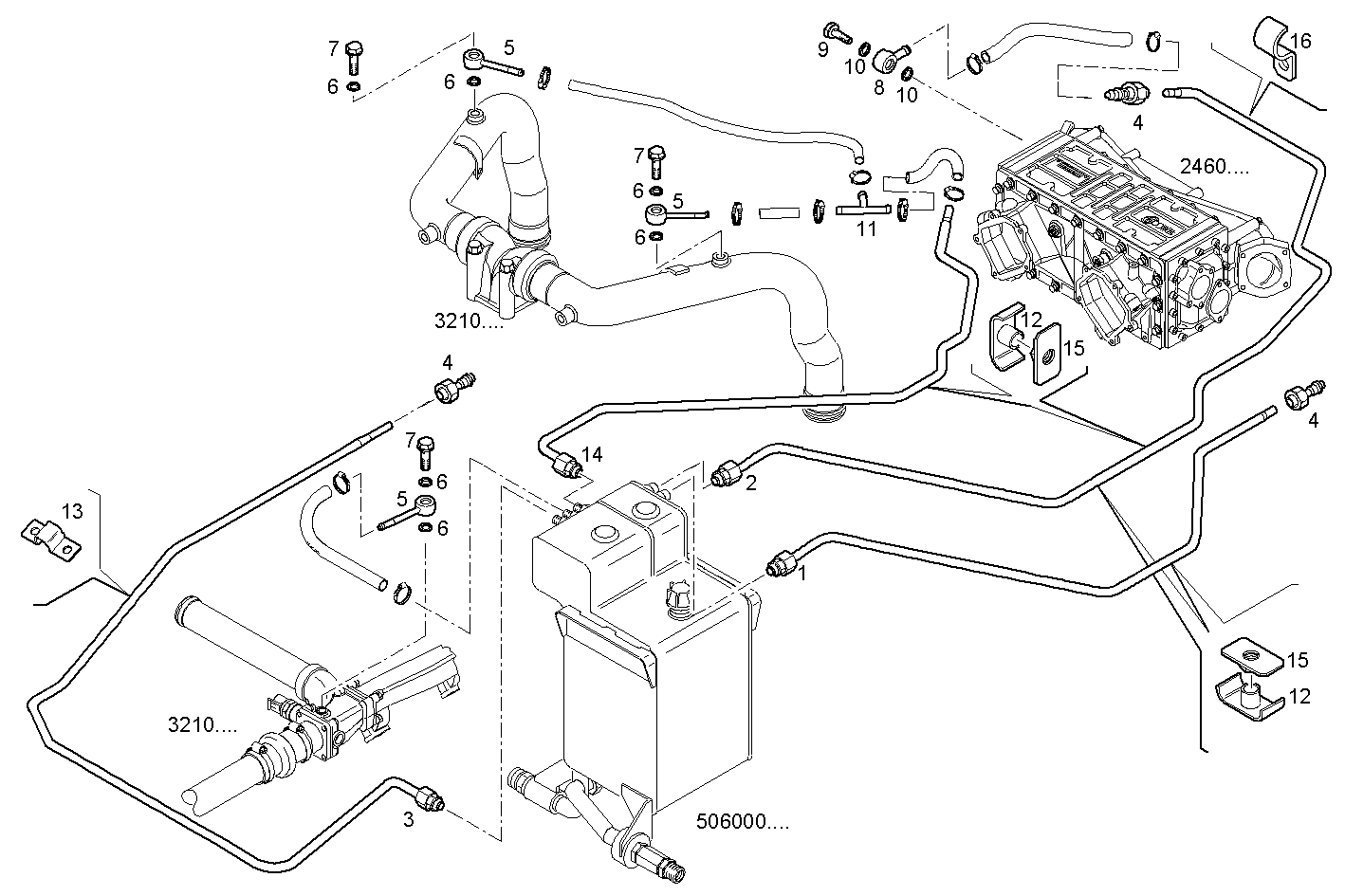

506000.000/04 COOLING SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 504085030 | WATER PIPE |
| 2 | 504085031 | WATER PIPE |
| 3 | 504085033 | WATER PIPE |
| 4 | 504067384 | WATER PIPE |
| 5 | 42030228 | WATER PIPE |
| 6 | 98474306 | WASHER �12X20 MM SP=1,9 MM |
| 7 | 16511215 | SCREW CONNECTOR M12X1,5X30 MM |
| 8 | 98413896 | PIPE SOCKET �8 MM |
| 9 | 504266555 | BANJO BOLT M14X1,5X30 MM |
| 10 | 98474308 | SEAL GASKET �14X22 MM |
| 11 | 99454891 | PIPE |
| 12 | 504067378 | FASTENING BRACKET |
| 13 | 504067375 | FASTENING BRACKET |
| 14 | 504085032 | WATER PIPE |
| 15 | 504086503 | FASTENING BRACKET |
| 16 | 504086499 | FASTENING BRACKET |
