PPVZ2883X*Q400

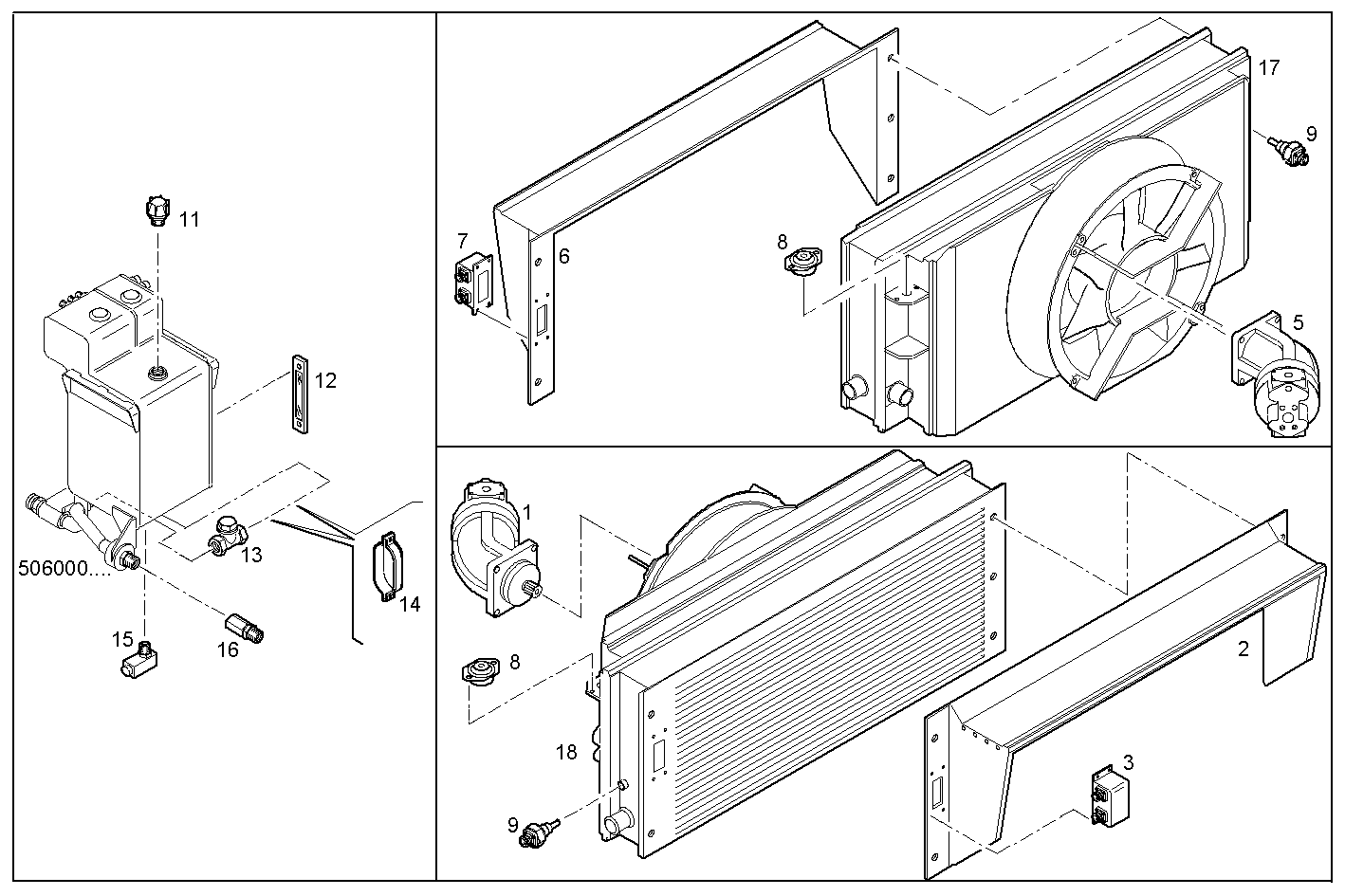

506000.000/05 COOLING SYSTEM - components
| Item | Part number | Description |
|---|---|---|
| 1 | 504067387 | HYDRAULIC PUMP |
| 2 | 504067421 | AIR HOOD |
| 3 | 504067456 | ELECTR.CONTR.UNIT |
| 5 | 504067385 | HYDRAULIC PUMP |
| 7 | 504143898 | ELECTR.CONTR.UNIT |
| 8 | 504067457 | DOWEL |
| 9 | 504067458 | TEMP. TRANSMITTER |
| 11 | 504067473 | VALVE |
| 12 | 504067474 | INDICATOR |
| 13 | 504067514 | VALVE |
| 14 | 504067515 | PROTECTION |
| 15 | 504067516 | SENSOR |
| 16 | 504067517 | PIPE SOCKET |
| 17 | 504094060 | WATER RADIATOR |
| 18 | 504067392 | WATER RADIATOR |
