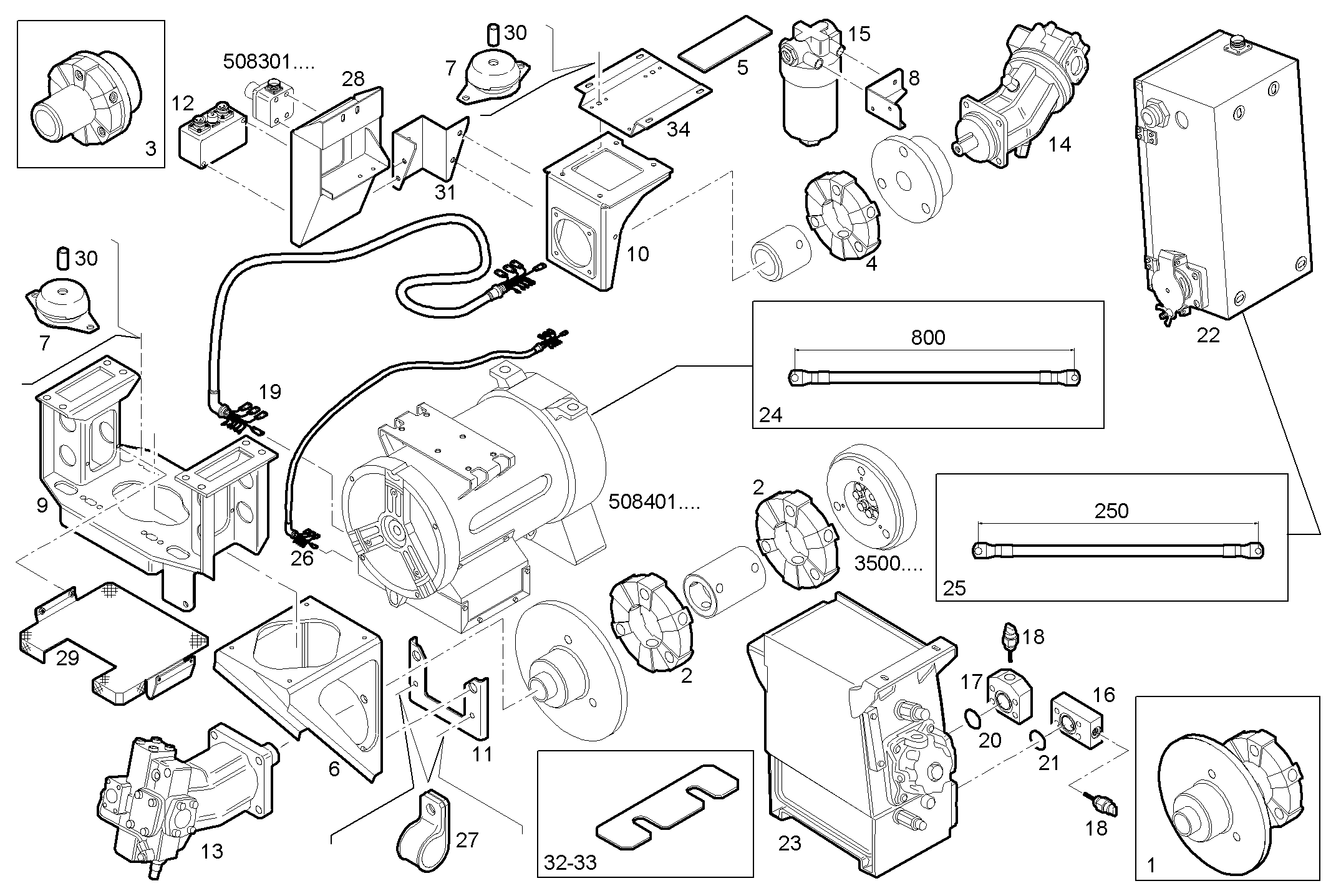

| Item |
Part number |
Description |
|
1 |
504047133 |
FLEXIBLE COUPLING ASSY |
|
2 |
504070096 |
RUBBER PAD |
|
3 |
504128560 |
FLEXIBLE COUPLING |
|
4 |
504126630 |
RUBBER PAD |
|
5 |
504149711 |
INSULATION |
|
6 |
504047445 |
SUPPORT |
|
7 |
504054791 |
RUBBER PAD |
|
8 |
504055452 |
RETAINER |
|
9 |
504055463 |
FASTENING BRACKET |
|
10 |
504113441 |
FASTENING BRACKET |
|
11 |
504074665 |
RETAINER |
|
12 |
504048888 |
ELECTR.CONTR.UNIT |
|
13 |
504047127 |
HYDRAULIC PUMP |
|
14 |
504091079 |
HYDRAULIC PUMP |
|
15 |
504047389 |
OIL FILTER ASSY (SEE PL 788091.000) |
|
16 |
504064469 |
VALVE |
|
17 |
504095249 |
FLANGE |
|
18 |
504068710 |
TRANSMITTER |
|
19 |
504053010 |
WIRE/CABLE |
|
20 |
17289381 |
O-RING Ø36,09 MM SP=3,53 MM |
|
21 |
17288281 |
O-RING Ø18,64X3,53 MM |
|
22 |
504050393 |
CONTROL BOARD ASSY ASSY (SEE PL 767095.000) |
|
23 |
504135771 |
TANK ASSY (SEE PL 788001.000) |
|
24 |
504064400 |
WIRE/CABLE |
|
25 |
504064401 |
WIRE/CABLE |
|
26 |
504071359 |
WIRE/CABLE |
|
27 |
504097851 |
FASTENING BRACKET |
|
28 |
504086116 |
RETAINER |
|
29 |
504079687 |
PROTECTION |
|
30 |
504090173 |
SPACING BAR |
|
31 |
504086117 |
RETAINER |
|
32 |
504107830 |
FASTENING BRACKET |
|
33 |
504107425 |
FASTENING BRACKET |
|
34 |
504113448 |
FASTENING BRACKET |
