PPVZ2883X*Q400

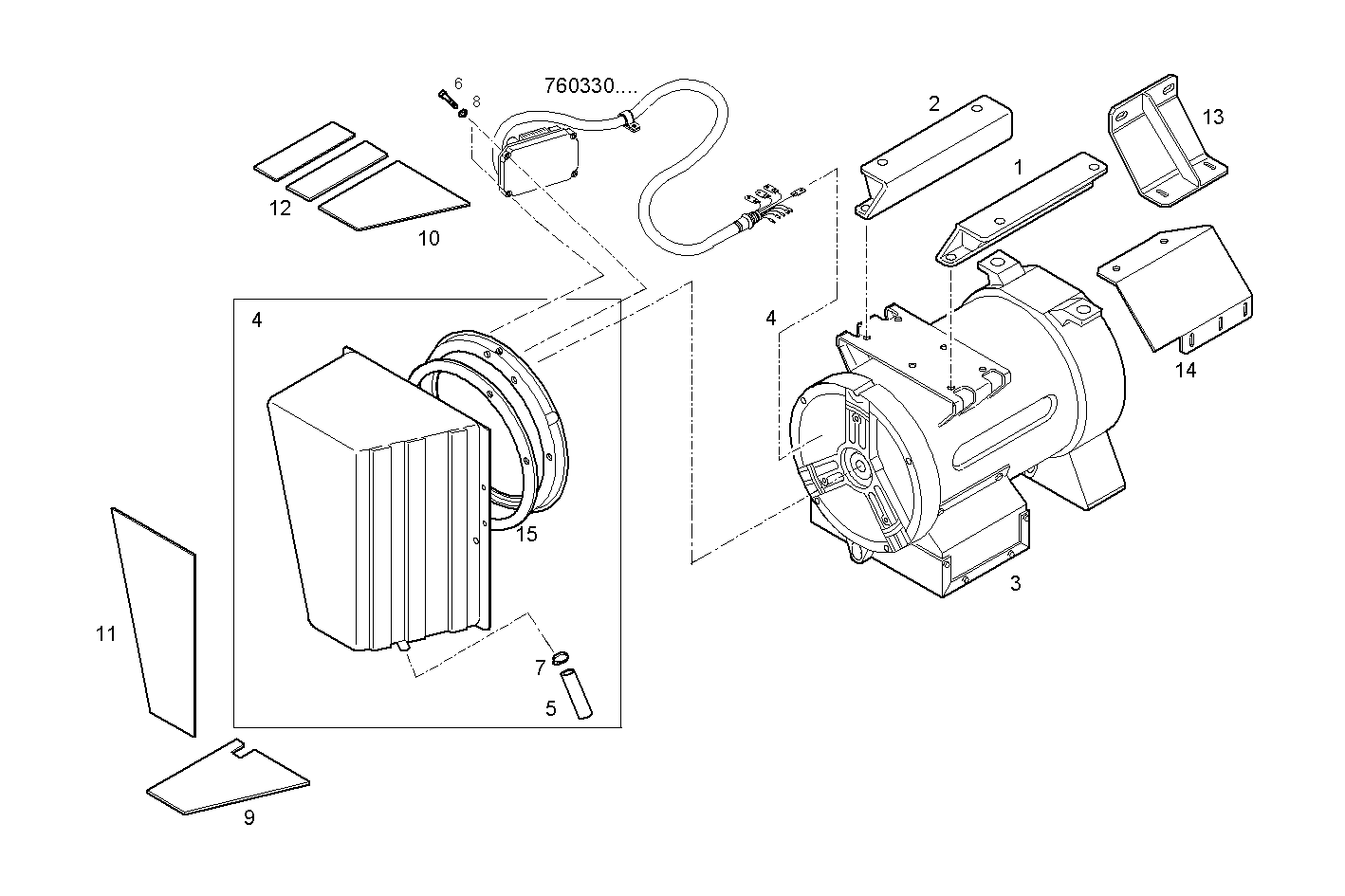

508401.000/03 HYDRAULIC SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 504091087 | RETAINER LEFT |
| 2 | 504091088 | RETAINER RIGHT |
| 3 | 504128478 | ELECTRIC MACHINE ASSY (SEE PL 760330.000) |
| 4 | 504091510 | AIR HOOD |
| 5 | 93817561 | EXHAUST VALVE |
| 6 | 16690124 | HEXAGON BOLT |
| 7 | 18088392 | CLIP Ø16/25 MM |
| 8 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 9 | 504143371 | INSULATION |
| 10 | 504143372 | INSULATION |
| 11 | 504143373 | INSULATION |
| 12 | 504142721 | INSULATION |
| 13 | 504172087 | RETAINER |
| 14 | 504172086 | RETAINER |
| 15 | 504130758 | GASKET |
