PPVZ2883X*Q400

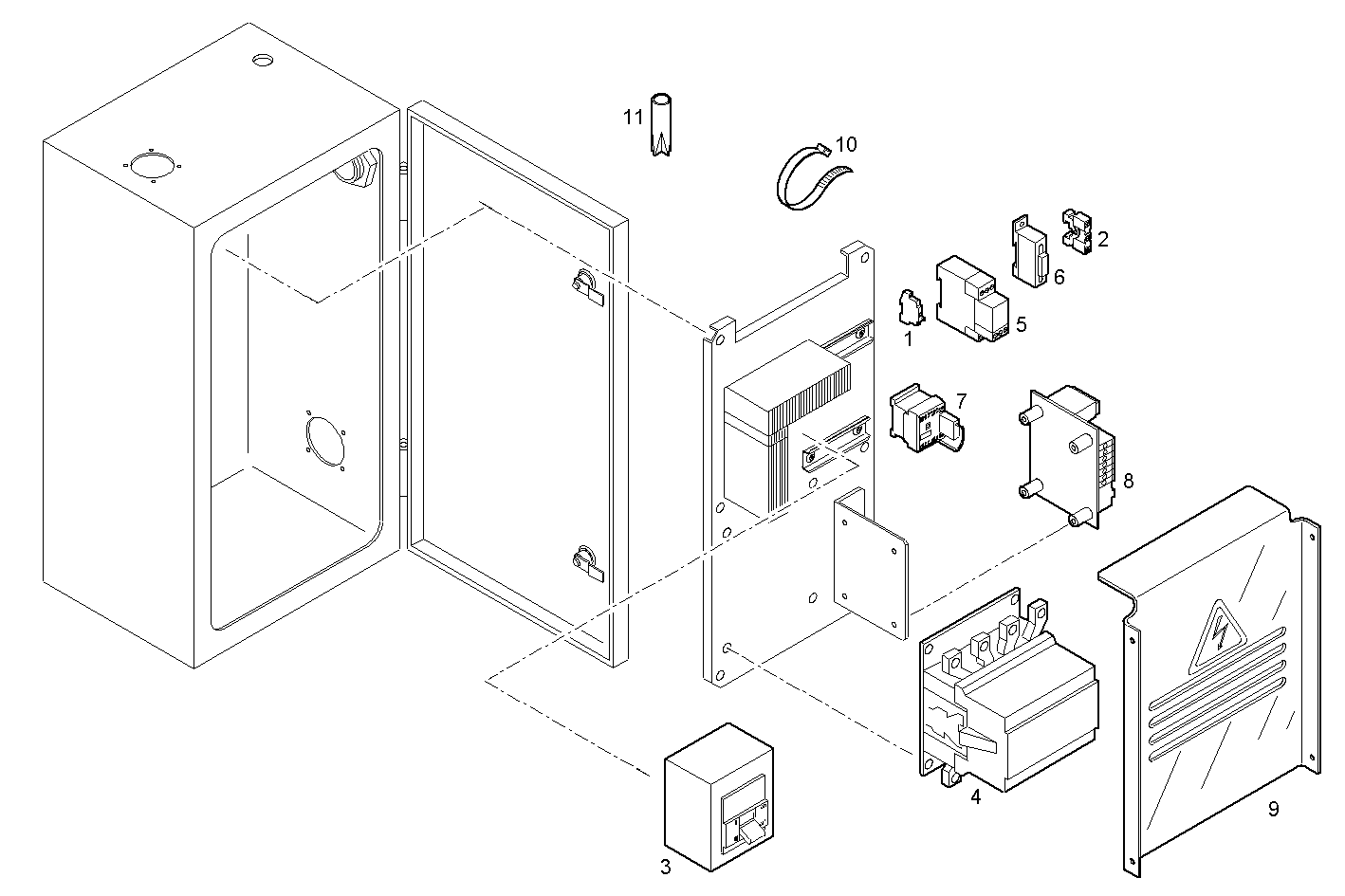

767095.000 AUTOMATIC CONTROL PANEL (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 504081954 | SWITCH |
| 2 | 504082541 | SWITCH |
| 3 | 504081961 | SWITCH |
| 4 | 504082542 | SWITCH |
| 5 | 504082494 | RELAY |
| 6 | 504081985 | VOLTAGE REDUCER |
| 7 | 504082503 | RELAY |
| 8 | 504083442 | ELECTRONIC CARD |
| 9 | 504082546 | COVER |
| 10 | 18088392 | CLIP Ø16/25 MM |
| 11 | 93817561 | EXHAUST VALVE |
