PPVZ2883X*Q440

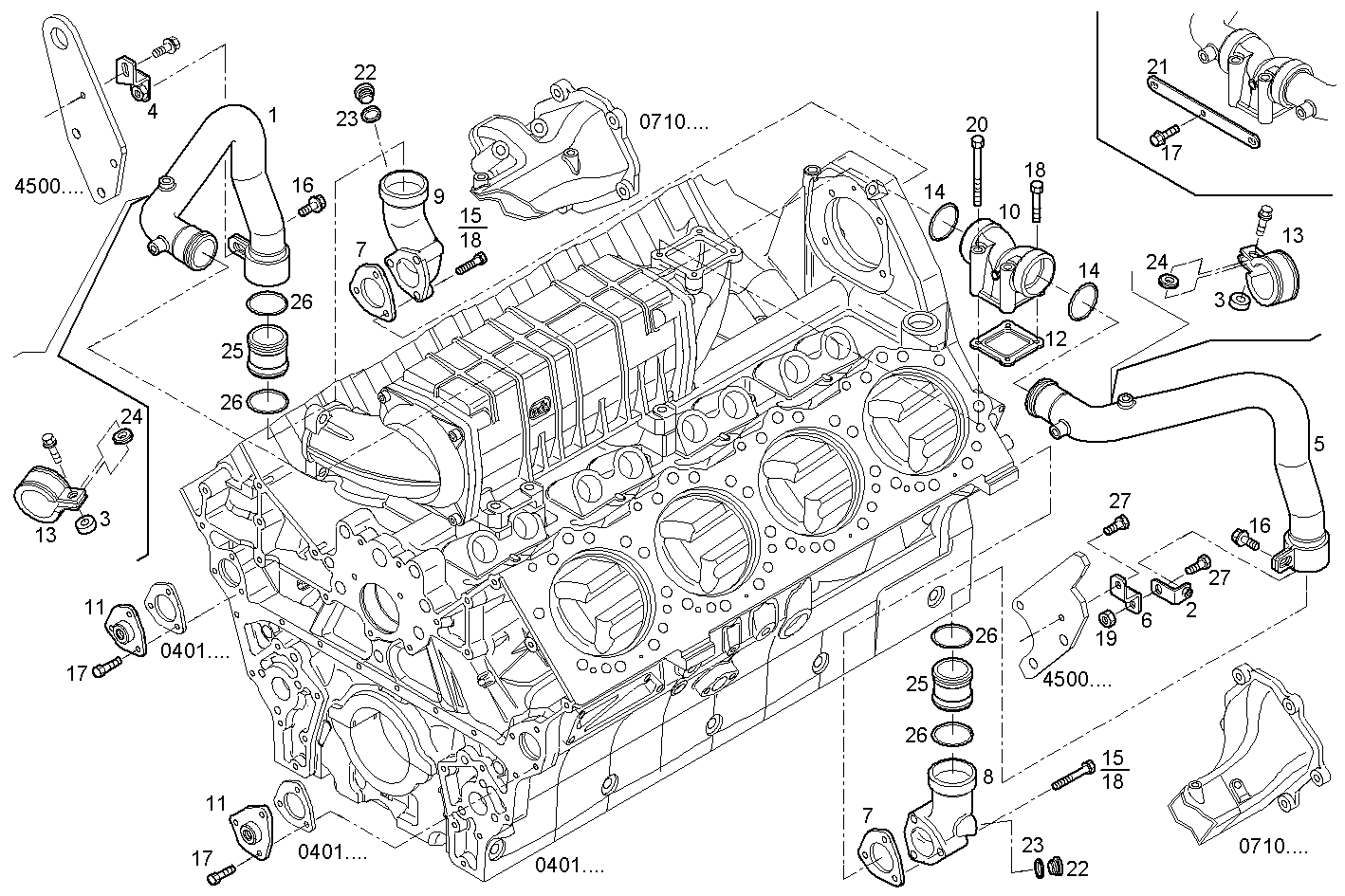

3210.349 WATER LINES - water outlet from oil heat exchanger

Iveco/FPT WATER LINES

Item Part number Description
1 504171749 WATER PIPE
2 504173039 SUPPORT
3 7302112 SPACER SP=7 MM
4 504173051 SUPPORT
5 504171714 WATER PIPE
6 504093923 RETAINER
7 504045914 FLAT ENGINE GASKET
8 504059916 WATER PIPE
9 504059917 WATER PIPE
10 504063275 WATER PIPE
11 504057355 COVER
12 504063703 FLAT ENGINE GASKET
13 504183917 FASTENING BRACKET
14 14471181 O-RING Ø46,99x5,33 MM
15 16592425 HEXAGON BOLT M8X65 MM
16 16673835 HEXAGON BOLT M8X30 MM
17 16586225 HEXAGON BOLT M8X1,25X16 MM
18 16586725 HEXAGON BOLT M8X1.25X40 MM
19 17964125 HEXAGON NUT M8
20 16588225 HEXAGON BOLT M12X40 MM
21 504074924 FLANGE
22 16993911 LOCK PLUG M14X1,5
23 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
24 504184203 WASHER
25 504138011 WATER PIPE
27 16673735 HEXAGON BOLT M8X25 MM
