PPVZ2883X*Q440

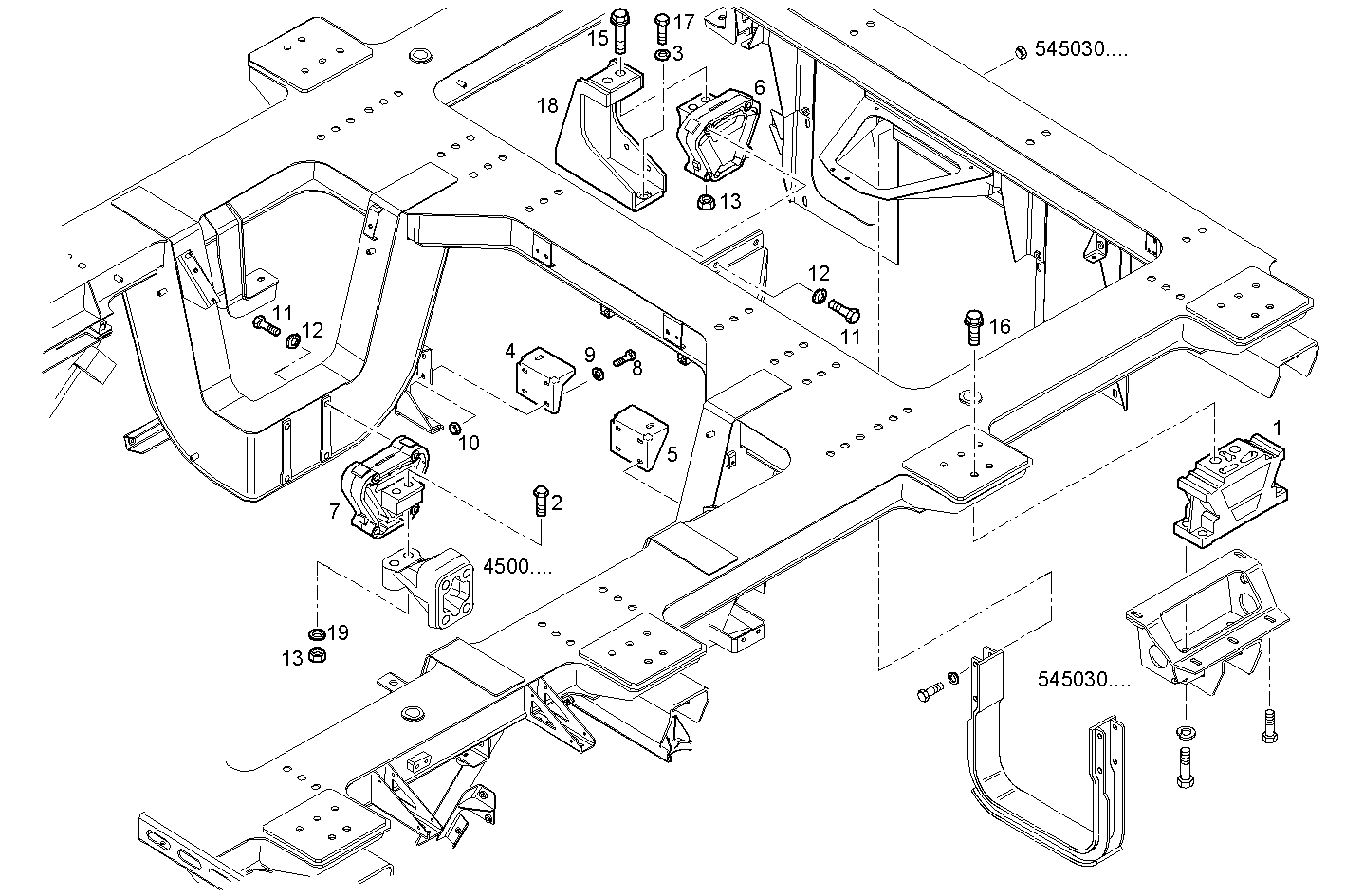

500108.000/02 FRAME

Iveco/FPT FRAME

Item Part number Description
1 504126877 RUBBER PAD
2 16684034 HEXAGON BOLT M16X140 MM
3 17092174 SPRING WASHER Ø16X32X3,4
4 504062797 FASTENING BRACKET RIGHT
5 504062800 FASTENING BRACKET LEFT
6 41225154 ENGINE SILENTBLOCK FRONT
7 41219895 DOWEL
8 16673735 HEXAGON BOLT M8X25 MM
9 17089974 SPRING WASHER Ø8X22X2,4MM
10 17042531 HEXAGON NUT M8
11 16632934 HEXAGON BOLT M14X70 MM
12 17091774 SPRING WASHER Ø14X27 SP=3,8 MM
13 16750635 HEXAGON NUT
14 17091074 WASHER Ø12X24X2,8 MM
15 16683635 HEXAGON BOLT
16 16934835 HEXAGON BOLT M16X1,5X35 MM
17 16937035 HEXAGON BOLT
18 504055464 SUPPORT
19 17093924 WASHER Ø16 MM
