PPVZ2883X*Q440

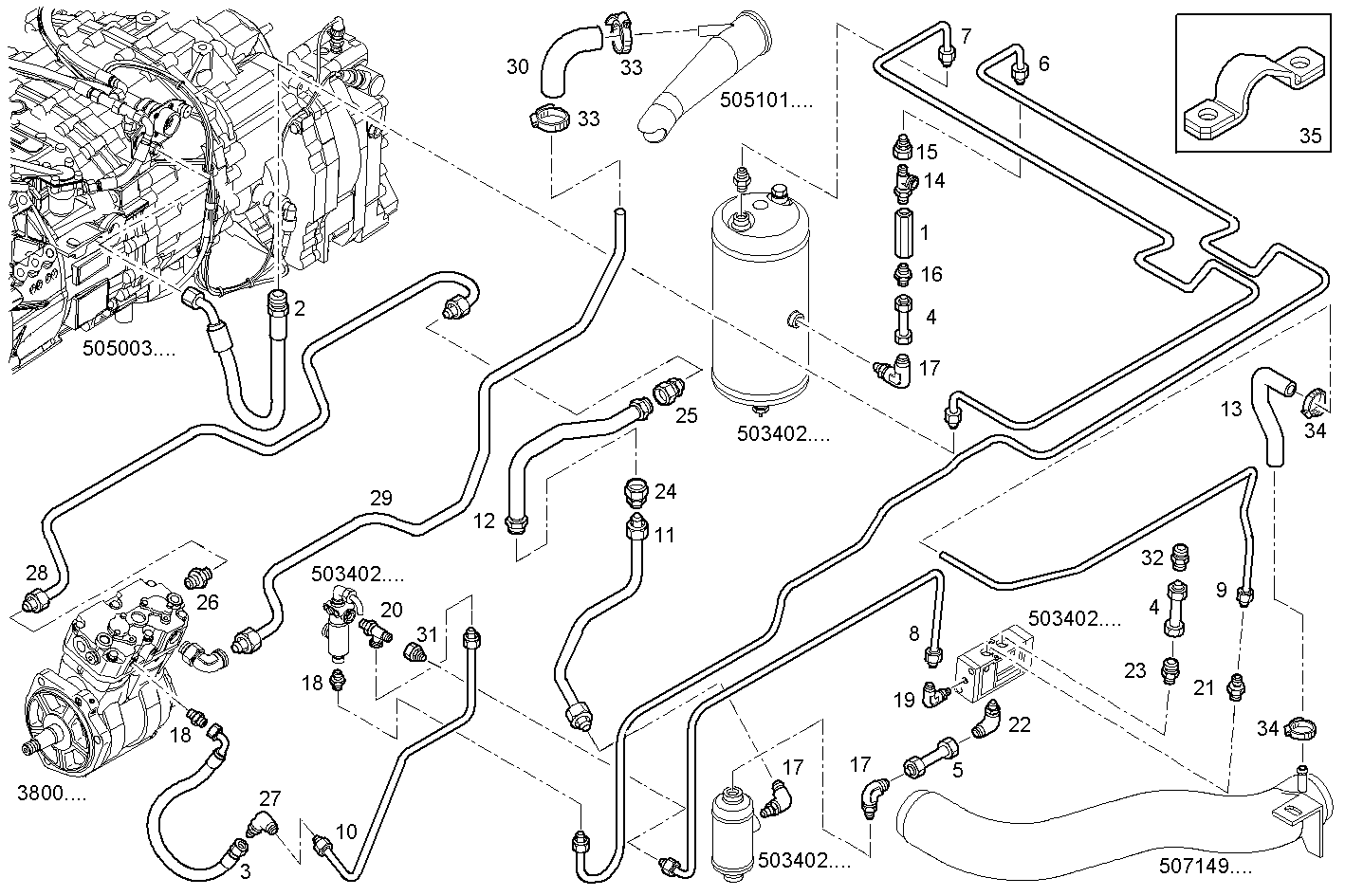

503402.000/02 PNEUMATIC SYSTEM

Iveco/FPT PNEUMATIC SYSTEM

Item Part number Description
1 4700995 VALVE
2 504061054 HOSE
3 504061055 HOSE
4 504063344 PIPE
5 504063345 PIPE
6 504087887 PIPE
7 504064391 PIPE
8 504087888 PIPE
9 504064393 PIPE
10 504087889 PIPE
11 504064396 PIPE
12 504061044 HOSE
13 504136697 RUBBER SLEEVE
14 504066531 T-COUPLING
15 504066536 THREADED UNION
16 41031573 THREADED UNION M22X1.5/M26X1,5
17 98418645 ELBOW COUPLING
18 41034988 THREADED UNION M12X1,5/M14X1,5
19 504066537 SWIVEL COUPLING
20 504066538 T-COUPLING
21 504066539 THREADED UNION
22 504066540 ELBOW COUPLING
23 504066541 THREADED UNION
24 504066542 THREADED UNION
25 504066543 THREADED UNION
26 41031577 THREADED UNION M26X1,5/M30X2,0
27 504066544 ELBOW COUPLING
28 504074669 PIPE
29 504090779 SUCTION LINE
30 504074355 AIR PIPE/DUCT
31 504075533 THREADED UNION
32 16502014 THREADED UNION
33 18088692 HOSE CLIP m32-50
34 18088392 CLIP Ø16/25 MM
35 504067382 FASTENING BRACKET
