PPVZ2883X*Q440

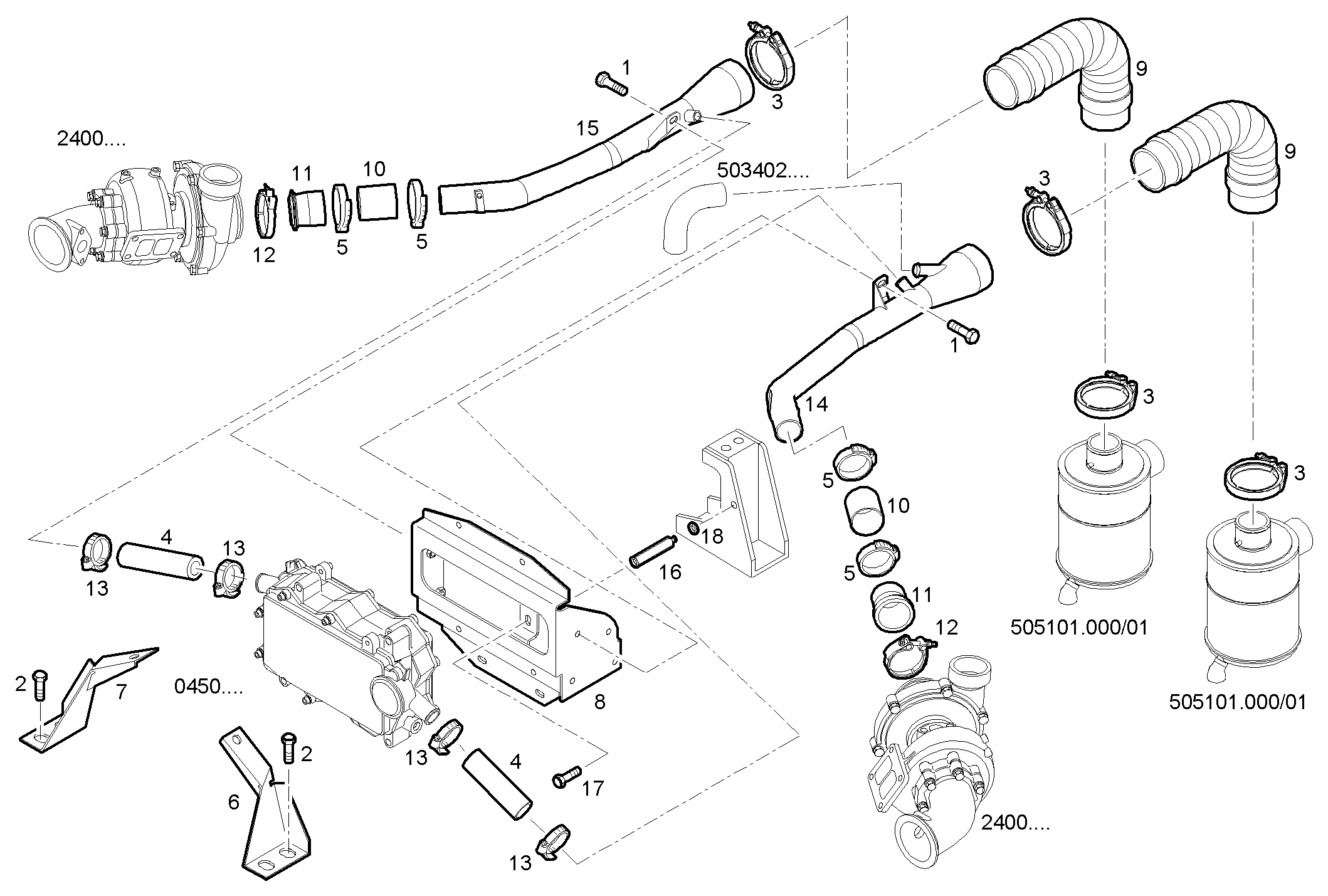

505101.000/02 AIR FILTER AND PIPELINE
| Item |
Part number |
Description |
|
1 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
2 |
16589825 |
HEXAGON BOLT M16X35 MM |
|
3 |
17765994 |
CLIP Ø150/170 MM |
|
4 |
504090770 |
AIR PIPE/DUCT |
|
5 |
17765394 |
CLIP Ø90/110 MM |
|
6 |
504074307 |
RETAINER LEFT |
|
7 |
504074288 |
RETAINER RIGHT |
|
8 |
504090651 |
RETAINER |
|
9 |
504090682 |
AIR PIPE/DUCT |
|
10 |
42089737 |
RUBBER SLEEVE |
|
11 |
504073915 |
PIPE SOCKET |
|
12 |
504071351 |
CLIP |
|
13 |
17764694 |
CLIP Ø25/40 MM |
|
14 |
504090649 |
AIR PIPE/DUCT |
|
15 |
504090650 |
AIR PIPE/DUCT |
|
16 |
504049505 |
SPACING BAR |
|
17 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
18 |
16890104 |
WASHER |
