PPVZ2883X*Q440

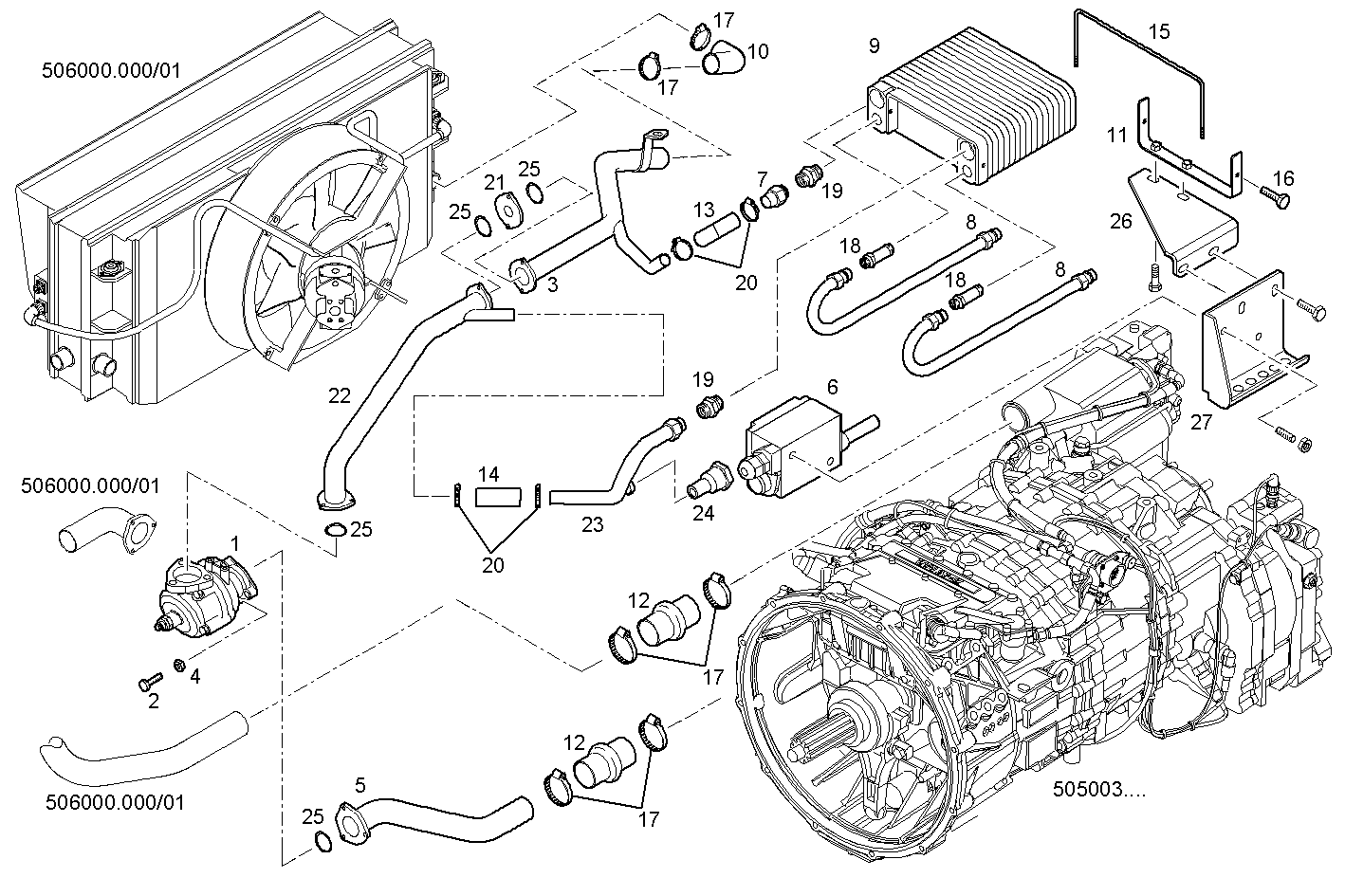

506000.000/02 COOLING SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 504254852 | THERMOSTAT |
| 2 | 16628434 | HEXAGON BOLT |
| 3 | 504090647 | WATER PIPE |
| 4 | 16750335 | HEXAGON NUT |
| 5 | 504060006 | WATER PIPE |
| 6 | 504076962 | SENSOR |
| 7 | 504060121 | WATER PIPE |
| 8 | 504090646 | WATER PIPE |
| 9 | 504066120 | HEAT EXCHANGER |
| 10 | 504090634 | WATER HOSE |
| 11 | 504090765 | FASTENING BRACKET |
| 12 | 93165331 | WATER HOSE Ø60 MM |
| 13 | 97105043 | WATER HOSE |
| 14 | 504090764 | WATER HOSE |
| 15 | 504063823 | TIE ROD |
| 16 | 18138424 | HEXAGON BOLT M8X20 MM |
| 17 | 41042201 | CLIP |
| 18 | 504085034 | PIPE SOCKET |
| 19 | 504071219 | THREADED UNION |
| 20 | 18088192 | CLIP m10-16 |
| 21 | 504066720 | SHUTTER |
| 22 | 504090875 | WATER PIPE |
| 23 | 504090643 | WATER PIPE |
| 24 | 504066723 | CONNECTOR |
| 25 | 17285181 | O-RING Ø69,52 MM SP=2,62 MM |
| 26 | 504080896 | FASTENING BRACKET |
| 27 | 504090648 | FASTENING BRACKET |
