PPVZ2883X*Q440

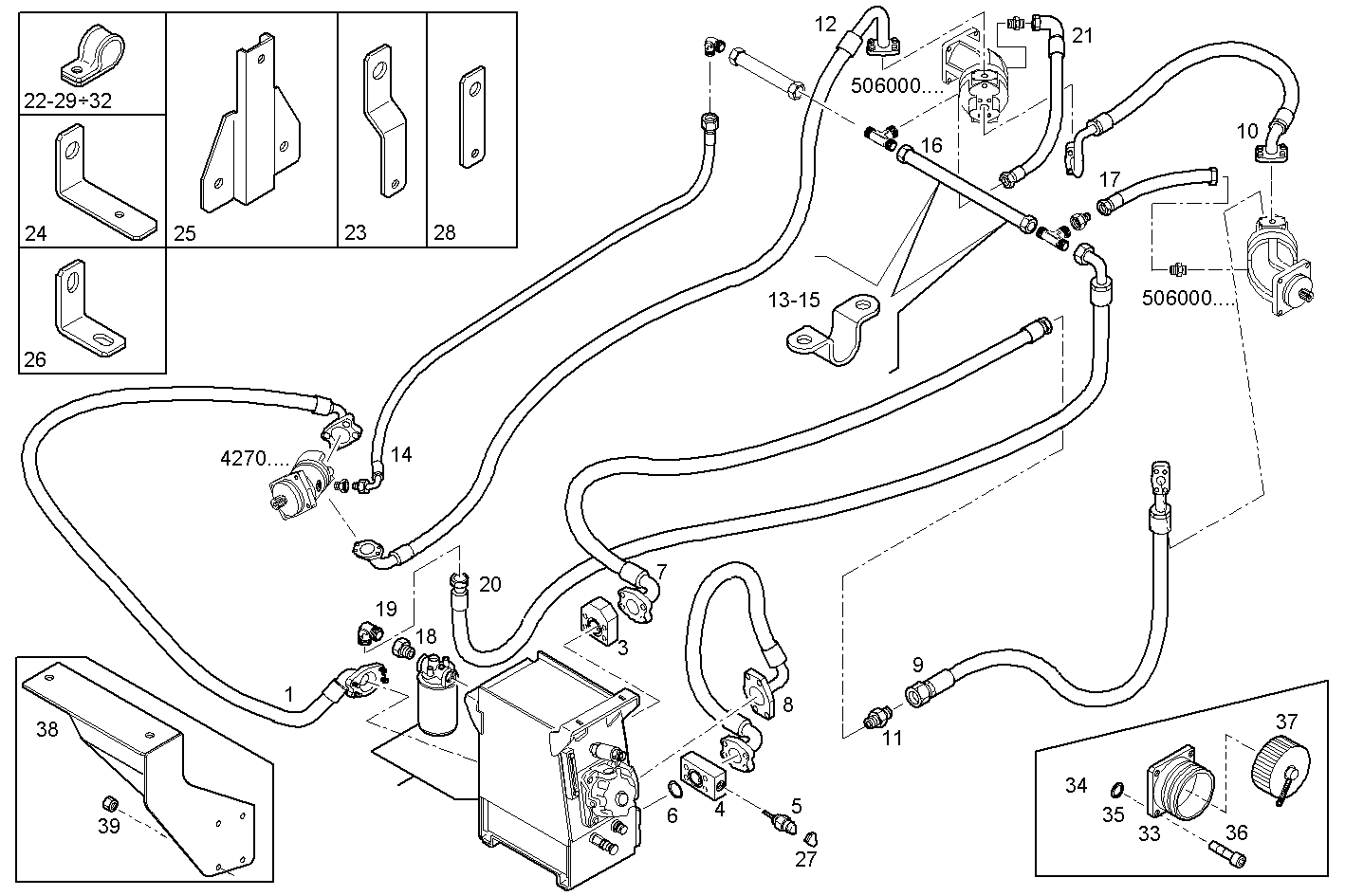

508401.001 HYDRAULIC SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 504075824 | HOSE |
| 2 | 504047129 | TANK ASSY (SEE PL 788001.001) |
| 3 | 504075007 | PLATE |
| 4 | 504064469 | VALVE |
| 5 | 504068710 | TRANSMITTER |
| 6 | 17288281 | O-RING Ø18,64X3,53 MM |
| 7 | 504075793 | HOSE |
| 8 | 504075794 | HOSE |
| 9 | 504070917 | HOSE |
| 10 | 504070918 | HOSE |
| 11 | 16527611 | THREADED UNION |
| 12 | 504070921 | HOSE |
| 13 | 504065992 | RETAINER |
| 14 | 504070923 | HOSE |
| 15 | 504065599 | RETAINER |
| 16 | 504077478 | HOSE |
| 17 | 504070926 | HOSE |
| 18 | 504077408 | THREADED UNION |
| 19 | 16581511 | ELBOW COUPLING |
| 20 | 504075796 | HOSE |
| 21 | 504070922 | HOSE |
| 22 | 504074086 | FASTENING BRACKET |
| 23 | 504087117 | RETAINER |
| 24 | 504087116 | RETAINER |
| 25 | 504056706 | RETAINER |
| 26 | 504063139 | SUPPORT |
| 27 | 504098174 | CONNECTION |
| 28 | 504083441 | RETAINER |
| 29 | 504097851 | FASTENING BRACKET |
| 30 | 504097850 | FASTENING BRACKET |
| 31 | 504097852 | FASTENING BRACKET |
| 32 | 504097925 | FASTENING BRACKET |
| 33 | 504215584 | GROMMET |
| 34 | 17037521 | NUT M3 |
| 35 | 17094104 | WASHER Ø3X7 MM |
| 36 | 17029514 | CYLIND-HEAD SCREW |
| 37 | 504081979 | PLUG |
| 38 | 504086118 | RETAINER |
| 39 | 16750335 | HEXAGON NUT |
