PU7450Si10.05A100

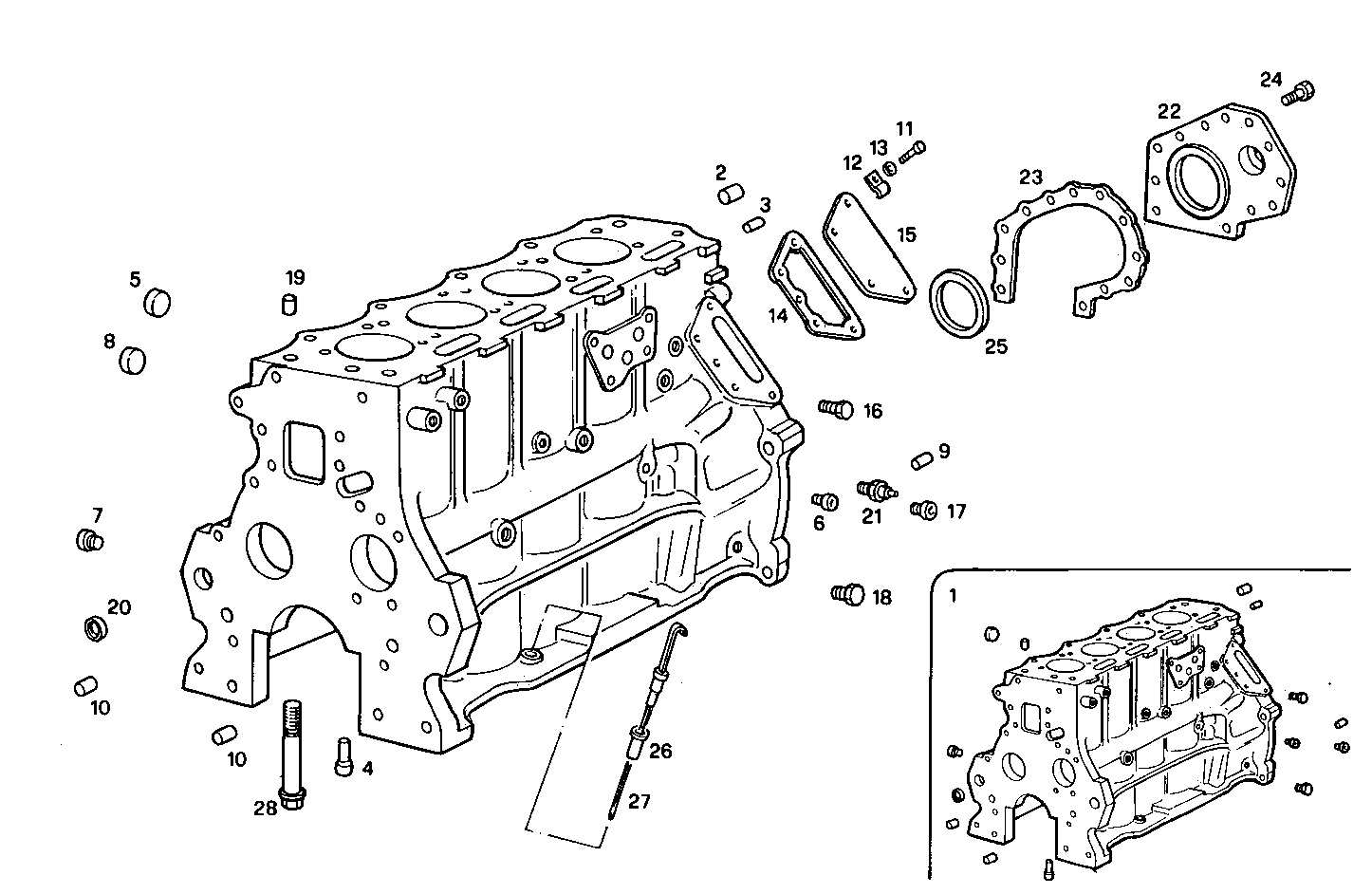

0400.083 CRANKCASE
| Item |
Part number |
Description |
|
1 |
87840861 |
CRANKCASE ASSY |
|
2 |
83957025 |
PLUG |
|
3 |
83956680 |
DOWEL PIN |
|
4 |
81876966 |
OIL NOZZLE |
|
5 |
83957023 |
PLUG |
|
6 |
83984174 |
PLUG |
|
7 |
83926973 |
PLUG |
|
8 |
83957022 |
PLUG |
|
9 |
81826638 |
DOWEL PIN |
|
10 |
81808472 |
DOWEL PIN |
|
11 |
83949104 |
SCREW |
|
12 |
83976853 |
RETAINER |
|
13 |
81821697 |
WASHER |
|
14 |
87800731 |
GASKET |
|
15 |
82856813 |
COVER |
|
16 |
87800929 |
PLUG |
|
17 |
83984176 |
PLUG |
|
18 |
83958593 |
PLUG |
|
19 |
83960218 |
DOWEL PIN |
|
20 |
83956679 |
PLUG |
|
21 |
81873524 |
TRANSMITTER |
|
22 |
81876599 |
PLATE |
|
23 |
87800887 |
GASKET |
|
24 |
81876604 |
SCREW |
|
25 |
83955247 |
WASHER |
|
26 |
83943981 |
ROD GUIDE |
|
27 |
83982497 |
OIL DIPSTICK |
|
28 |
82001688 |
SCREW |
