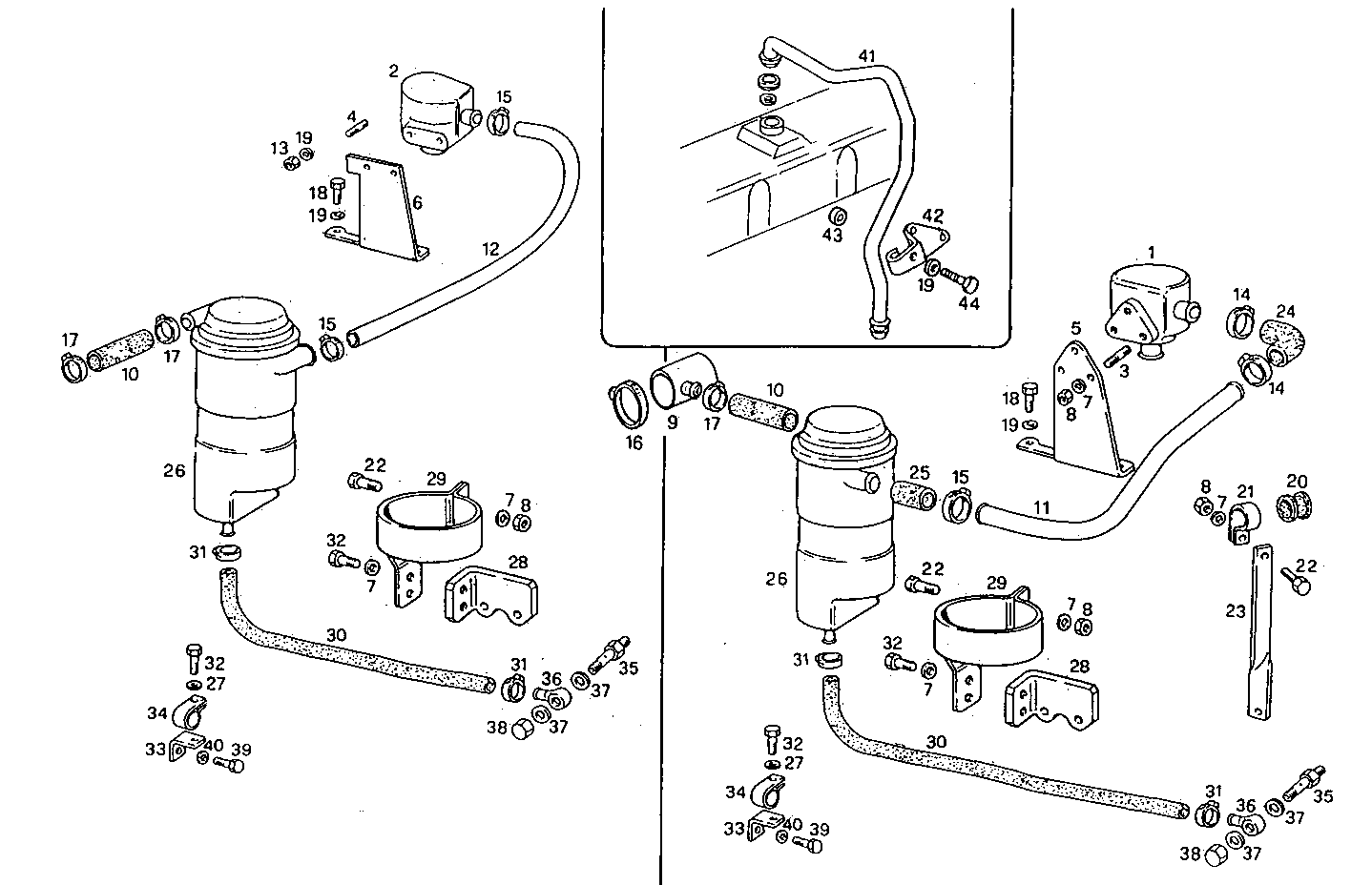

| Item |
Part number |
Description |
|
1 |
8014172 |
BREATHER [up to 09-93] |
|
2 |
8016815 |
BREATHER [from 09-93] |
|
3 |
16279224 |
STUD |
|
4 |
16731124 |
STUD M10X20 |
|
5 |
8014173 |
RETAINER [up to 09-93] |
|
6 |
8016833 |
RETAINER [from 09-93] |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
17037931 |
HEXAGON NUT M8X1,25 |
|
9 |
8015223 |
RUBBER SLEEVE |
|
10 |
8108782 |
RUBBER SLEEVE |
|
11 |
8015273 |
AIR PIPE/DUCT |
|
12 |
8016935 |
AIR HOSE |
|
13 |
17038121 |
HEXAGON NUT M10 |
|
14 |
17764791 |
CLIP Ø32/50 MM |
|
15 |
17764691 |
CLIP Ø25/40 MM |
|
16 |
17765091 |
CLIP Ø60/80 MM |
|
17 |
17764592 |
CLIP Ø20/32 MM |
|
18 |
8015185 |
SCREW |
|
19 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
20 |
4747140 |
RUBBER PAD |
|
21 |
4810595 |
FASTENING BRACKET |
|
22 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
23 |
8114208 |
RETAINER [up to 09-93] |
|
24 |
61319112 |
RUBBER SLEEVE [up to 09-93] |
|
25 |
8009117 |
RUBBER SLEEVE |
|
26 |
7303441 |
BREATHER [up to 03-97] |
|
27 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
28 |
8015272 |
RETAINER |
|
29 |
4860370 |
SUPPORT [up to 03-97] |
|
30 |
8015310 |
OIL HOSE |
|
31 |
17764491 |
CLIP Ø16/25 MM |
|
32 |
16605424 |
SCREW M8X16 MM (8.8) |
|
33 |
8110294 |
RETAINER |
|
34 |
17316990 |
LOCK/YOKE |
|
35 |
8015162 |
PIPE SOCKET |
|
36 |
98405552 |
PIPE SOCKET |
|
37 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
38 |
10182817 |
LOCK PLUG |
|
39 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
40 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
41 |
82854246 |
AIR PIPE/DUCT [from 05-96] |
|
42 |
83991667 |
RETAINER [from 05-96] |
|
43 |
8109544 |
SPACING BAR [from 05-96] |
|
44 |
8014502 |
SCREW |
