PU7450Si10.05A100

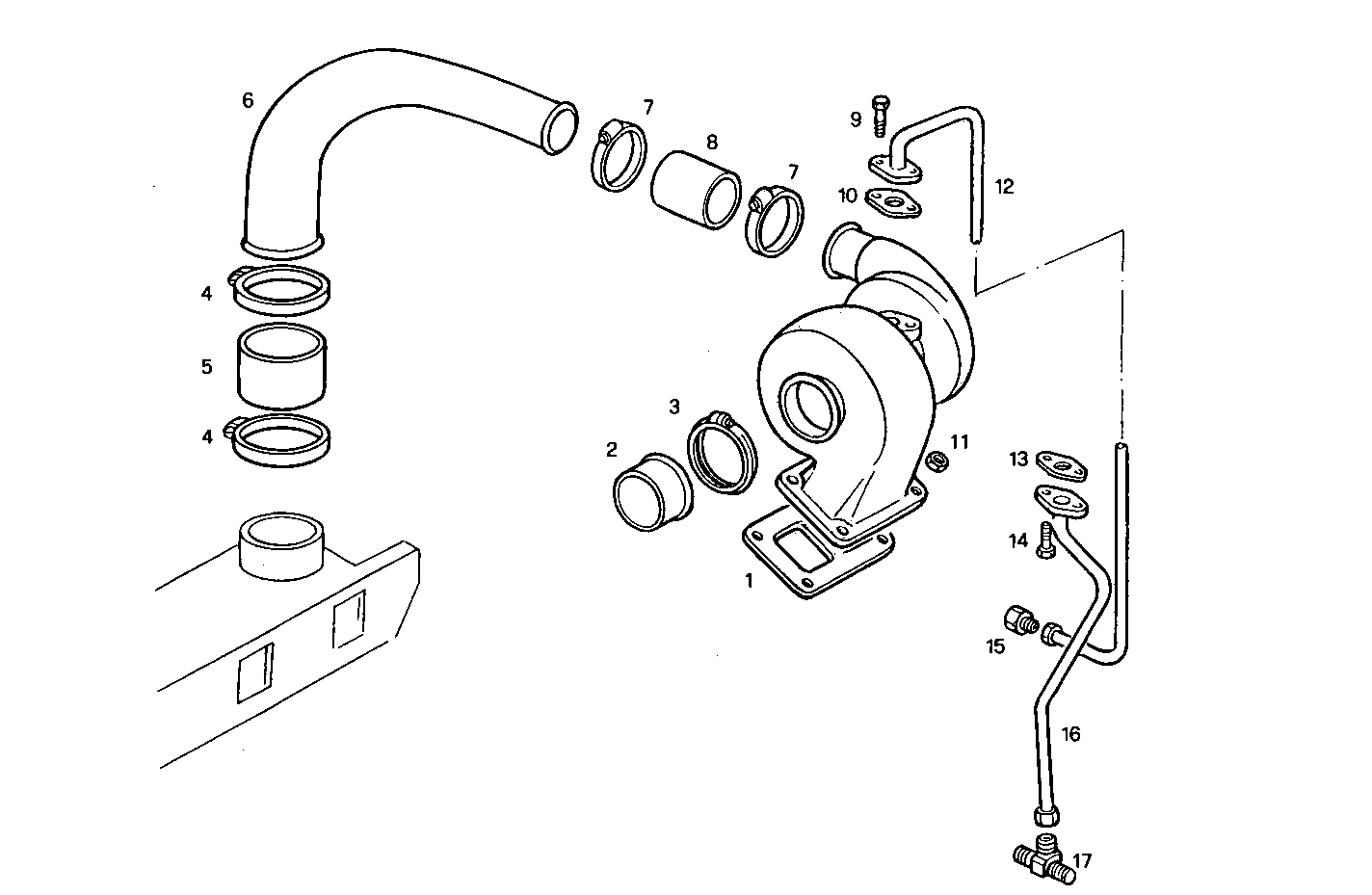

2420.057 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 83911642 | GASKET |
| 2 | 8014613 | FLANGE |
| 3 | 8015368 | CLIP 150 KVA |
| 4 | 81871498 | CLIP |
| 5 | 81862808 | RUBBER SLEEVE |
| 6 | 82859739 | INTAKE ELBOW |
| 7 | 81871496 | CLIP |
| 8 | 8015202 | RUBBER SLEEVE |
| 9 | 81879213 | SCREW |
| 10 | 83959841 | GASKET |
| 11 | 83993005 | NUT |
| 12 | 81879212 | OIL LINE |
| 13 | 83953341 | GASKET |
| 14 | 83908815 | SCREW |
| 15 | 81843887 | PIPE SOCKET |
| 16 | 82853711 | OIL LINE |
| 17 | 81869032 | PIPE SOCKET |
