PU7450Si10.05A100

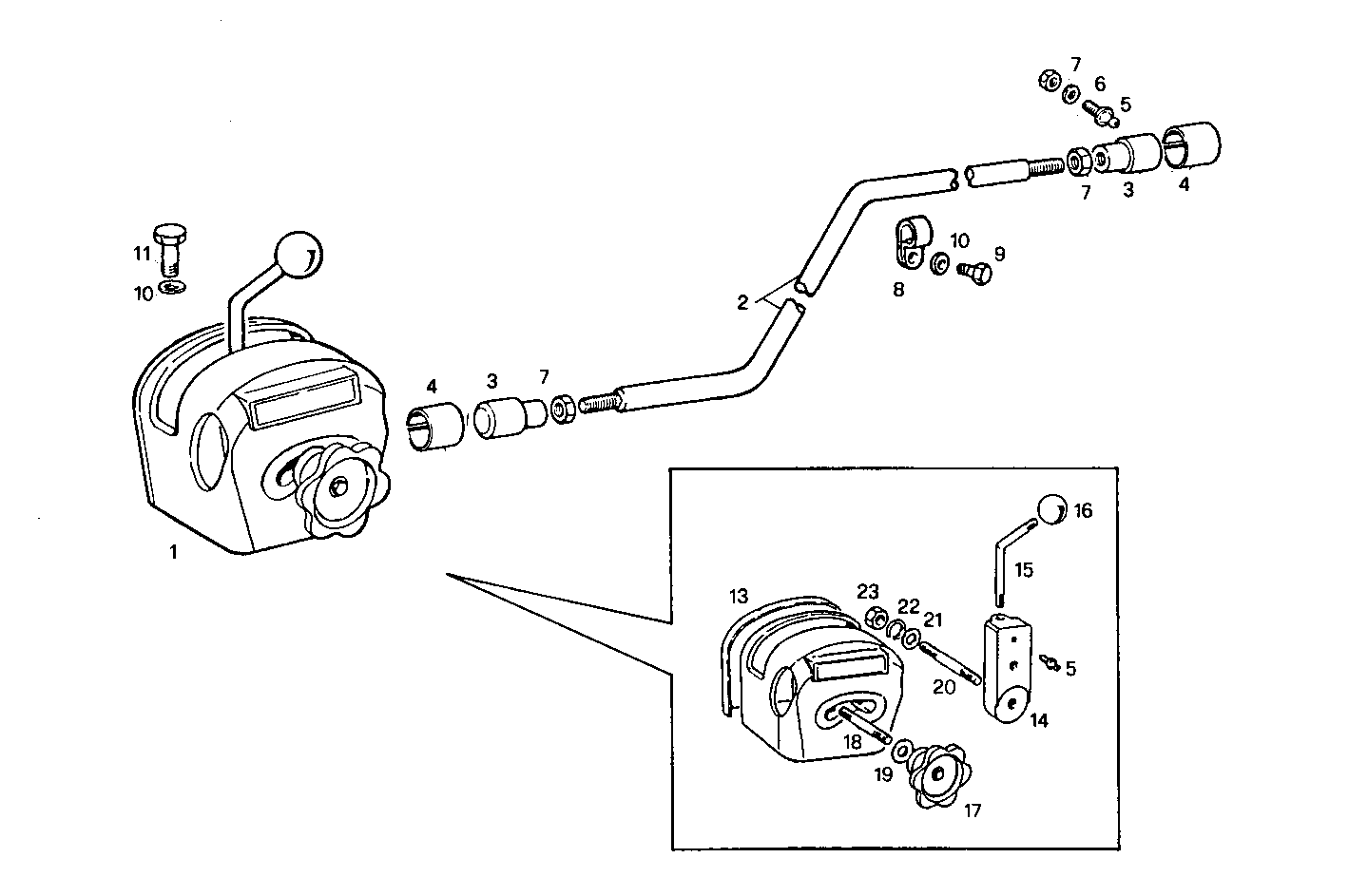

A24020017 HAND ACCELERATOR - assembled
| Item |
Part number |
Description |
|
1 |
4927113 |
HAND ACCELERATOR ASSY |
|
2 |
8015729 |
TIE ROD |
|
3 |
17721111 |
BALL HEAD |
|
4 |
17722174 |
CLIP |
|
5 |
15152011 |
PIN |
|
6 |
17088474 |
WASHER Ø6X12 MM |
|
7 |
17037821 |
HEXAGON NUT M6X1 |
|
8 |
4936277 |
CLIP [up to 03-97] |
|
9 |
8014110 |
SCREW |
|
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
11 |
16607624 |
SCREW M10X25 |
|
13 |
4927115 |
COVER |
|
14 |
4927004 |
LEVER |
|
15 |
4927877 |
STUD |
|
16 |
4927041 |
HANDLE BALL |
|
17 |
4927042 |
HANDWHEEL |
|
18 |
11795121 |
STUD |
|
19 |
12646901 |
WASHER Ø12X28 MM |
|
20 |
13530221 |
STUD M12X18X35 |
|
21 |
10730701 |
WASHER Ø12,2 MM |
|
22 |
10413870 |
SPRING WASHER Ø12 MM |
|
23 |
14048821 |
HEXAGON NUT M12X1,25 |
