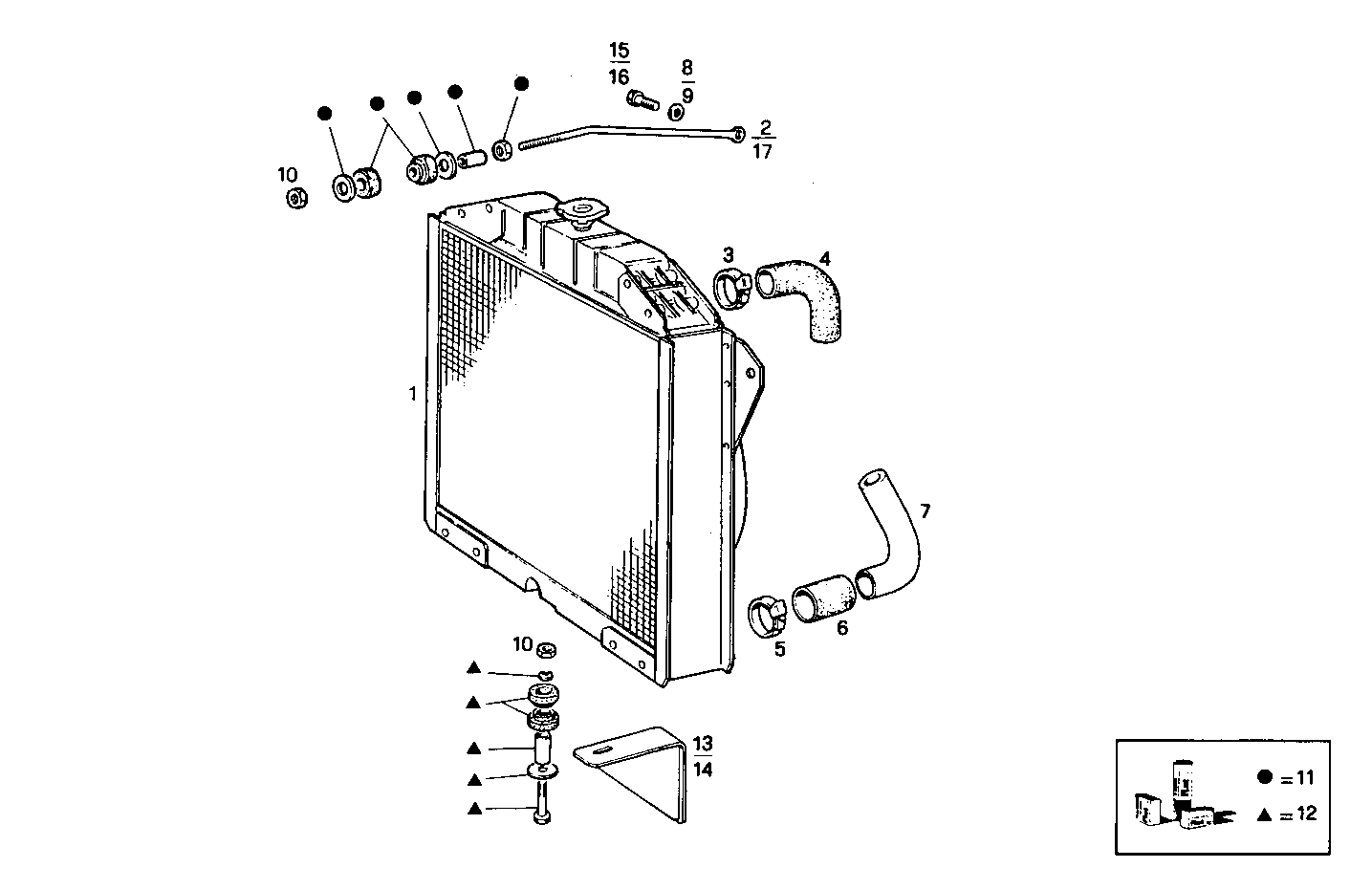

| Item |
Part number |
Description |
|
1 |
8009087 |
WATER RADIATOR ASSY |
|
2 |
8103199 |
TIE ROD LEFT |
|
3 |
98490783 |
CLIP Ø55-65 MM |
|
4 |
4950088 |
WATER PIPE |
|
5 |
17764791 |
CLIP Ø32/50 MM |
|
6 |
596152 |
RUBBER SLEEVE |
|
7 |
8077105 |
WATER PIPE |
|
8 |
11193874 |
WASHER Ø8X16 MM |
|
9 |
98415215 |
WASHER Ø10X20X2,3 MM |
|
10 |
17038221 |
HEXAGON NUT M10 |
|
11 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
12 |
8090341 |
KIT-RADIATOR A.S. COMPLETE |
|
13 |
8104250 |
SUPPORT RIGHT |
|
14 |
8104274 |
SUPPORT LEFT |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
4854882 |
SCREW M8X1,25X45 MM |
|
17 |
8103198 |
TIE ROD RIGHT |
