PU8065SRE10.00A100

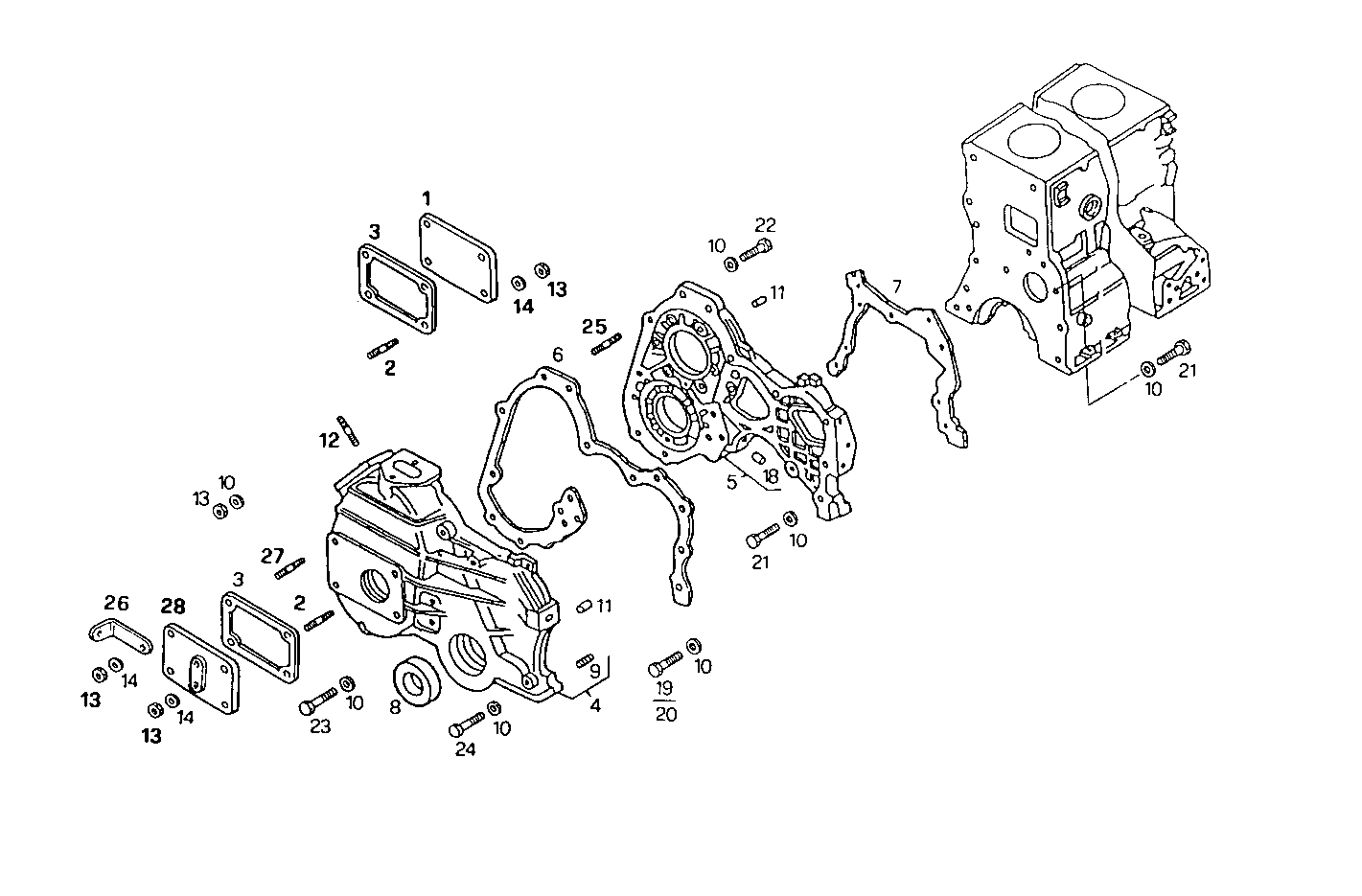

0430.141/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500315902 COVER
2 16728524 STUD
3 500318720 FLAT ENGINE GASKET Ø50 MM
4 500338375 FRONT C.CASE COVER ASSY
5 500321670 TIMINGGEAR HOUSIN ASSY REAR
6 98424045 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 10839610 DOWEL PIN Ø8 MM
12 13516821 STUD M8X12X20 MM
13 17037931 HEXAGON NUT M8X1,25
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 4605220 OIL NOZZLE
19 16606124 HEXAGON BOLT M8X50 MM
20 16605824 HEXAGON BOLT M8X35 MM
21 16043521 SCREW M8X22
22 16605734 HEXAGON BOLT M8X30 MM
23 16044921 HEXAGON BOLT M8X1,25X85 MM
24 16606524 HEXAGON BOLT M8X70 MM
25 16746824 STUD M8X30 MM (8.8)
26 8101217 PLATE
27 16729624 STUD M8X35
28 8025588 COVER
