PU8065SRE10.00A100

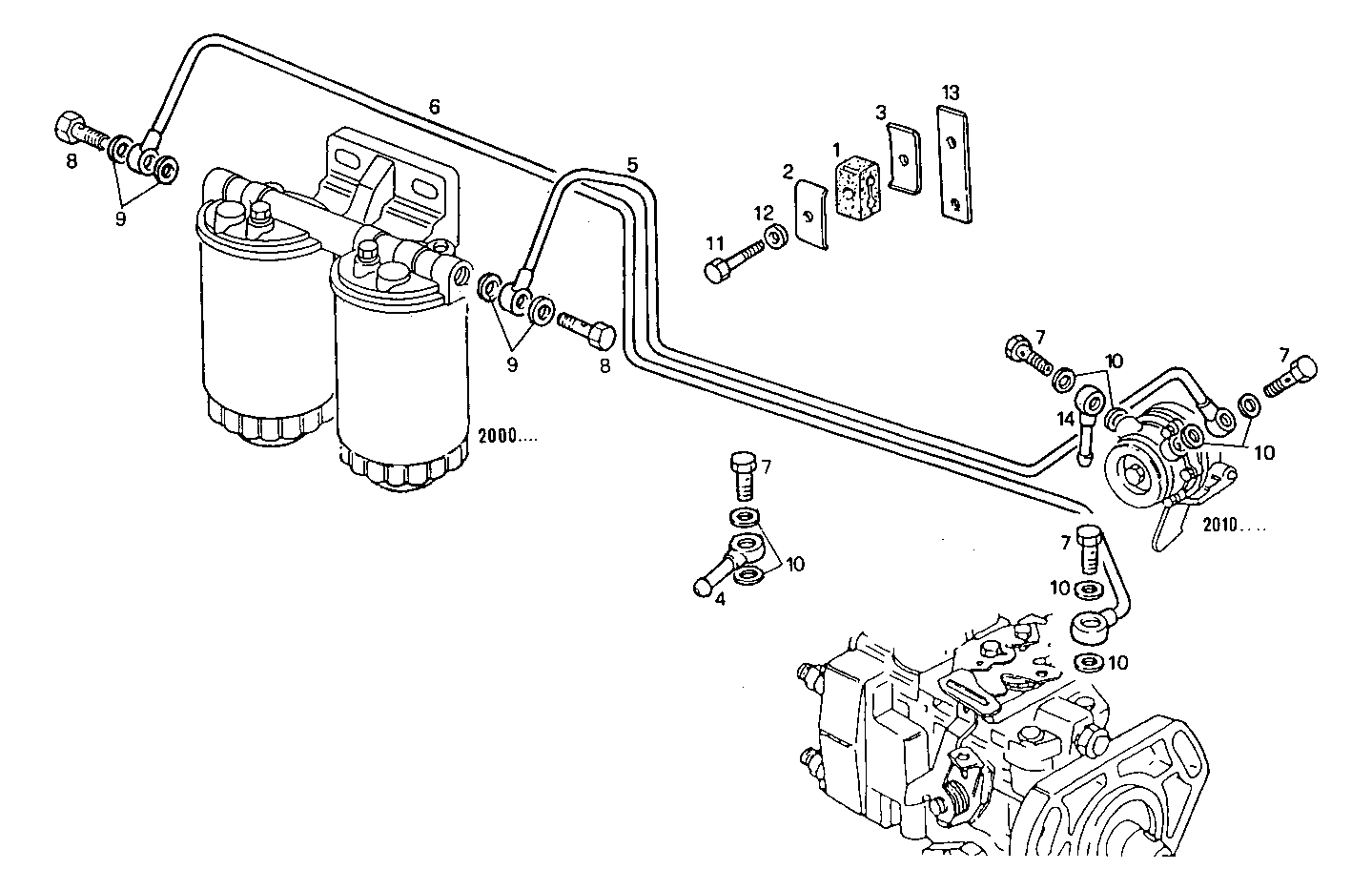

2030.125 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4659217 | DOWEL |
| 2 | 4659218 | CLIP |
| 3 | 4659219 | PLATE |
| 4 | 98416591 | SWIVEL COUPLING |
| 5 | 8026588 | FUEL LINE |
| 6 | 8026589 | FUEL LINE |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 16602324 | HEXAGON BOLT M5X25 MM |
| 12 | 17798074 | WASHER Ø5X9,2X1 MM |
| 13 | 500334222 | FASTENING BRACKET Ø56,52 MM SP=5,33 MM |
| 14 | 98417520 | PIPE SOCKET |
