PU8065SRE10.00A100

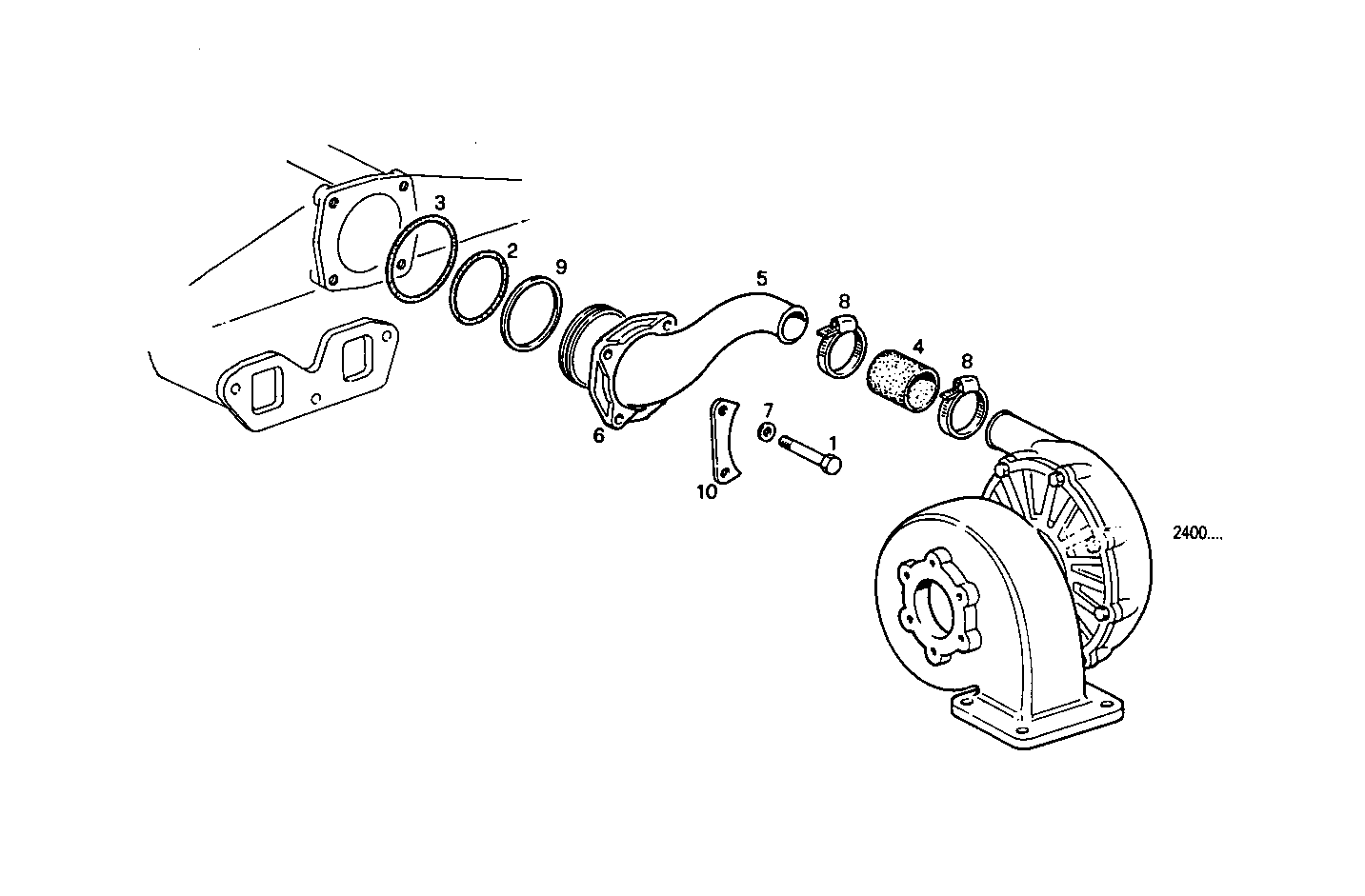

2420.130 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16605924 | SCREW M8X40 MM |
| 2 | 17290781 | O-RING Ø78,97X3,53 MM |
| 3 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 4 | 98421377 | RUBBER SLEEVE Ø51 MM |
| 5 | 8026020 | AIR PIPE/DUCT |
| 6 | 8105950 | FLANGE |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 98490783 | CLIP Ø55-65 MM |
| 9 | 8105951 | CIRCLIP |
| 10 | 8105952 | PLATE |
