PU8065SRE10.00A100

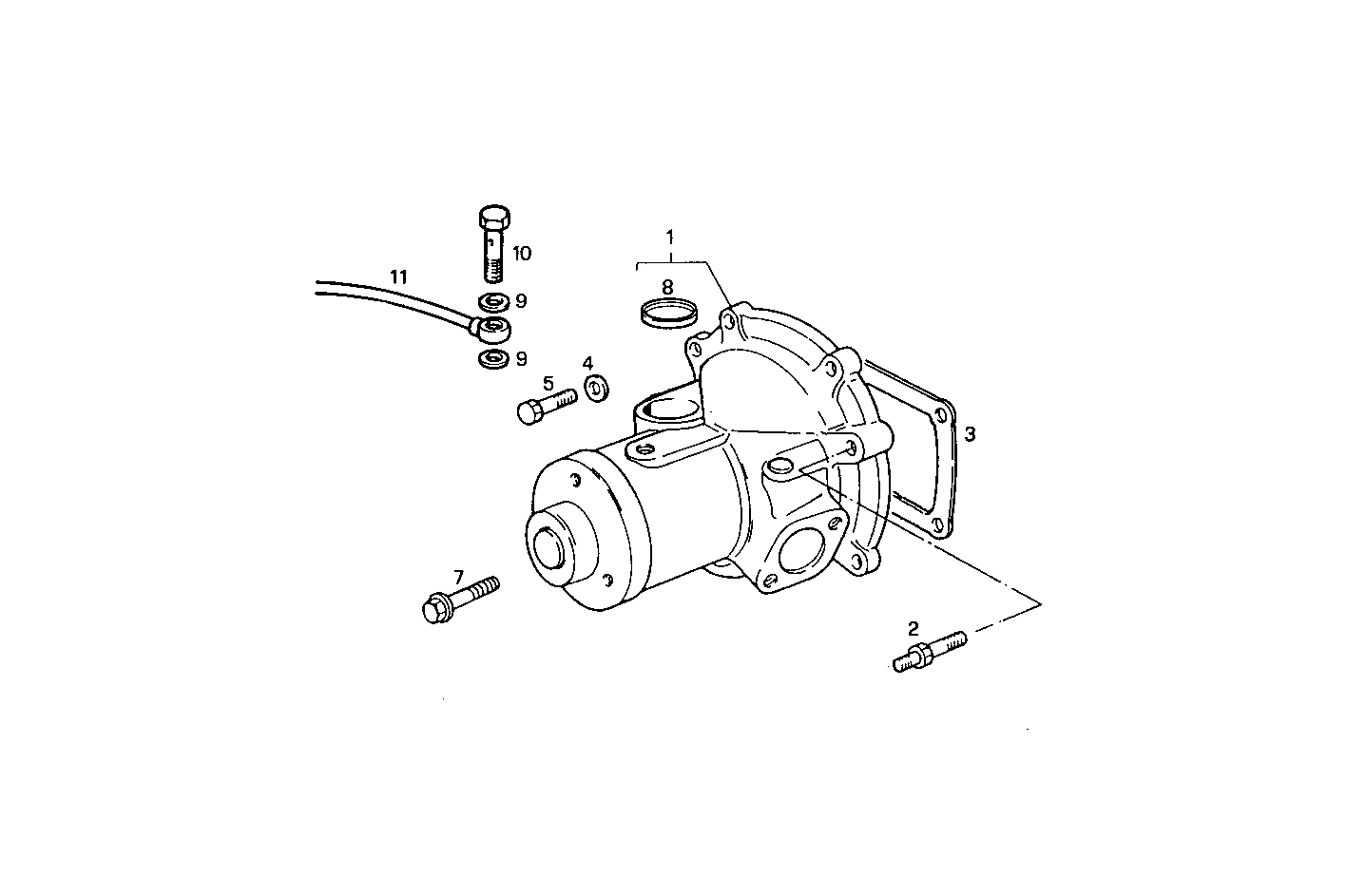

3200.080 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8013363 | WATER PUMP ASSY |
| 2 | 4605853 | STUD |
| 3 | 98400776 | FLAT ENGINE GASKET |
| 4 | 11190571 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 5 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
| 7 | 16288624 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 8013358 | PLUG |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 10 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 11 | 8013424 | WATER PIPE |
