PU8065SRE10.00A100

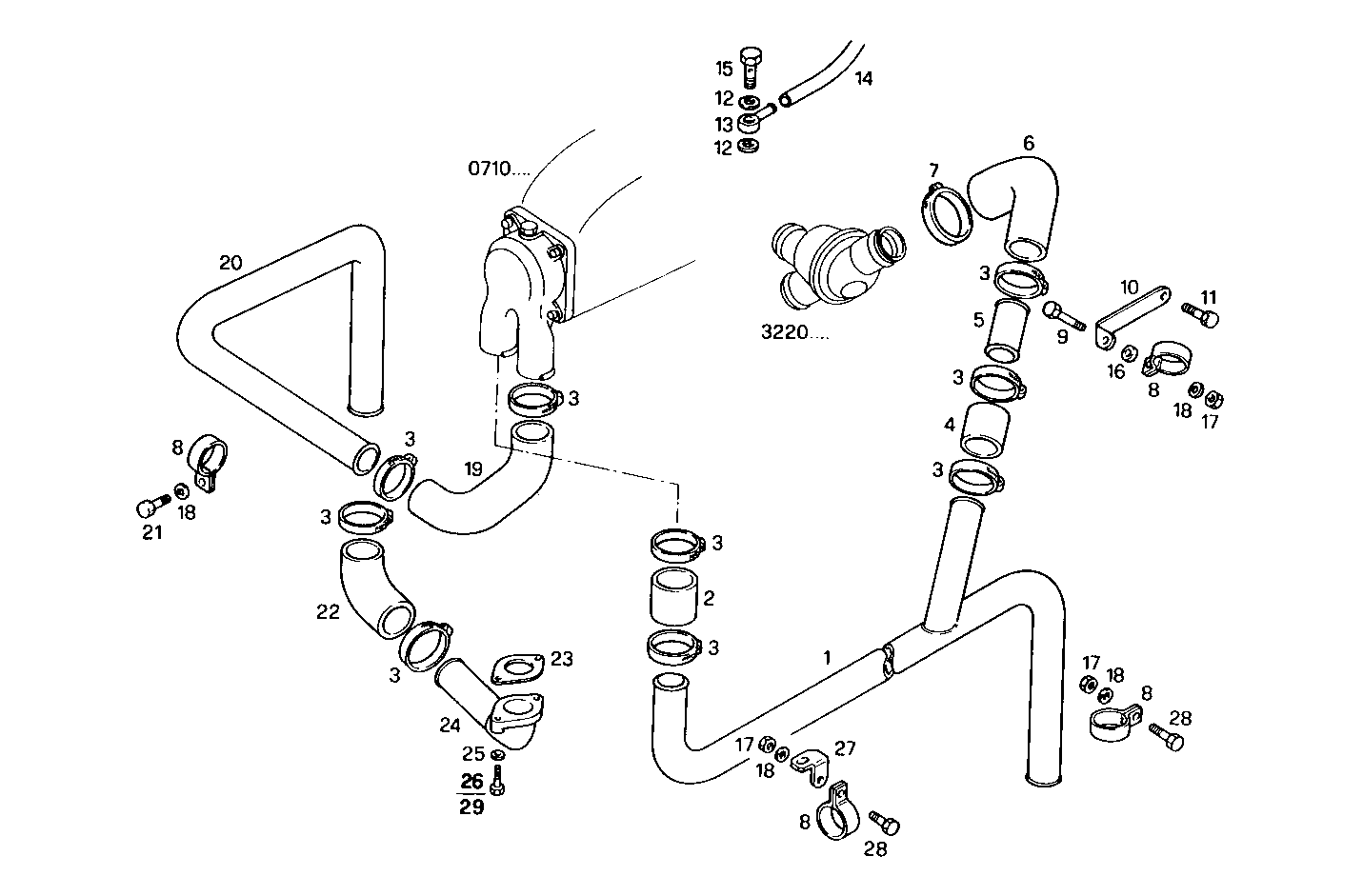

3210.145/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8027146 WATER PIPE
2 8017516 WATER HOSE
3 17764791 CLIP Ø32/50 MM
4 17742887 RUBBER SLEEVE
5 8027147 WATER PIPE
6 98447313 WATER HOSE Ø45 MM/Ø38 MM
7 17764891 CLIP Ø40/60 MM
8 8027280 CLIP
9 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
10 8110973 RETAINER
11 11234721 HEXAGON BOLT M10X1,25X45 MM
12 4858606 GASKET Ø10X14X1 MM
13 4627990 BREATHER CONN.
14 19056687 RUBBER HOSE Ø7,5 MM
15 8012660 SCREW CONNECTOR
16 8101581 SPACING BAR
17 17038121 HEXAGON NUT M10
18 17090174 SPRING WASHER Ø10X20 MM
19 8018455 WATER HOSE
20 8025839 WATER PIPE
21 15970521 HEXAGON BOLT M10X20 MM
22 4644083 WATER HOSE
23 4779623 FLAT ENGINE GASKET
24 8026668 WATER PIPE
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 16043721 HEXAGON BOLT M8X28 MM
27 8107409 RETAINER
28 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
29 16606424 HEXAGON BOLT M8X65 MM
