PU8065SRE10.00A100

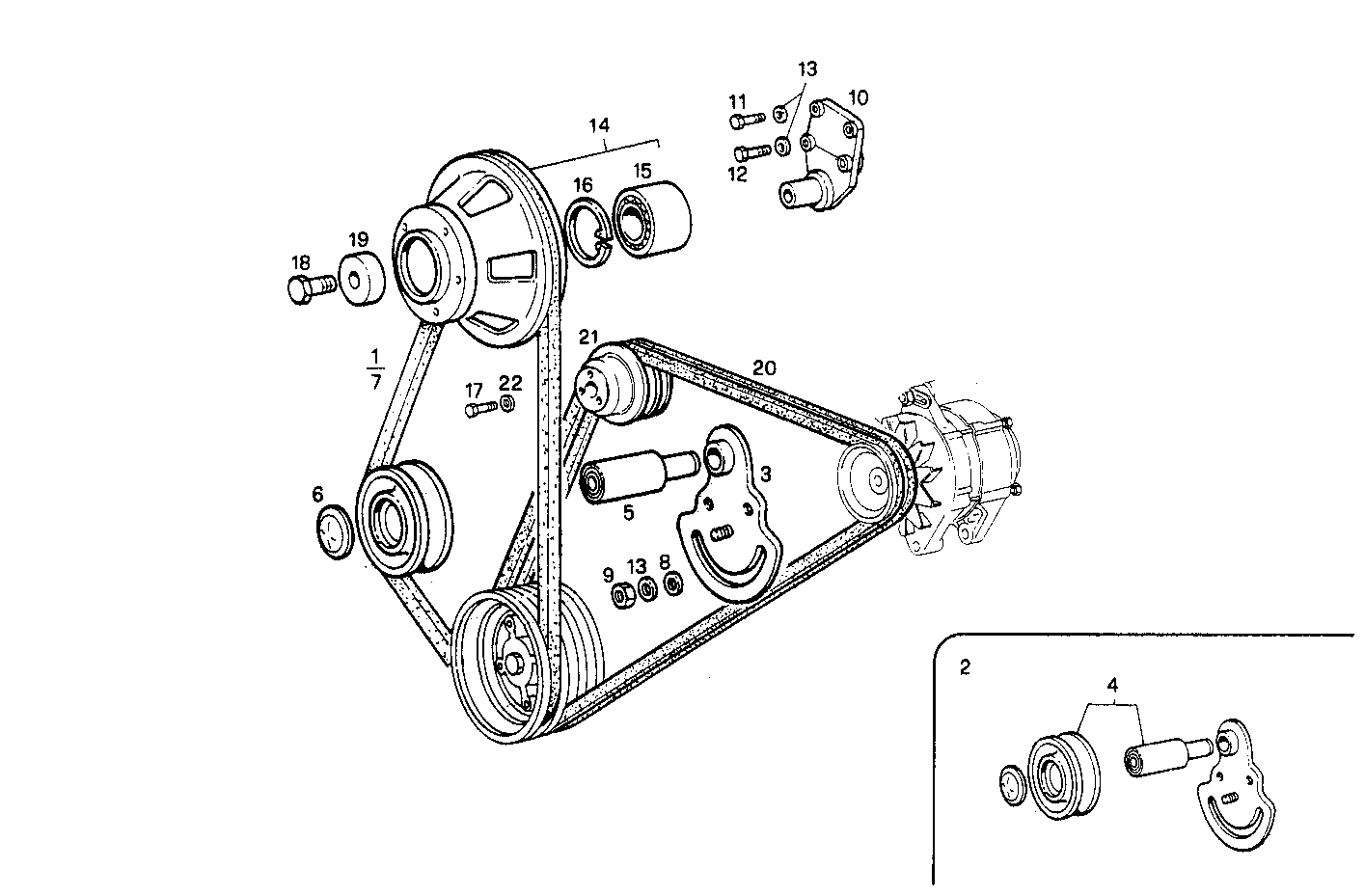

3240.038 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4838527 | V-BELT |
| 2 | 98481264 | TENSIONER ASSY |
| 3 | 98480901 | TENSIONER |
| 4 | 4842339 | PULLEY ASSY |
| 5 | 4547718 | ENGINE BEARINGS |
| 6 | 10160401 | LOCK PLUG |
| 7 | 4716471 | V-BELT |
| 8 | 17793904 | WASHER Ø10X25 MM SP=1,5 |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 99450997 | SUPPORT |
| 11 | 11307021 | HEXAGON BOLT M10X40 MM |
| 12 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 99450996 | PULLEY ASSY |
| 15 | 46423869 | DRIVE BEARING |
| 16 | 16874476 | CIRCLIP Ø72,5X2,5 MM |
| 17 | 16605524 | HEXAGON BOLT M8X20 MM |
| 18 | 16683134 | SCREW M16 |
| 19 | 98448369 | WASHER |
| 20 | 8027472 | V-BELT |
| 21 | 98419016 | WATER PUMP PULLEY |
| 22 | 17089574 | WASHER Ø8X16 MM |
