PU8065SRE10.00A100

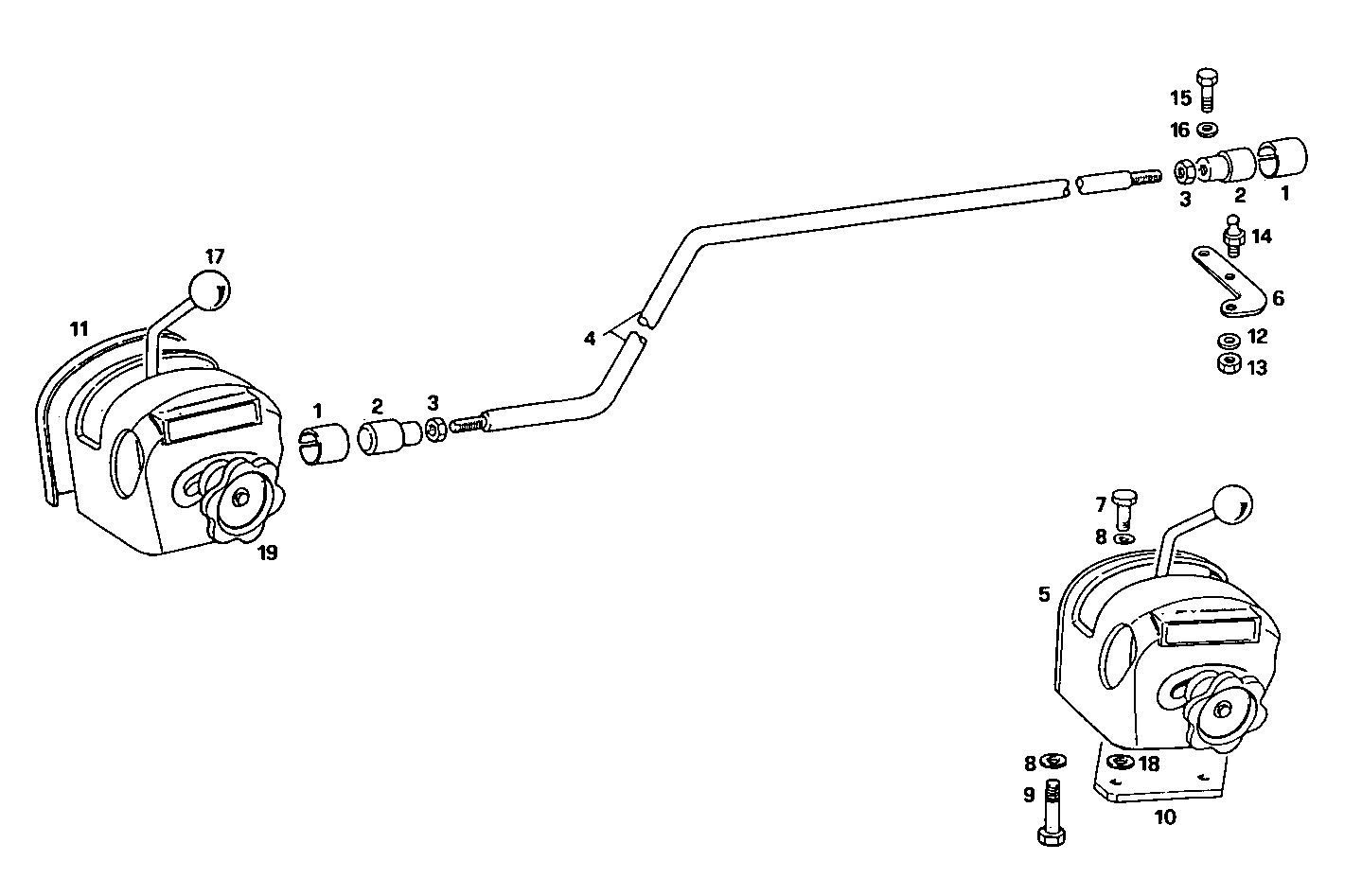

A24020032 HAND ACCELERATOR - assembled
| Item | Part number | Description |
|---|---|---|
| 1 | 17722174 | CLIP |
| 2 | 17721111 | BALL HEAD |
| 3 | 17037821 | HEXAGON NUT M6X1 |
| 4 | 8027201 | TIE ROD |
| 5 | 4927113 | HAND ACCELERATOR ASSY |
| 6 | 8026302 | ACCELERATOR PEDAL |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 4249494 | RETAINER |
| 11 | 4927115 | COVER |
| 12 | 17088474 | WASHER Ø6X12 MM |
| 14 | 15152011 | PIN |
| 15 | 16603524 | SCREW M6X12 MM (8.8) |
| 17 | 4927041 | HANDLE BALL |
| 18 | 8101556 | SPACING BAR SP=13,00 MM |
| 19 | 4927042 | HANDWHEEL |
