PU8065SRE10.00A100

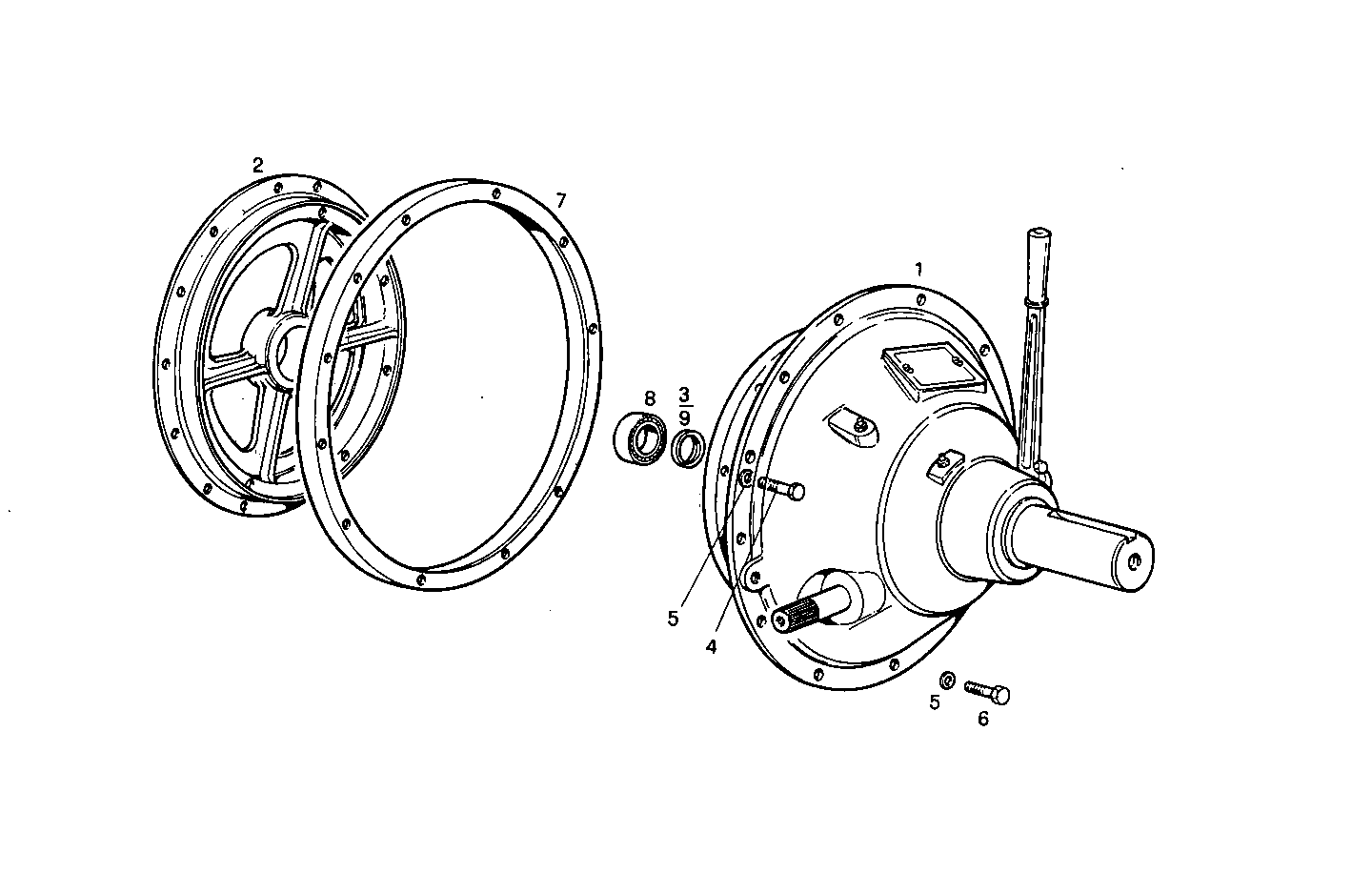

A27220002 BIDISC INDUSTRIAL CLUTCH - TECHNODRIVE 11'' 1/2
| Item | Part number | Description |
|---|---|---|
| 1 | 8015232 | CLUTCH ASSY BD 290/150 |
| 2 | 8104057 | FLANGE |
| 3 | 4931870 | SPACING BAR [up to 11-92] |
| 4 | 15971921 | HEXAGON BOLT M10X105 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 11343721 | HEXAGON BOLT M10X65 MM |
| 7 | 8101046 | SPACING BAR |
| 8 | 28044150 | DRIVE BEARING |
| 9 | 8014922 | SPACER RING [from 11-92] |
