PU8065SRE10.00A100

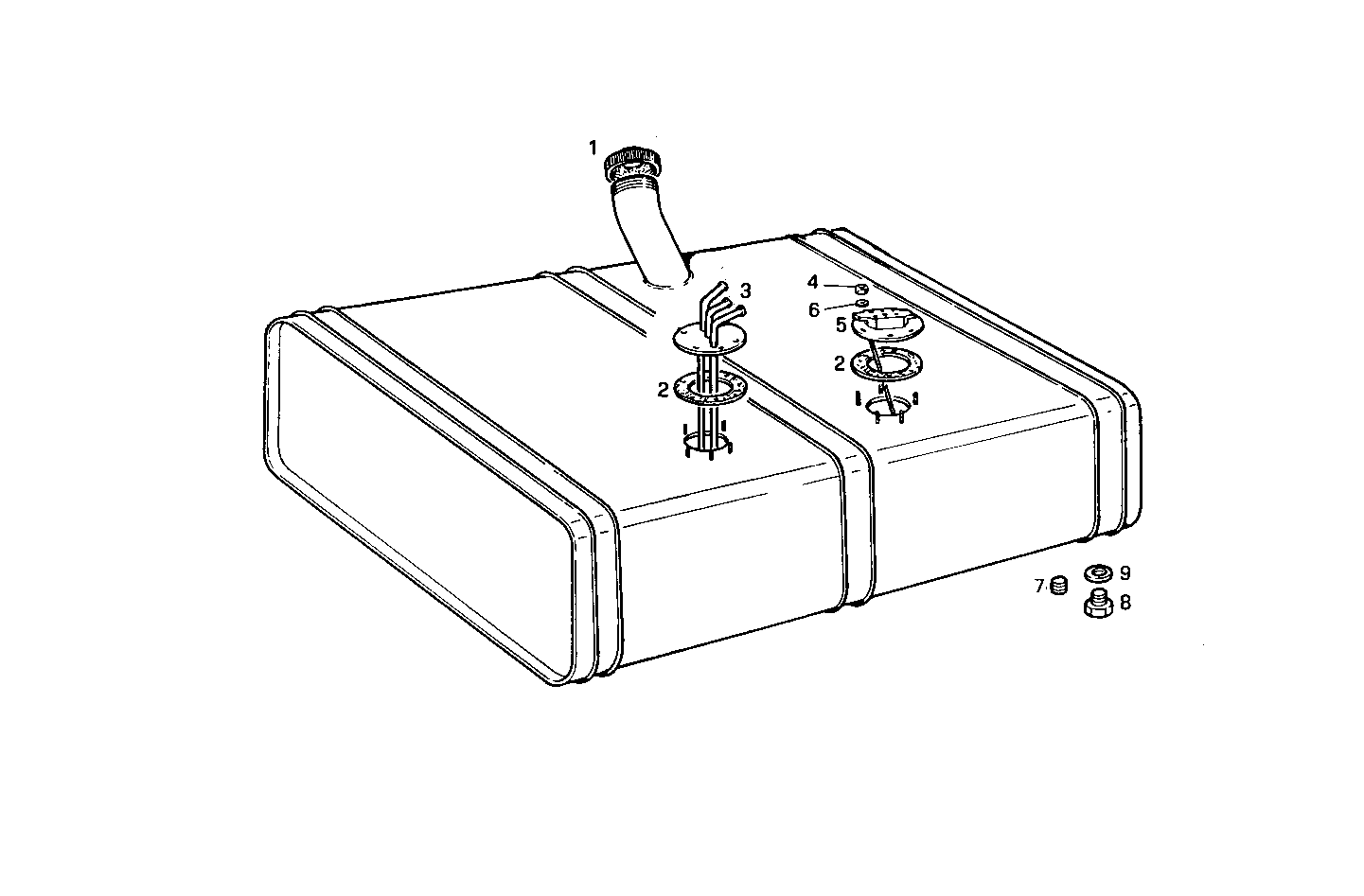

A29050002 FUEL TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 541257 | FUEL TANK PLUG ASSY |
| 2 | 992273 | GASKET |
| 3 | 8103698 | FUEL FILTER |
| 4 | 17037621 | HEXAGON NUT M4 |
| 5 | 8027055 | FUEL LEVEL GAUGE |
| 6 | 17797974 | SPRING WASHER Ø4,1X7,6 MM |
| 7 | 14325301 | LOCK PLUG Ø22 MM |
| 8 | 10305111 | LOCK PLUG M22 |
| 9 | 10263460 | WASHER Ø22X28X1,5 MM |
