PU8065SRE10.00A100

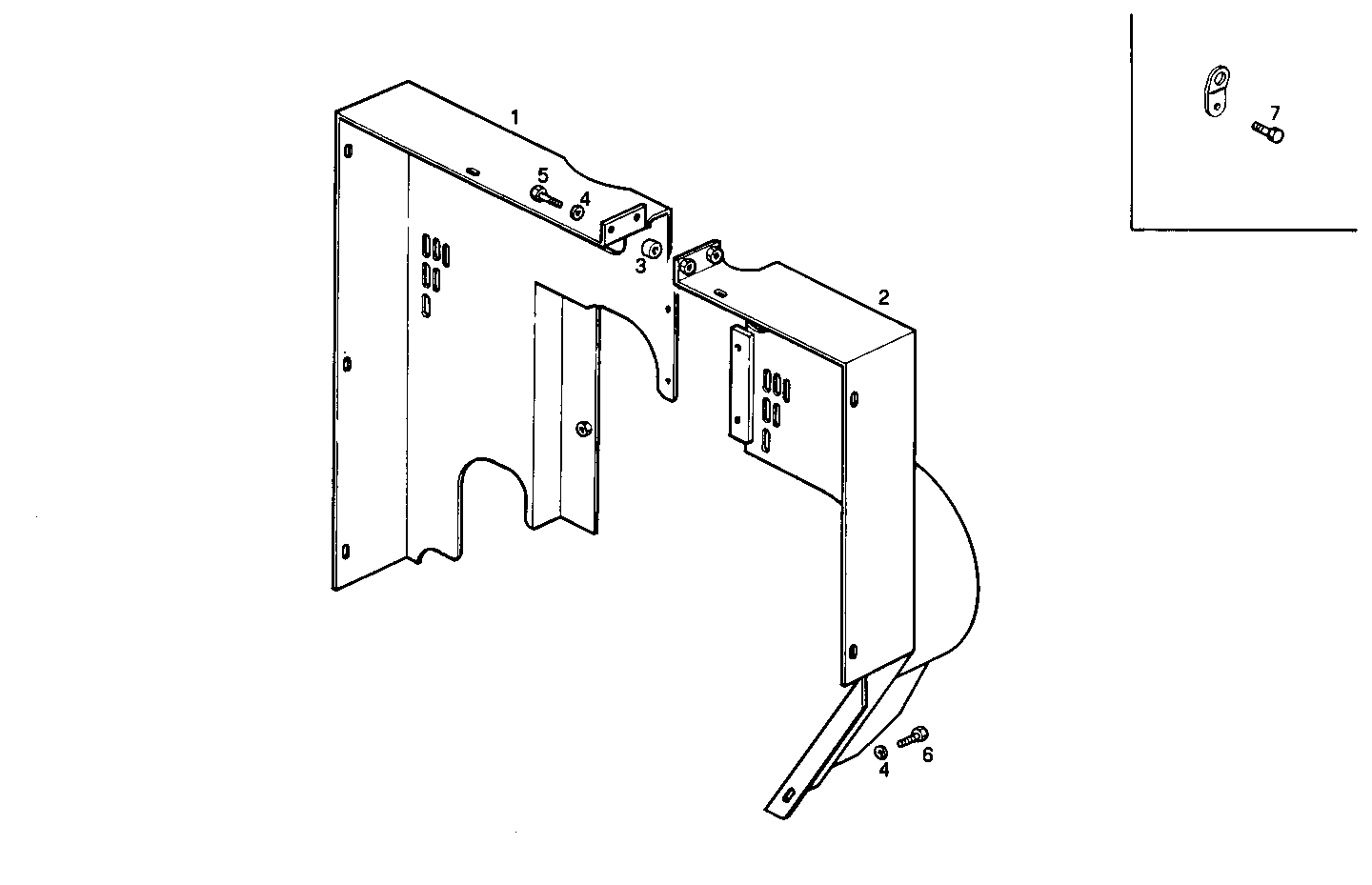

A48060014 GUARD - for fan
| Item | Part number | Description |
|---|---|---|
| 1 | 8017596 | PROTECTION |
| 2 | 8017597 | PROTECTION |
| 3 | 8015452 | SPACING BAR |
| 4 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 5 | 16605734 | HEXAGON BOLT M8X30 MM |
| 6 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
