PU8065SRE10.00A100

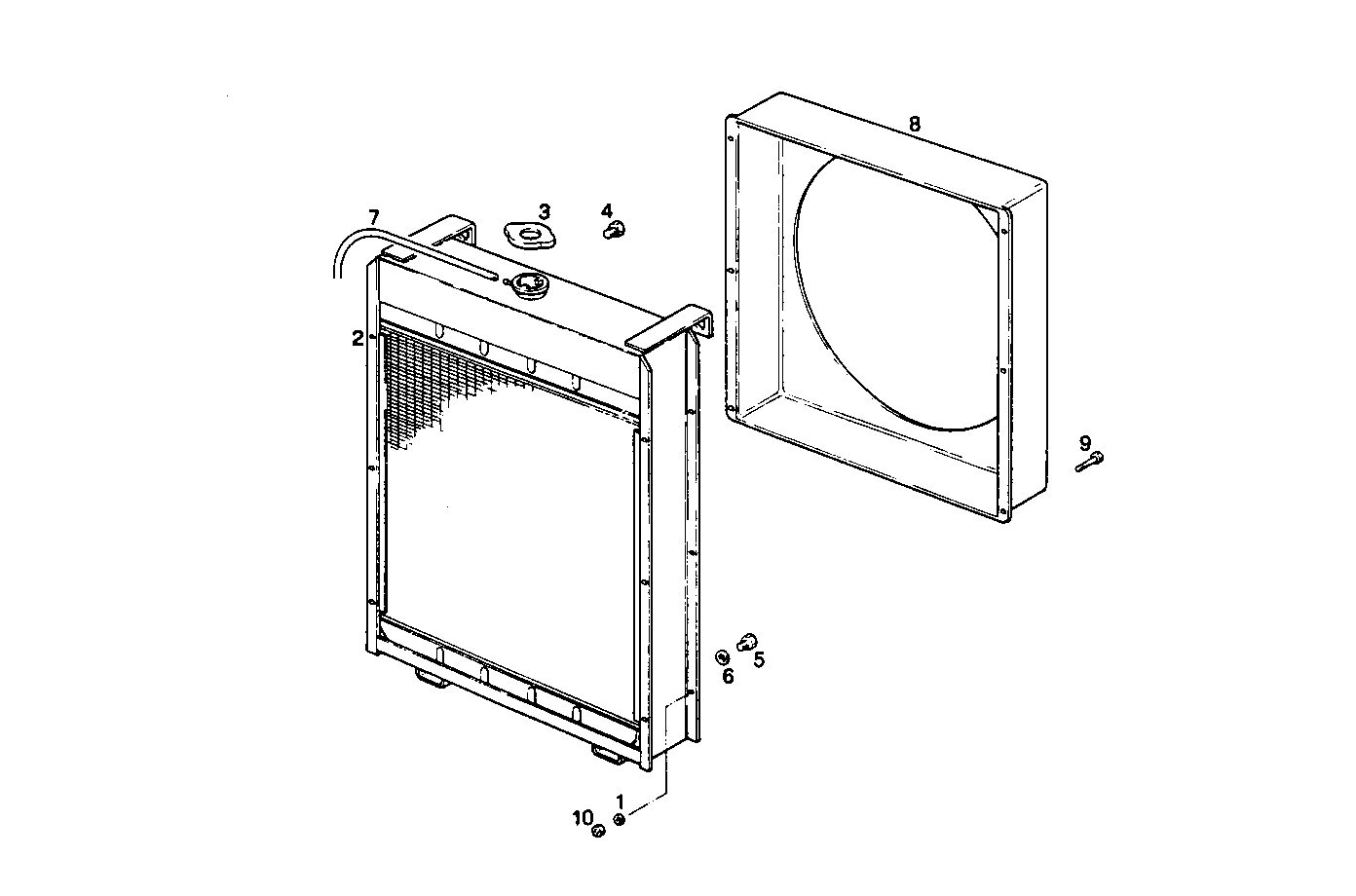

T2201003 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 2 | 8013490 | WATER RADIATOR |
| 3 | 8107632 | RADIATOR PLUG |
| 4 | 8105096 | PLUG |
| 5 | 16992340 | THREADED PLUG M14X1,5 |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 17722901 | WATER HOSE |
| 8 | 8011098 | AIR HOOD |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
