PU8210I03.00A100

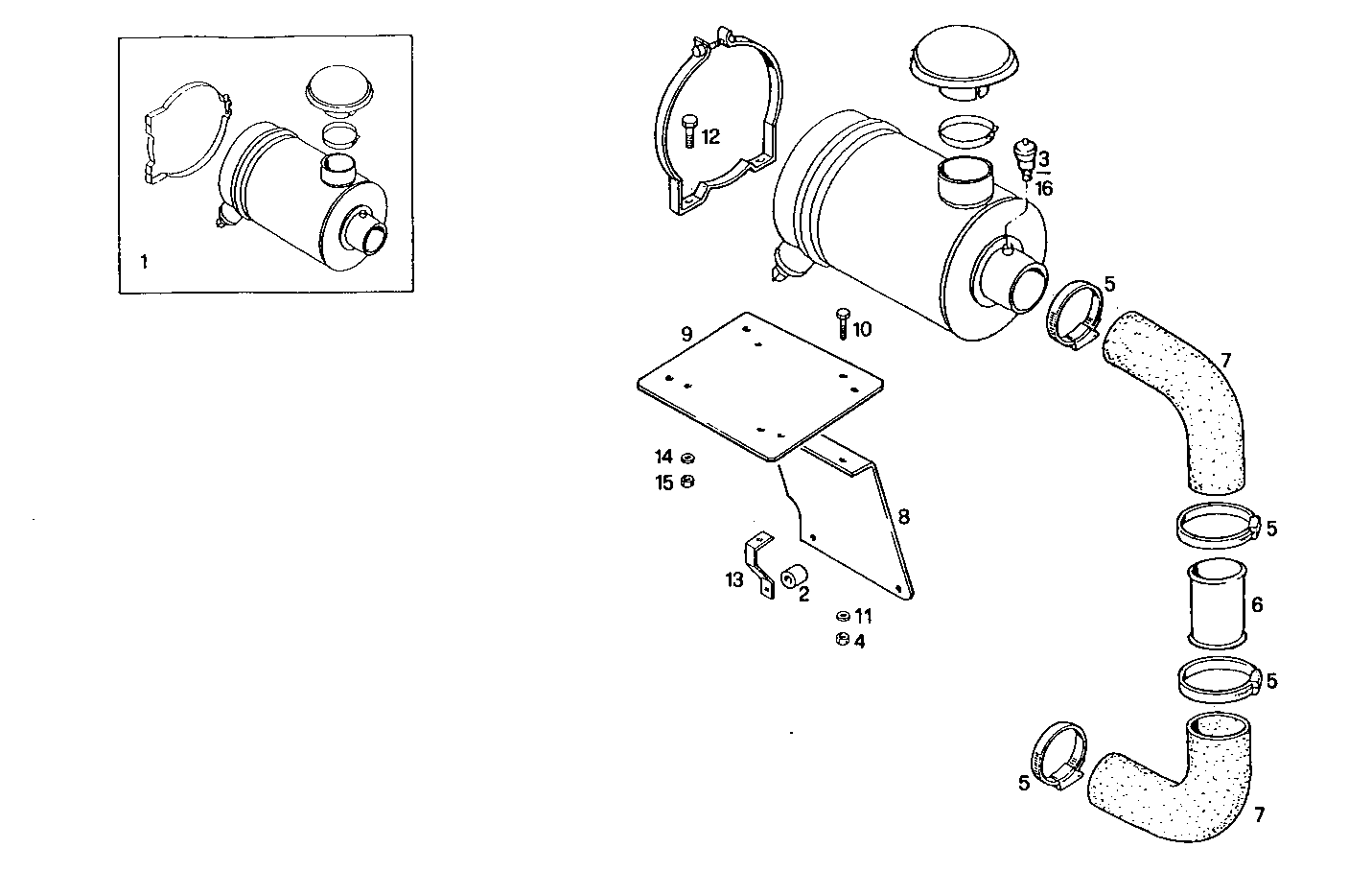

A21210039 DRY AIR CLEANER - with mechanical clogging gauge - industrial

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016665 AIR CLEANER ASSY
2 4930712 SPACING BAR
3 4936137 CHOCKED FILTER INDIC. MECHANICAL
4 17038121 HEXAGON NUT M10
5 17765691 CLIP Ø120/140 MM
6 8006313 AIR PIPE/DUCT
7 8006312 FILTER HOSE
8 8006311 RETAINER
9 8018681 SUPPORT
10 16607624 SCREW M10X25
11 17090474 SPRING WASHER Ø10X27 MM SP=2,5
12 16609824 HEXAGON BOLT M12X1,75X25 MM
13 8107871 RETAINER
14 17091374 SPRING WASHER Ø12X30X3,0 MM
15 17038421 HEXAGON NUT M12 (8)
16 8022540 CHOCKED FILTER INDIC. MECHANICAL
