PU8210i03.00A103

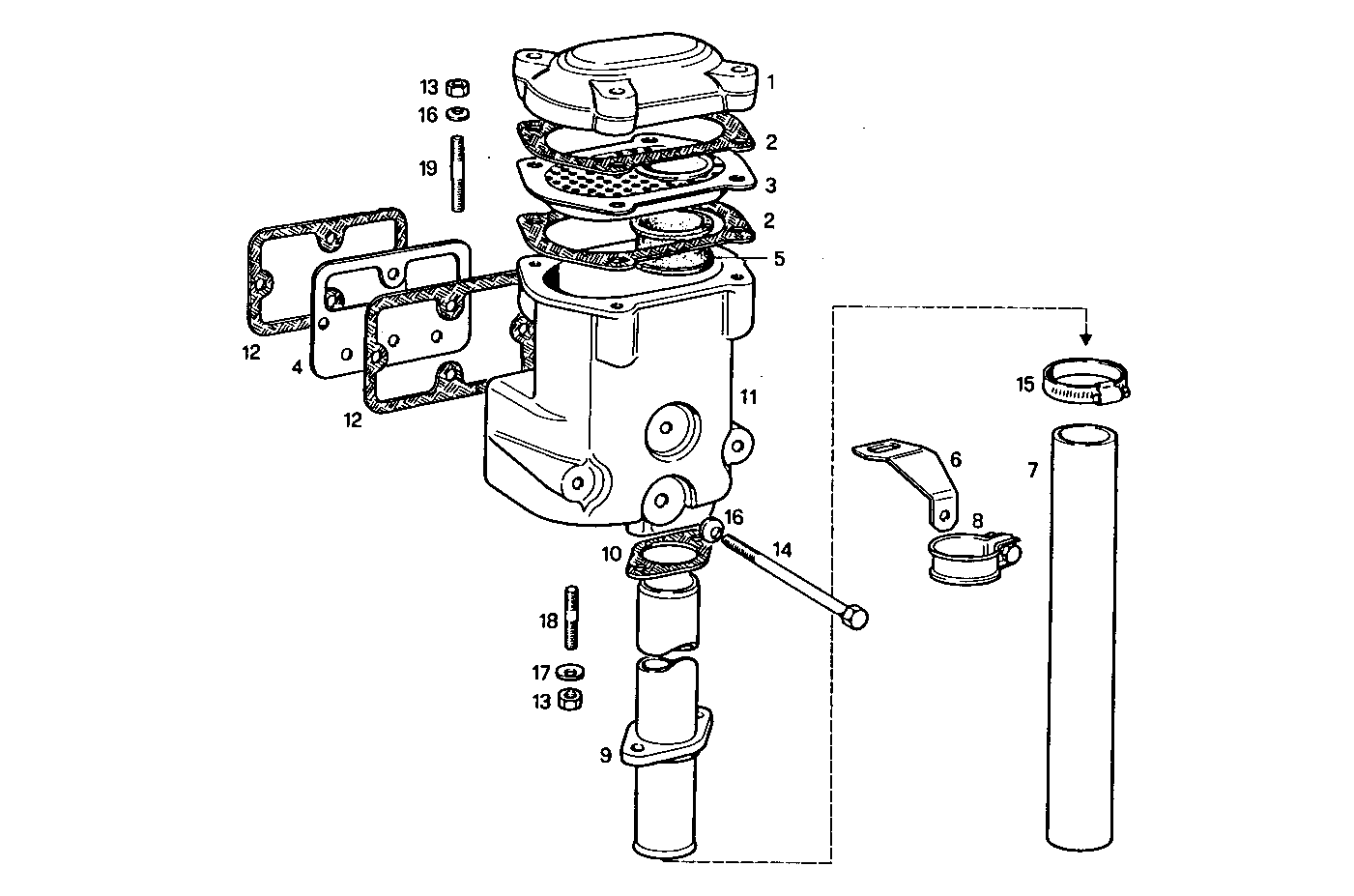

0450.010 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4638337 | COVER |
| 2 | 98424044 | FLAT ENGINE GASKET |
| 3 | 4638635 | FILTER |
| 4 | 4643288 | SIDE COVER |
| 5 | 4638675 | RUBBER BUSH |
| 6 | 4668861 | FASTENING BRACKET |
| 7 | 98462074 | RUBBER SLEEVE |
| 8 | 4668862 | CLIP |
| 9 | 4638619 | BREATHER PIPE |
| 10 | 4863527 | FLAT ENGINE GASKET |
| 11 | 4638335 | BREATHER |
| 12 | 4863957 | FLAT ENGINE GASKET [up to 438825] |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 16045230 | HEXAGON BOLT |
| 15 | 17764792 | HOSE CLIP Ø32-50 MM |
| 16 | 17089874 | WASHER Ø8X22 MM |
| 17 | 17089574 | WASHER Ø8X16 MM |
| 18 | 12354521 | STUD M8X16X22 |
| 19 | 13543821 | STUD M8X16X40 |
