PU8210i03.00A103

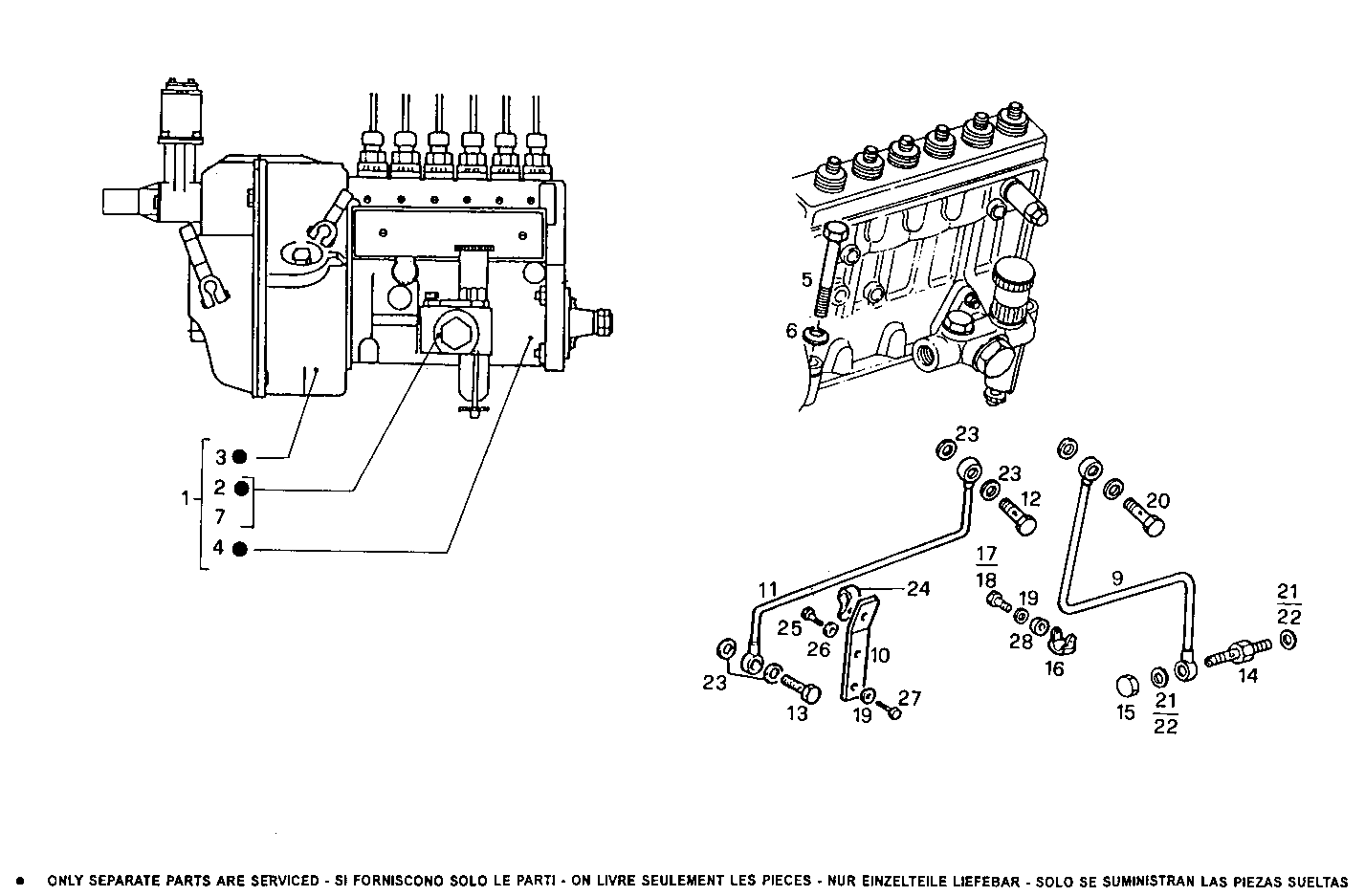

1400.022 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 4796523 INLINE INJECT.PUMP ASSY
2 772156 FUEL PUMP ASSY WEBER ALTECNA [up to 05-95]
5 15971621 HEXAGON BOLT M10X1,25X90 MM
6 11198371 SPRING WASHER Ø10X20 MM
7 93159106 FUEL PUMP ASSY BOSCH [from 05-95]
9 98443555 PIPE
10 4645737 FASTENING BRACKET
13 4864083 SCREW CONNECTOR M14X1,5X30 MM
14 4621393 THREADED UNION
15 500302824 LOCK PLUG M10X1,25
16 10449890 PIPE CLIP Ø53 MM
17 16043124 SCREW M8X14 MM
18 16043321 HEXAGON BOLT M8X18 MM
20 4864079 SCREW CONNECTOR M10X1
21 4837613 GASKET [up to ...]
22 98474305 WASHER Ø10X17 MM SP=2,3
23 98474308 SEAL GASKET Ø14X22 MM
24 10450190 PIPE CLIP Ø10 MM
25 16043021 HEXAGON BOLT M8X12 MM
26 11198074 SPRING WASHER Ø8X15 MM
27 15004021 HEXAGON BOLT M10X1,25X25 MM
