PU8210i03.00A103

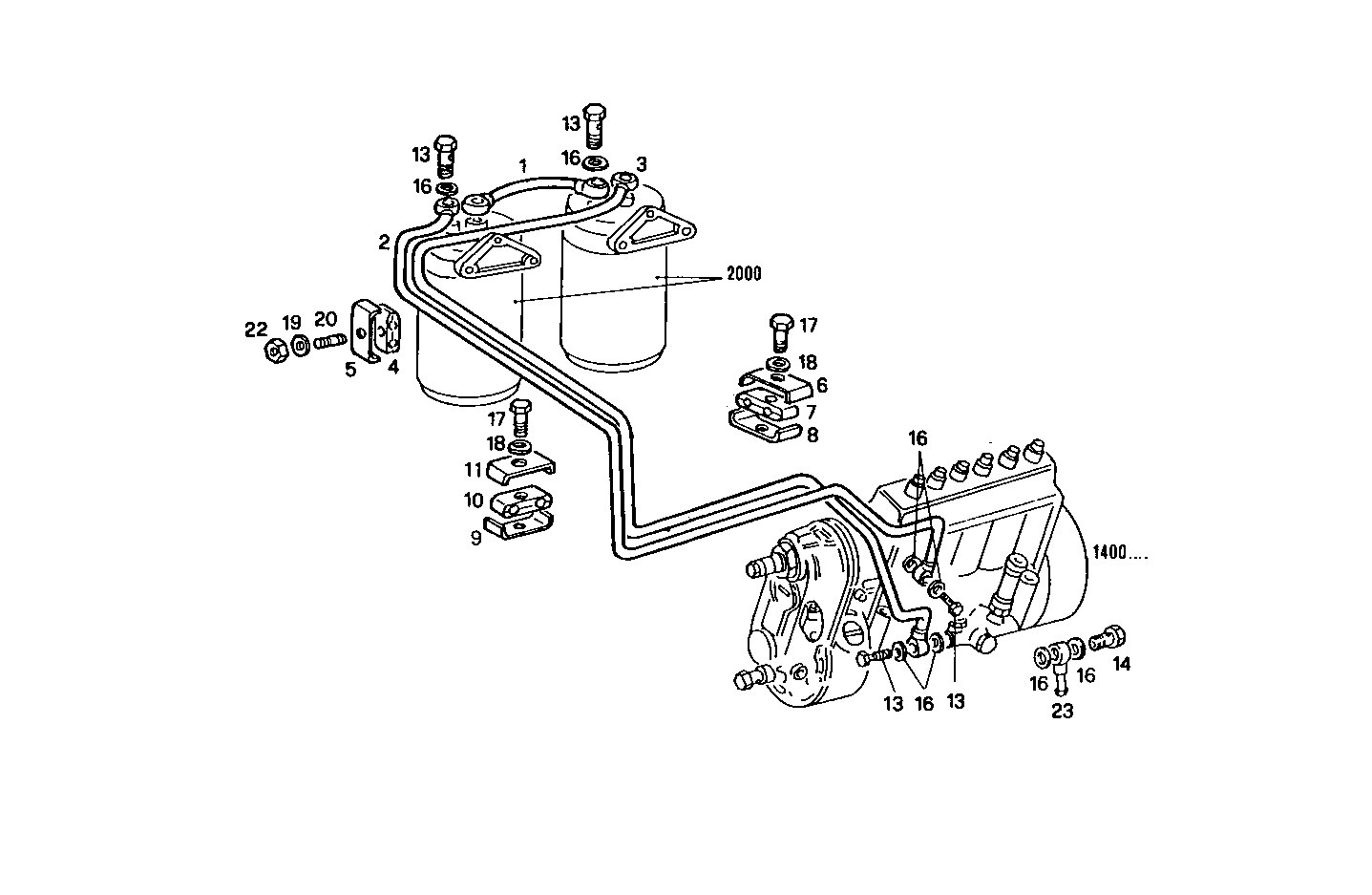

2030.013 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98479434 | FUEL LINE |
| 2 | 98479423 | FUEL LINE |
| 3 | 98479424 | FUEL LINE |
| 4 | 4651774 | RUBBER PAD |
| 5 | 4651773 | FASTENING BRACKET |
| 6 | 4644288 | CLIP |
| 7 | 4871771 | RUBBER LUG |
| 8 | 4644289 | CLIP |
| 9 | 4649540 | RETAINER |
| 10 | 4761451 | RUBBER PAD |
| 11 | 4641551 | CLAMP |
| 13 | 10184311 | SCREW CONNECTOR M14X1,5 |
| 14 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 16 | 98474308 | SEAL GASKET Ø14X22 MM |
| 17 | 16603824 | SCREW M6X25 |
| 18 | 17088474 | WASHER Ø6X12 MM |
| 19 | 17089574 | WASHER Ø8X16 MM |
| 20 | 13517221 | STUD M8X12X30 MM |
| 22 | 17037931 | HEXAGON NUT M8X1,25 |
| 23 | 8030222 | PIPE SOCKET D [from 01-09-02] |
