PU8210i03.00A103

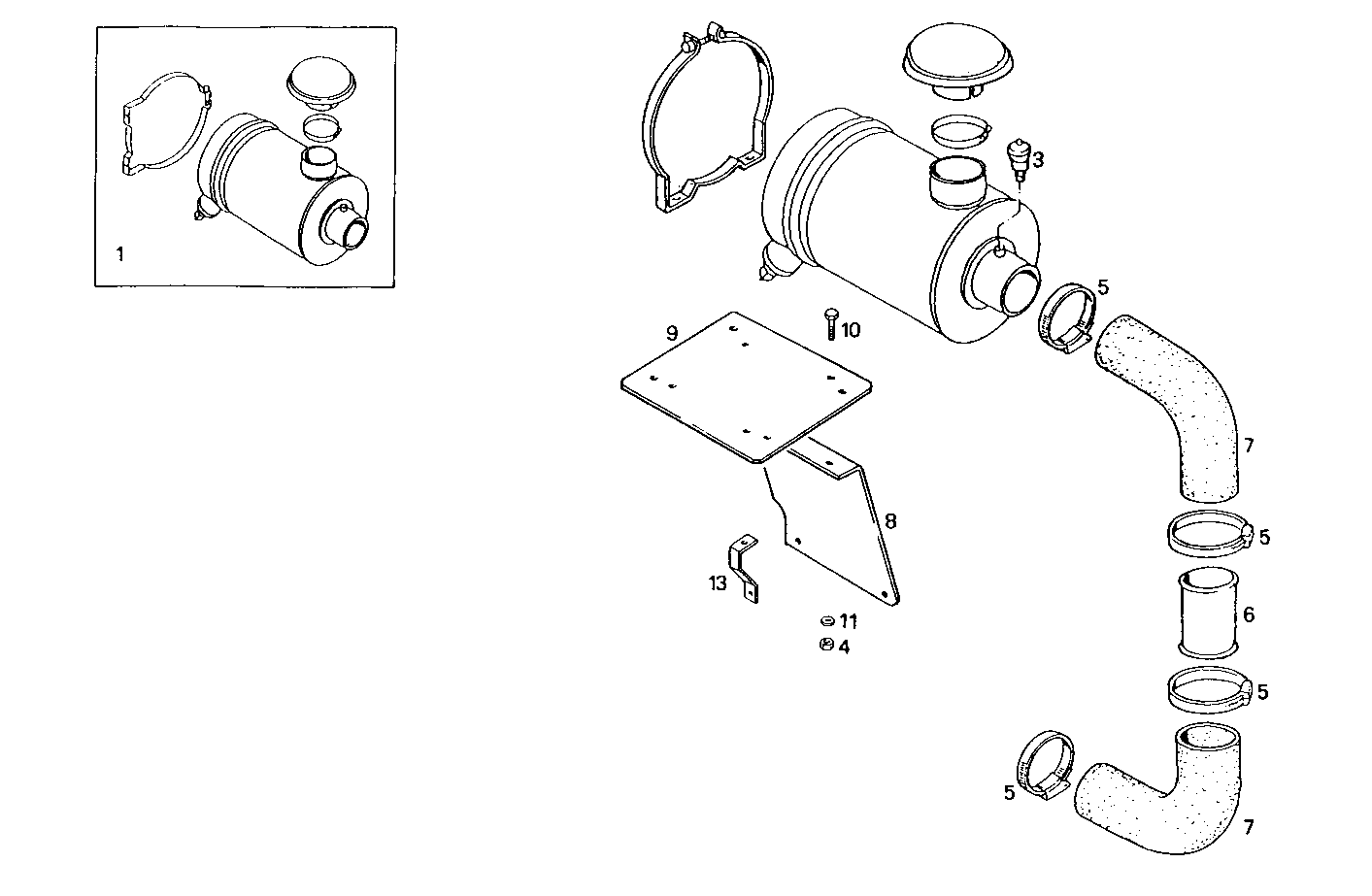

2210.041/01 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8016665 | AIR CLEANER ASSY |
| 3 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 4 | 17038121 | HEXAGON NUT M10 |
| 5 | 17765691 | CLIP Ø120/140 MM |
| 6 | 8006313 | AIR PIPE/DUCT |
| 7 | 8006312 | FILTER HOSE |
| 8 | 8006311 | RETAINER |
| 9 | 8018681 | SUPPORT |
| 10 | 16607624 | SCREW M10X25 |
| 11 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 13 | 8107871 | RETAINER |
