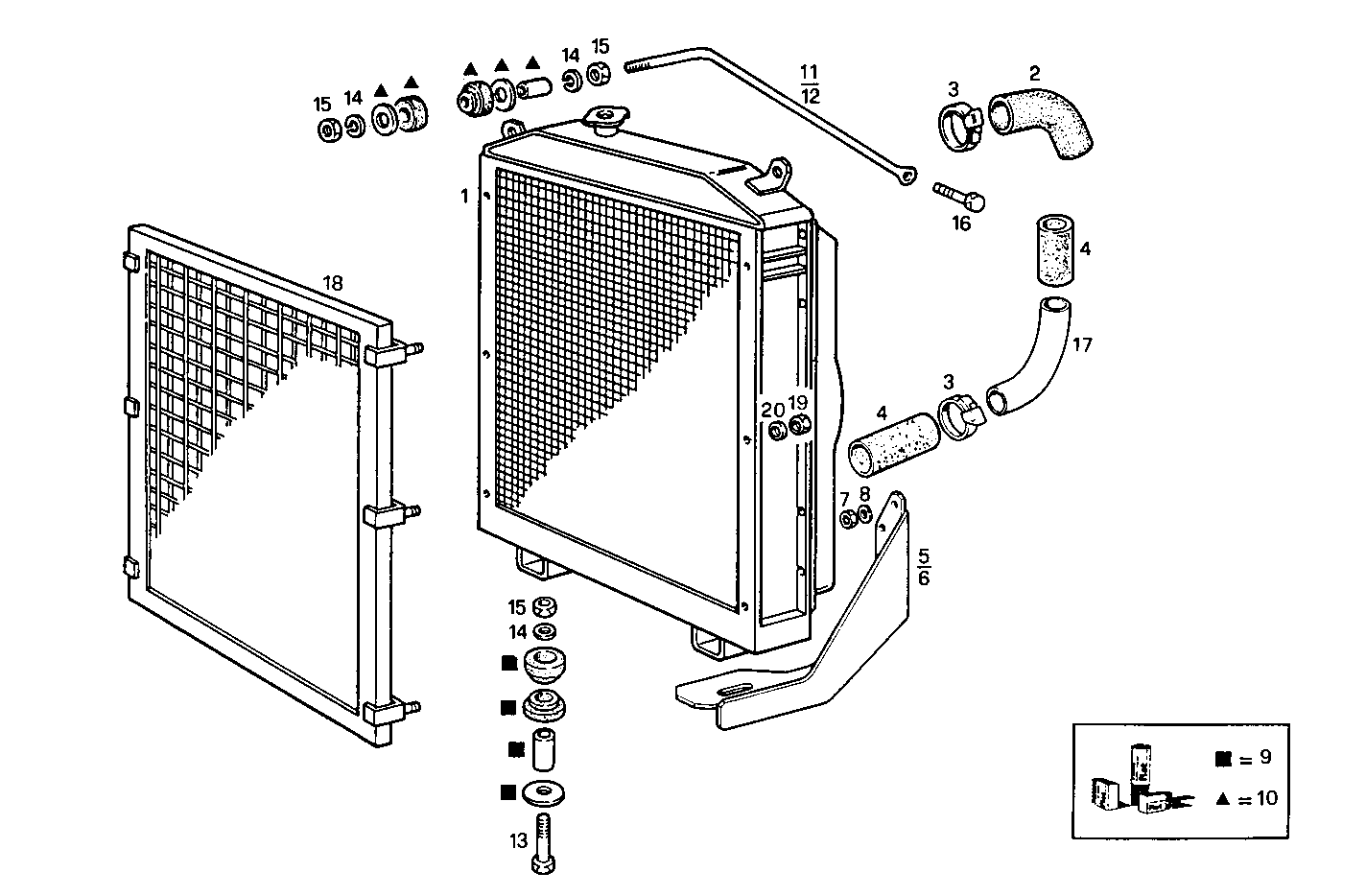

| Item |
Part number |
Description |
|
1 |
4936785 |
WATER RADIATOR ASSY |
|
2 |
4580242 |
RUBBER SLEEVE |
|
3 |
12174790 |
CLIP Ø47-67 MM |
|
4 |
10140086 |
CONNECTOR SLEEVE |
|
5 |
8103556 |
SUPPORT LEFT |
|
6 |
8103557 |
SUPPORT RIGHT |
|
7 |
12164011 |
HEXAGON NUT M14X1,5 [up to…] |
|
8 |
11200179 |
SPRING WASHER Ø14X32 MM |
|
9 |
8090977 |
KIT-RADIATOR A.S. COMPLETE |
|
10 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
11 |
4934517 |
TIE ROD RIGHT |
|
12 |
4919975 |
TIE ROD LEFT |
|
13 |
15541221 |
HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
|
14 |
11198779 |
SPRING WASHER Ø13 MM |
|
15 |
16101511 |
HEXAGON NUT M12X1,25 |
|
16 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
17 |
4919978 |
WATER PIPE |
|
18 |
4931985 |
PROTECTION |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
