PU8210i03.00A103

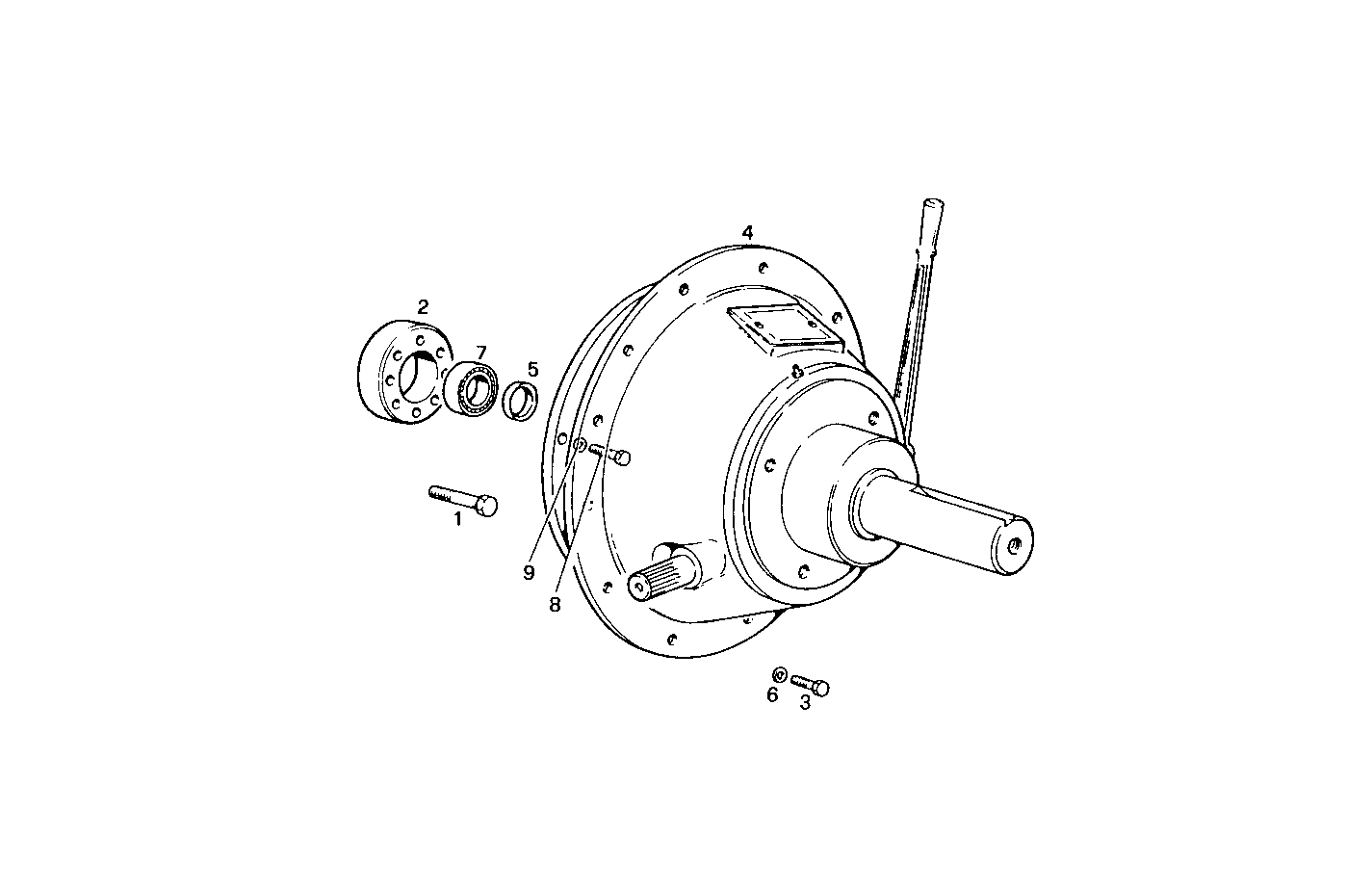

A27220006 BIDISC INDUSTRIAL CLUTCH - TECHNODRIVE 11'' 1/2
| Item | Part number | Description |
|---|---|---|
| 1 | 4928227 | SCREW |
| 2 | 4929053 | SUPPORT |
| 3 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 4 | 8015235 | CLUTCH BD 290/150 |
| 5 | 4931870 | SPACING BAR [up to 11-92] |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 28996680 | DRIVE BEARING |
| 8 | 15541524 | SCREW M12X1,25X90 MM |
| 9 | 17091174 | SPRING WASHER Ø12X24 MM |
