PU8210i03.00A103

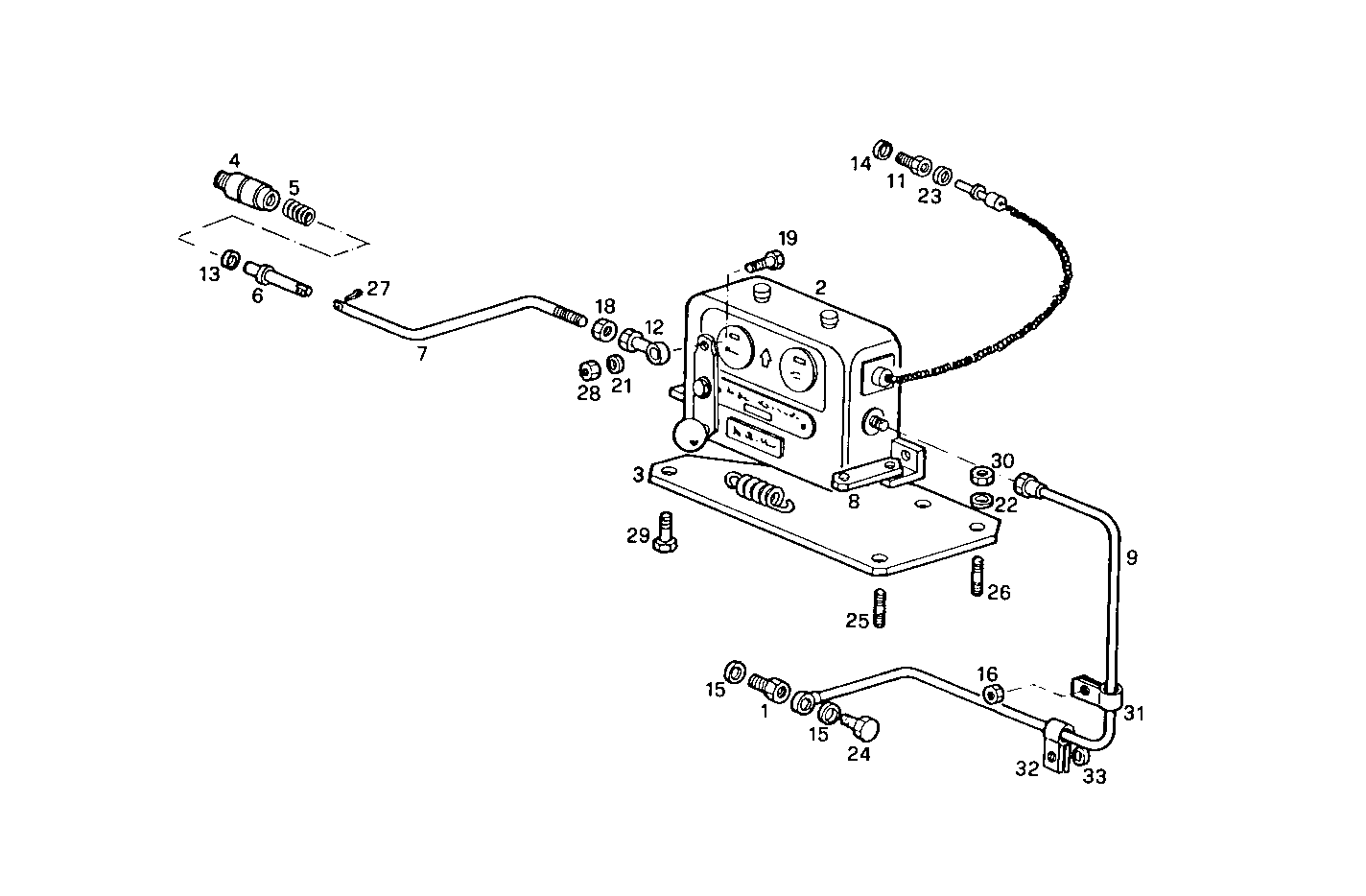

A38500002 MECHANICAL STOP SOLENOID - TEDDINGTON

Iveco/FPT MECHANICAL STOP SOLENOID

Item Part number Description
1 4934535 PIPE SOCKET
2 4934539 ENGINE STOP ASSY
3 4928067 SUPPORT
4 8108652 BUSH
5 4927040 SPRING
6 8108770 PIN
7 8108651 TIE ROD
8 4928071 RETAINER
9 4934540 OIL LINE
11 4934525 PIPE SOCKET
12 4904541 PIPE SOCKET
13 17277881 O-RING Ø7,65 MM SP=1,78 MM
14 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
15 4858606 GASKET Ø10X14X1 MM
16 10441390 PIPE CLIP
18 16981731 NUT M6
19 10902621 SCREW M6X25 MM
21 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
22 11193871 WASHER Ø8X16X1,4 MM
23 11270460 GASKET Ø17X21X1,5 MM
24 38800427 SCREW CONNECTOR
25 17366124 STUD M8X20X20
26 17366224 STUD
27 14163370 DOWEL PIN Ø4,4 MM
28 15896211 HEXAGON NUT M6
29 16043621 HEXAGON BOLT M8X25 MM
30 17037931 HEXAGON NUT M8X1,25
31 10449890 PIPE CLIP Ø53 MM
32 4656139 FASTENING BRACKET
33 12654401 WASHER
