PU8210SI02.00A100

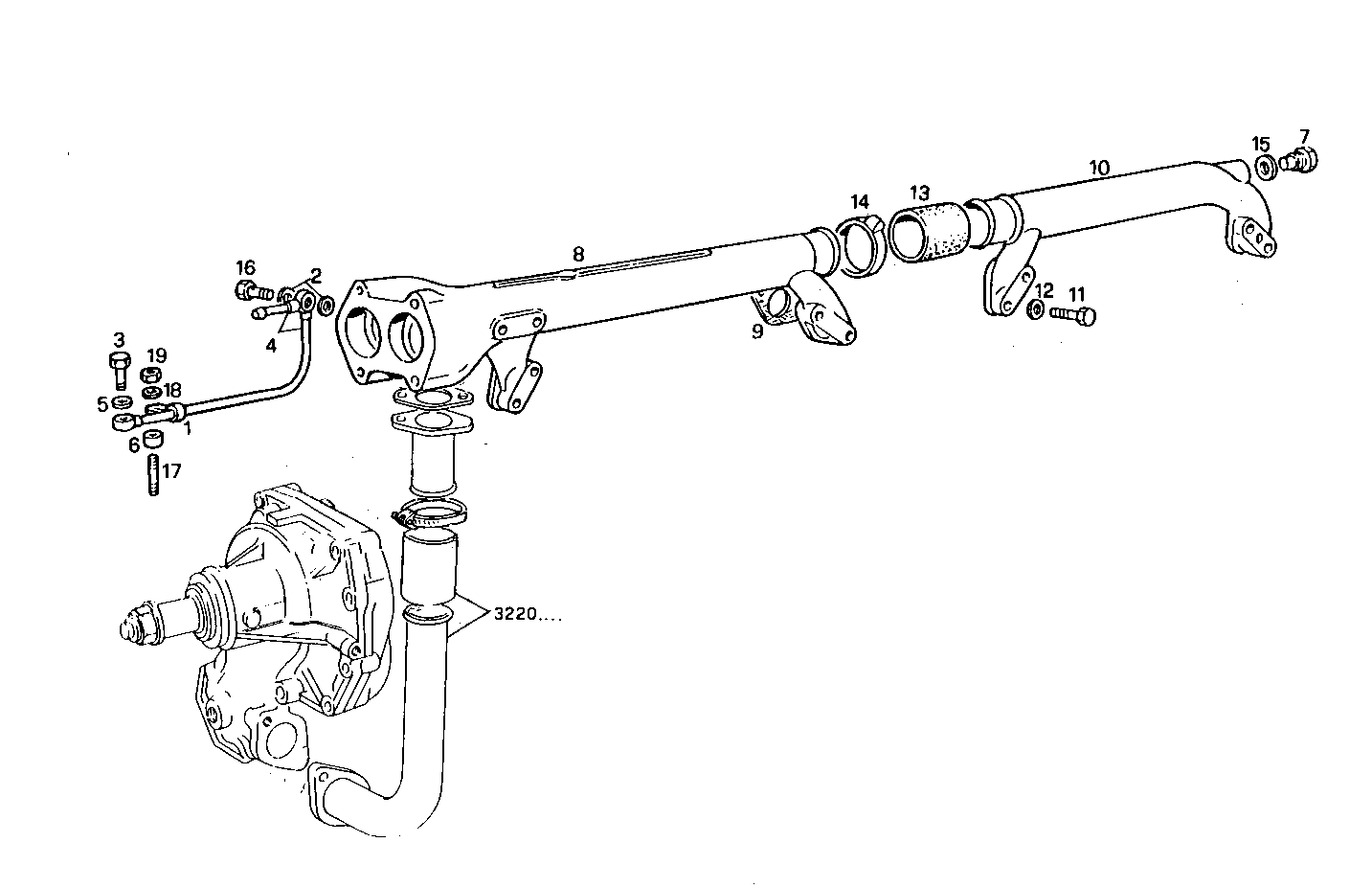

3210.037/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4625281 FASTENING BRACKET
2 4858609 WASHER Ø16X22 MM SP=1,5 MM
3 10181714 SCREW CONNECTOR
4 4811583 WATER PIPE
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 13605911 SPACER SP=8,5 MM
7 4765225 PLUG
8 98427086 WATER MANIFOLD
9 4852097 FLAT ENGINE GASKET
10 4616590 WATER MANIFOLD REAR
11 15888734 HEXAGON BOLT M10X1,25X55 MM
12 17095114 WASHER Ø10X21 MM
13 98420260 WATER HOSE
14 17764992 CLIP Ø50-70 MM
15 10260360 SEAL GASKET Ø24,3 MM
16 4864084 BANJO BOLT M16X1,5
17 13543624 STUD M8X16X30
18 11198074 SPRING WASHER Ø8X15 MM
19 17037931 HEXAGON NUT M8X1,25
