PU8210SRi10.00A100

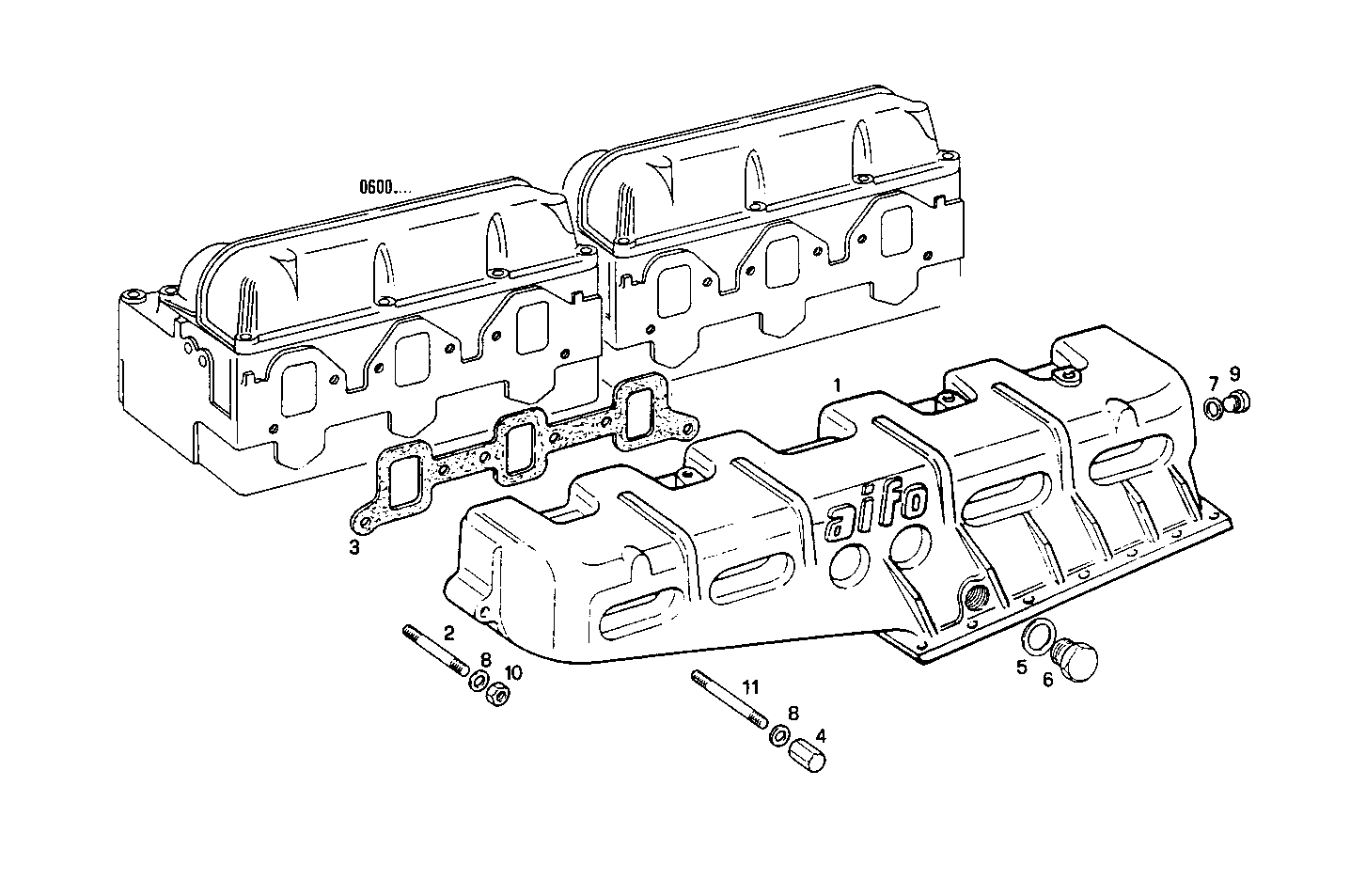

0710.032 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8107180 | INTAKE ELBOW |
| 2 | 13953221 | STUD M10X1,5X90 |
| 3 | 99444980 | INTAKE ELBOW GASK. |
| 4 | 8107227 | NUT M10X1,25 |
| 5 | 10265060 | SEAL GASKET Ø32X38 MM SP=1,5 MM |
| 6 | 16993611 | THREADED PLUG M32X1,5 |
| 7 | 4858606 | GASKET Ø10X14X1 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 11903111 | LOCK PLUG M10X1,25 |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 13548821 | STUD M10X20X145 |
