PU8210SRi10.00A100

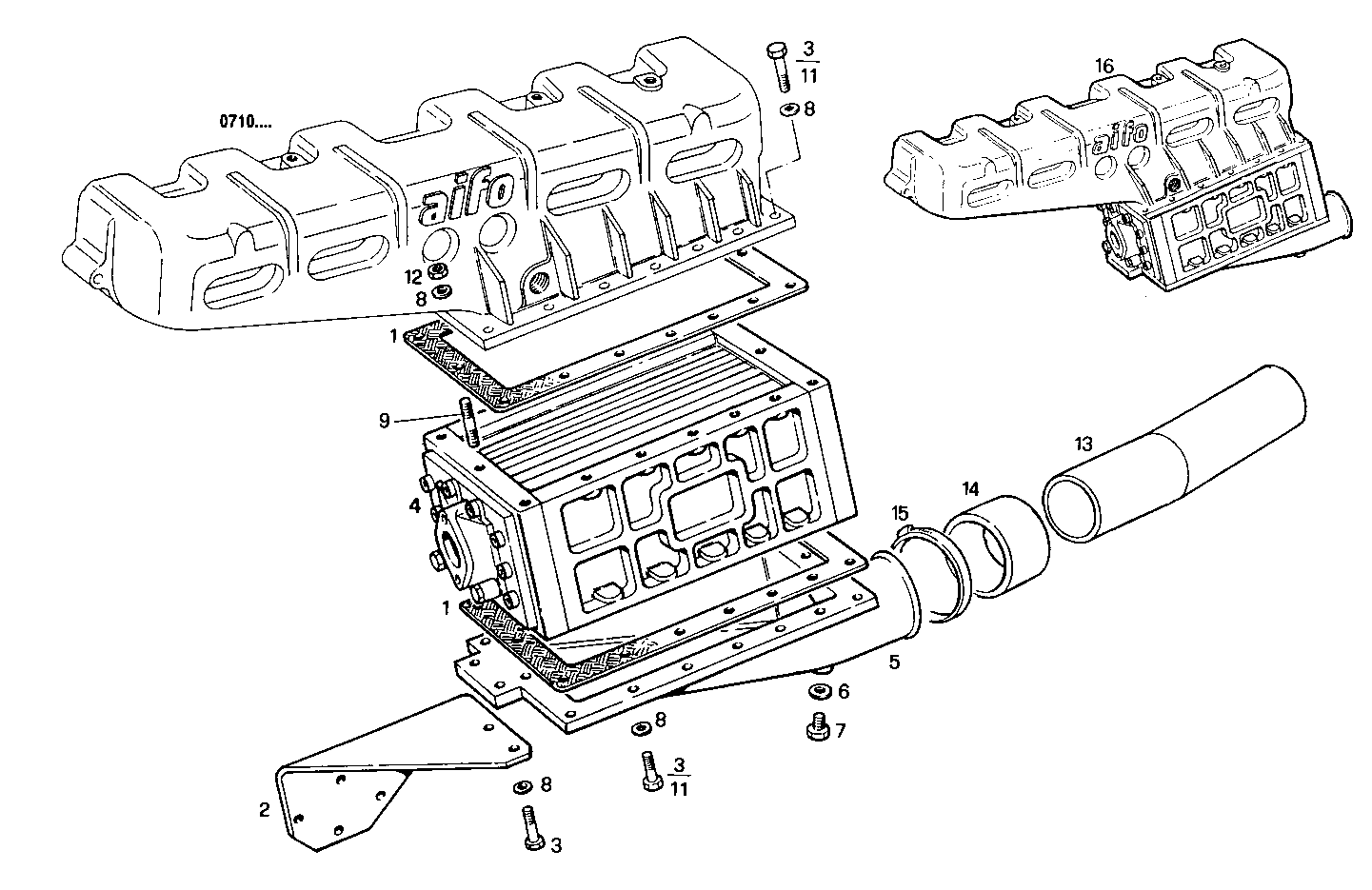

2460.029 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8008906 | GASKET |
| 2 | 8107181 | RETAINER |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 8022764 | AIR/WATER HEAT EXCHANGER ASSY |
| 5 | 8107213 | AIR HOOD |
| 6 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16729424 | STUD M8X1,25X25 |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 8107228 | AIR MANIFOLD |
| 14 | 4865230 | TURBOCHARGER HOSE |
| 15 | 4788410 | CLIP Ø92/98 MM |
| 16 | 8077071 | AIR/WATER HEAT EXCHANGER ASSY |
