PU8210SRi10.00A100

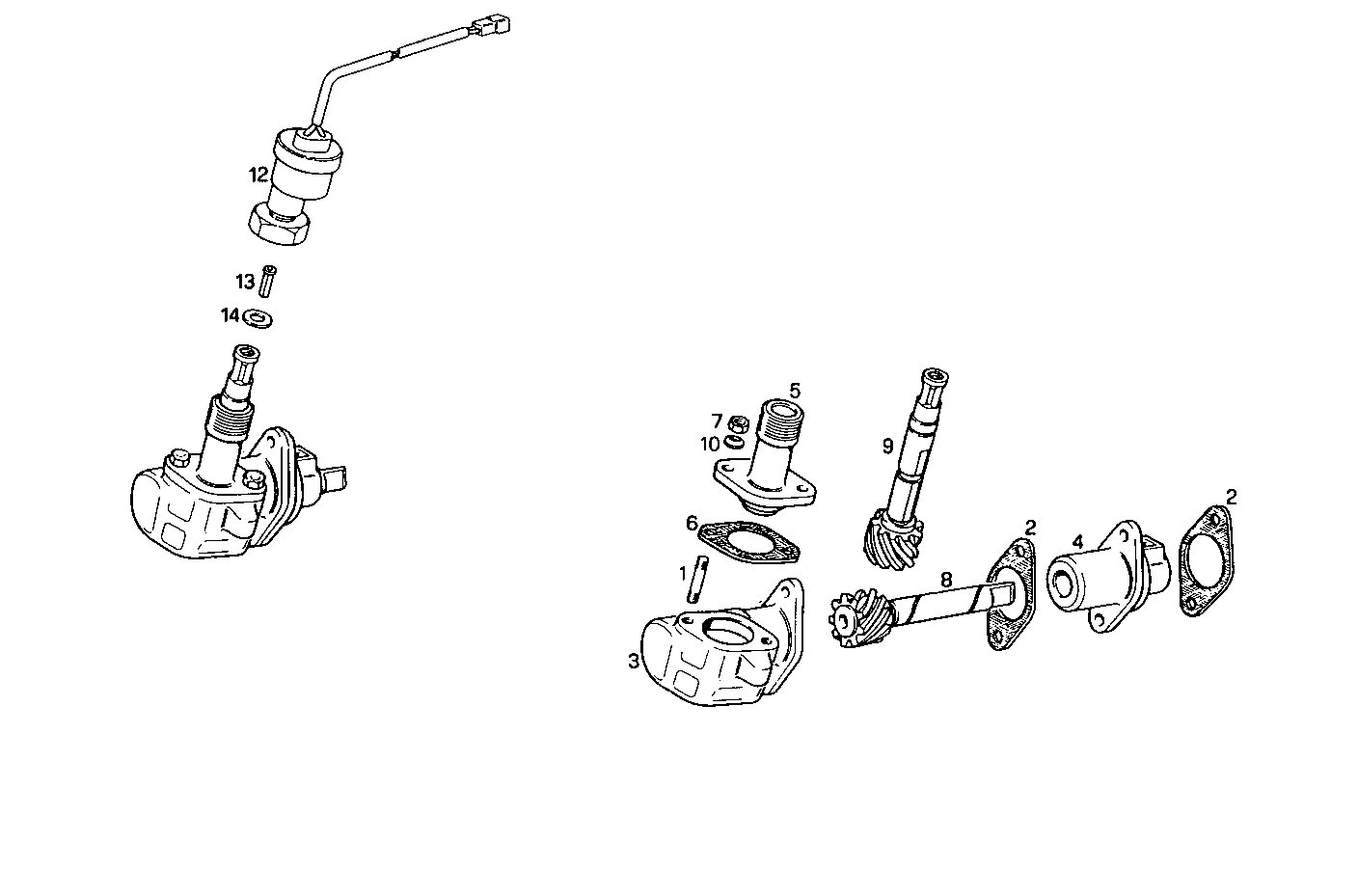

A11020005 ELECTRONIC RPM-COUNTER CONTROL - VEGLIA - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 11500121 | STUD M6X9X14 MM |
| 2 | 4851971 | GASKET |
| 3 | 4513941 | HOUSING |
| 4 | 4513942 | SUPPORT |
| 5 | 4513943 | SUPPORT |
| 6 | 4851970 | GASKET |
| 7 | 15896211 | HEXAGON NUT M6 |
| 8 | 4639057 | SHAFT |
| 9 | 4639058 | SHAFT |
| 10 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 12 | 4936138 | SPEED CONTROL |
| 13 | 4615079 | END PIECE |
| 14 | 4858606 | GASKET Ø10X14X1 MM |
