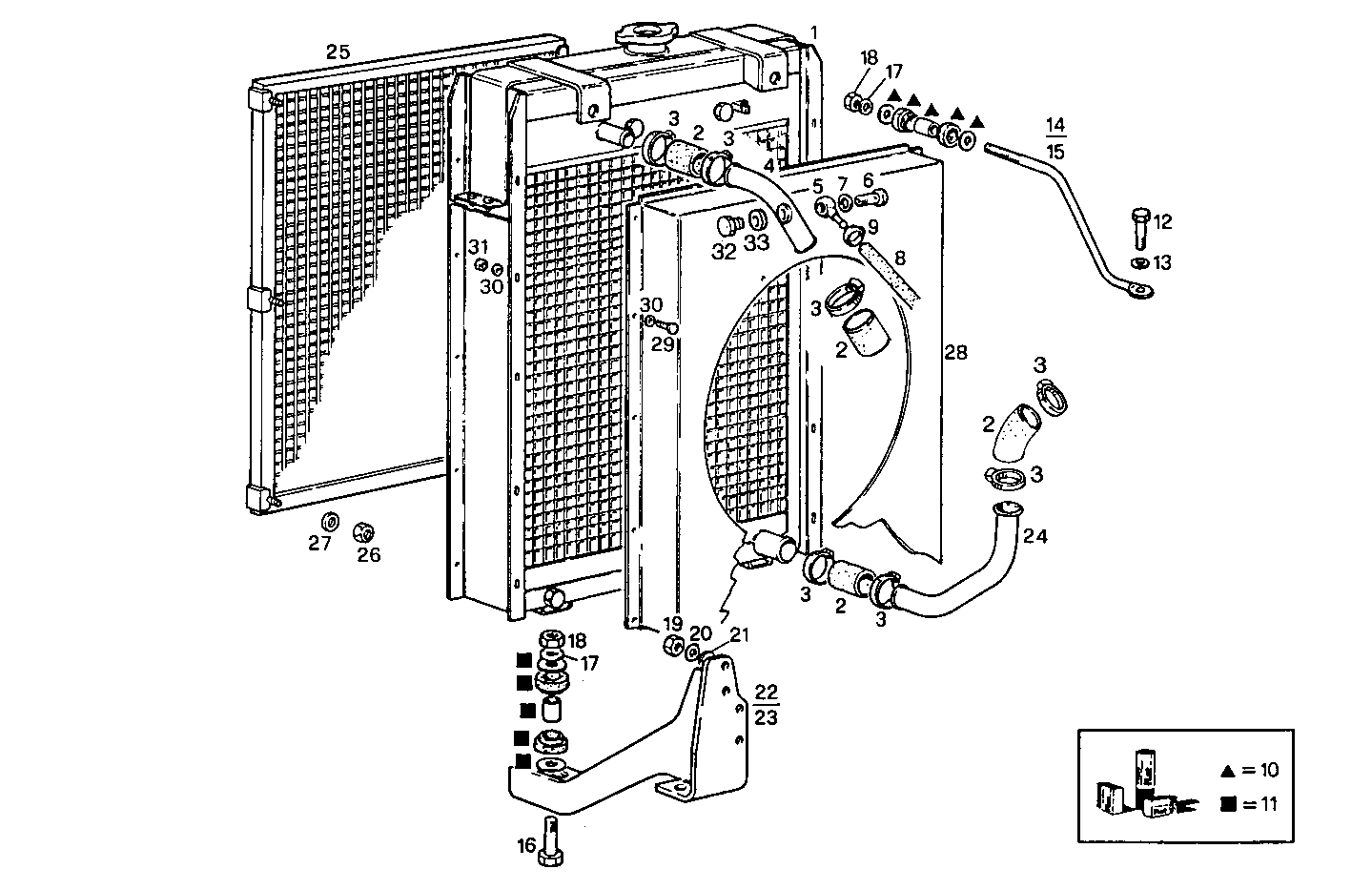

| Item |
Part number |
Description |
|
1 |
8107630 |
WATER RADIATOR ASSY |
|
2 |
17745887 |
RUBBER SLEEVE WATER |
|
3 |
17765091 |
CLIP Ø60/80 MM |
|
4 |
8022073 |
WATER PIPE |
|
5 |
98405514 |
PIPE SOCKET |
|
6 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
7 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
8 |
19067387 |
HOSE L = 0,240 mm. |
|
9 |
18087991 |
CLIP Ø8/16 MM |
|
10 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
11 |
8090977 |
KIT-RADIATOR A.S. COMPLETE |
|
12 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
8107626 |
TIE ROD RIGHT |
|
15 |
8107627 |
TIE ROD LEFT |
|
16 |
15541421 |
HEXAGON BOLT M12X1,25X80 MM |
|
17 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
18 |
17038621 |
NUT M12 |
|
19 |
17038821 |
HEXAGON NUT M14 |
|
20 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
21 |
10738121 |
WASHER Ø14 MM |
|
22 |
8107629 |
SUPPORT LEFT |
|
23 |
8107628 |
SUPPORT RIGHT |
|
24 |
8107624 |
WATER PIPE |
|
25 |
8107633 |
PROTECTION |
|
26 |
17037931 |
HEXAGON NUT M8X1,25 |
|
27 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
28 |
8008842 |
WATER CONVEYOR |
|
29 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
30 |
17088474 |
WASHER Ø6X12 MM |
|
31 |
17037821 |
HEXAGON NUT M6X1 |
|
32 |
16992411 |
THREADED PLUG M16X1,5 |
|
33 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
