PU8210SRi10.00A100

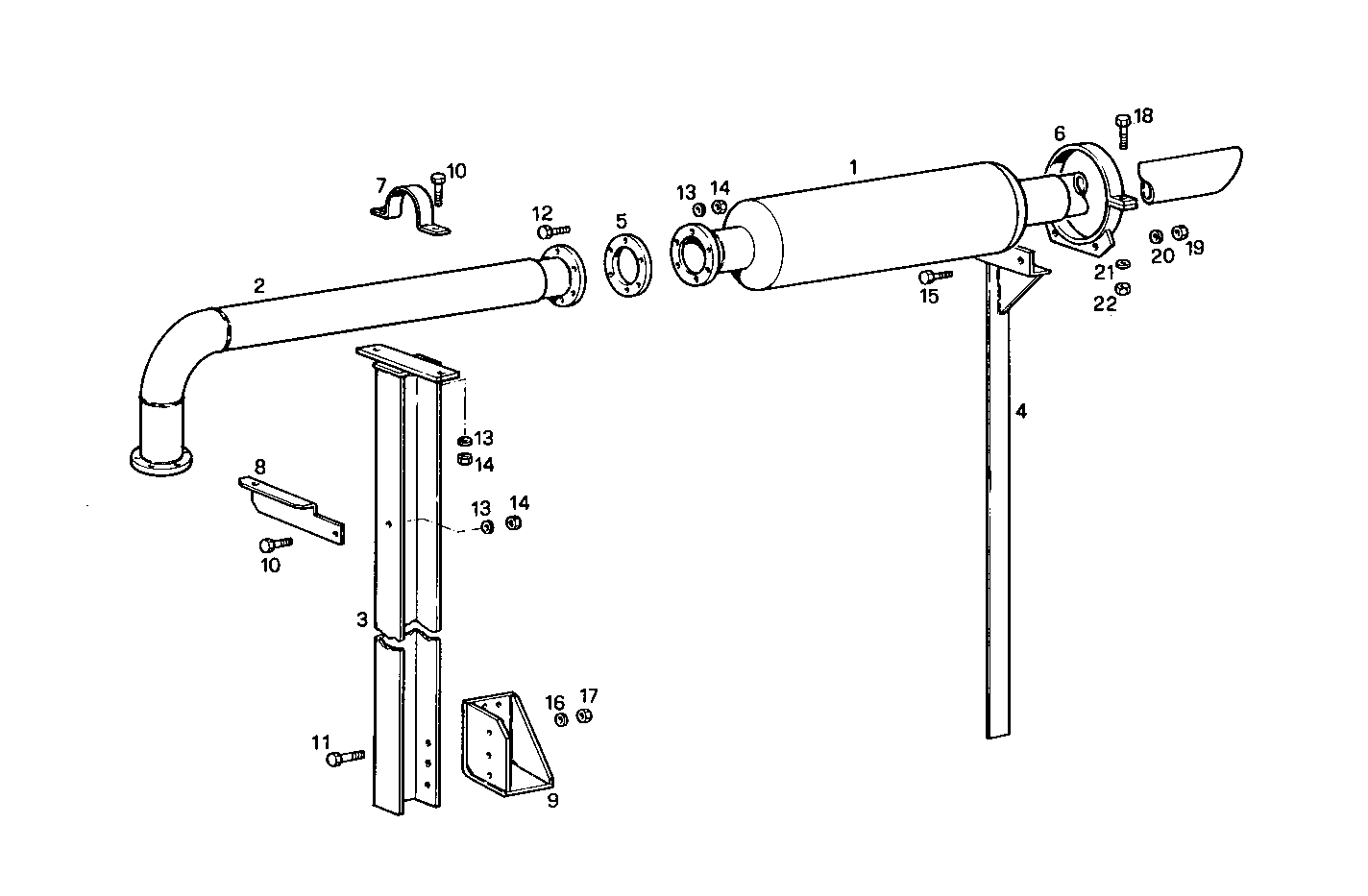

A23040004 HORIZONTAL SILENCER

Iveco/FPT HORIZONTAL SILENCER

Item Part number Description
1 8005060 SILENCER
2 8005057 EXHAUST PIPE
3 8005053 SUPPORT
4 8005059 SUPPORT
5 8009639 GASKET
6 4621724 CLIP
7 8005058 RETAINER
8 8005054 RETAINER
9 8005052 SUPPORT
10 15004021 HEXAGON BOLT M10X1,25X25 MM
11 11403821 SCREW
12 15970921 HEXAGON BOLT M10X1,25X35 MM
13 11198379 SPRING WASHER Ø10X20 MM SP=2,6
14 12164711 HEXAGON NUT M10X1,25
15 16043621 HEXAGON BOLT M8X25 MM
16 11194179 SPRING WASHER Ø15 MM
17 12164011 HEXAGON NUT M14X1,5 [up to…]
18 16038521 HEXAGON BOLT M6X100 MM
19 17037931 HEXAGON NUT M8X1,25
20 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
21 15896211 HEXAGON NUT M6
22 11194379 SPRING WASHER Ø6X12 MM
