PU8210SRi10.00A100

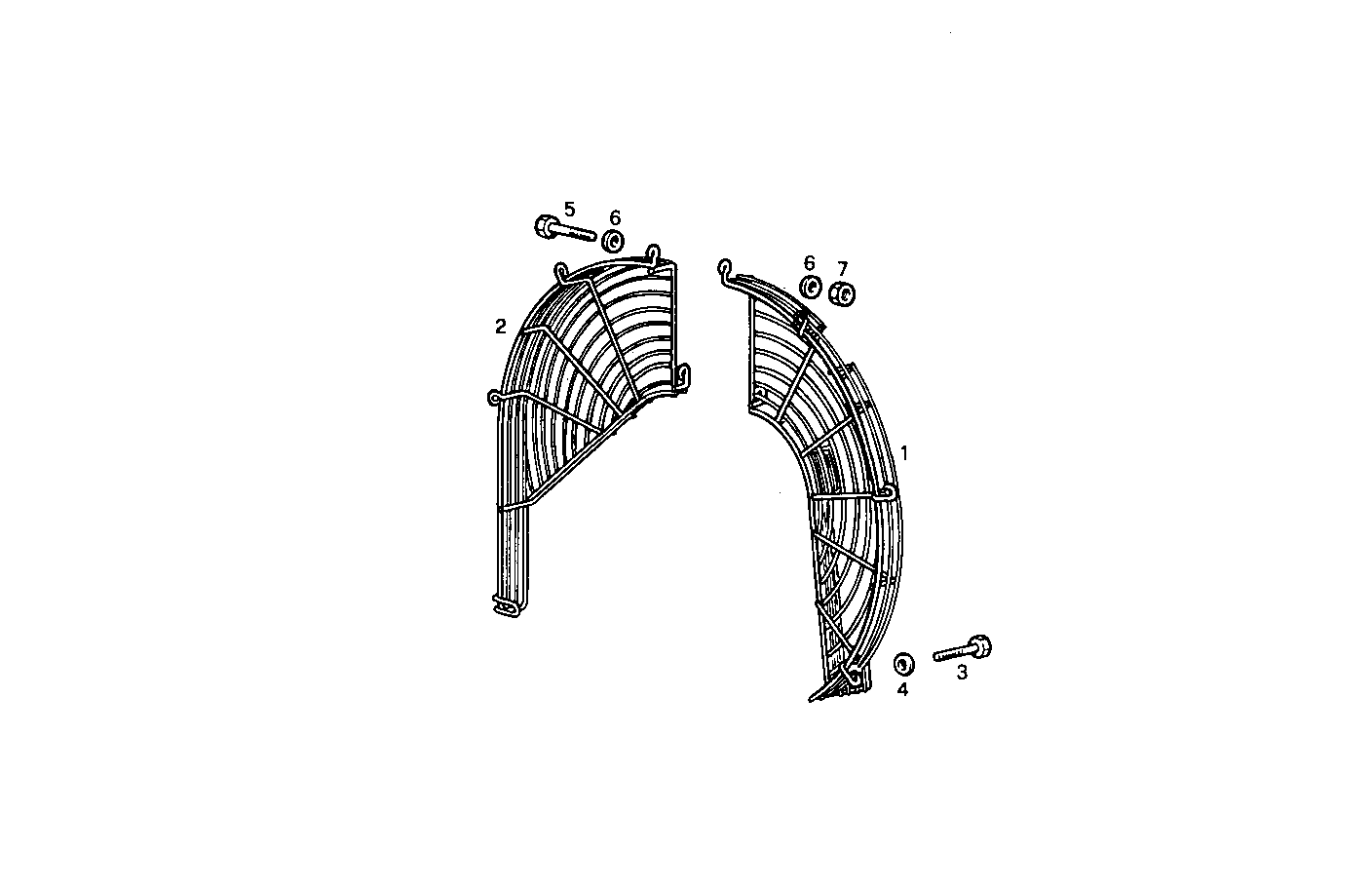

A48060006 GUARD - for fan

Iveco/FPT GUARD

Item Part number Description
1 8008494 PROTECTION
2 8008495 PROTECTION
3 15970621 SCREW M10X1,25X22
4 17090474 SPRING WASHER Ø10X27 MM SP=2,5
5 16043621 HEXAGON BOLT M8X25 MM
6 17089771 WASHER Ø8X22X1,5 MM
7 17037931 HEXAGON NUT M8X1,25
