PU8210SRi10.00A100

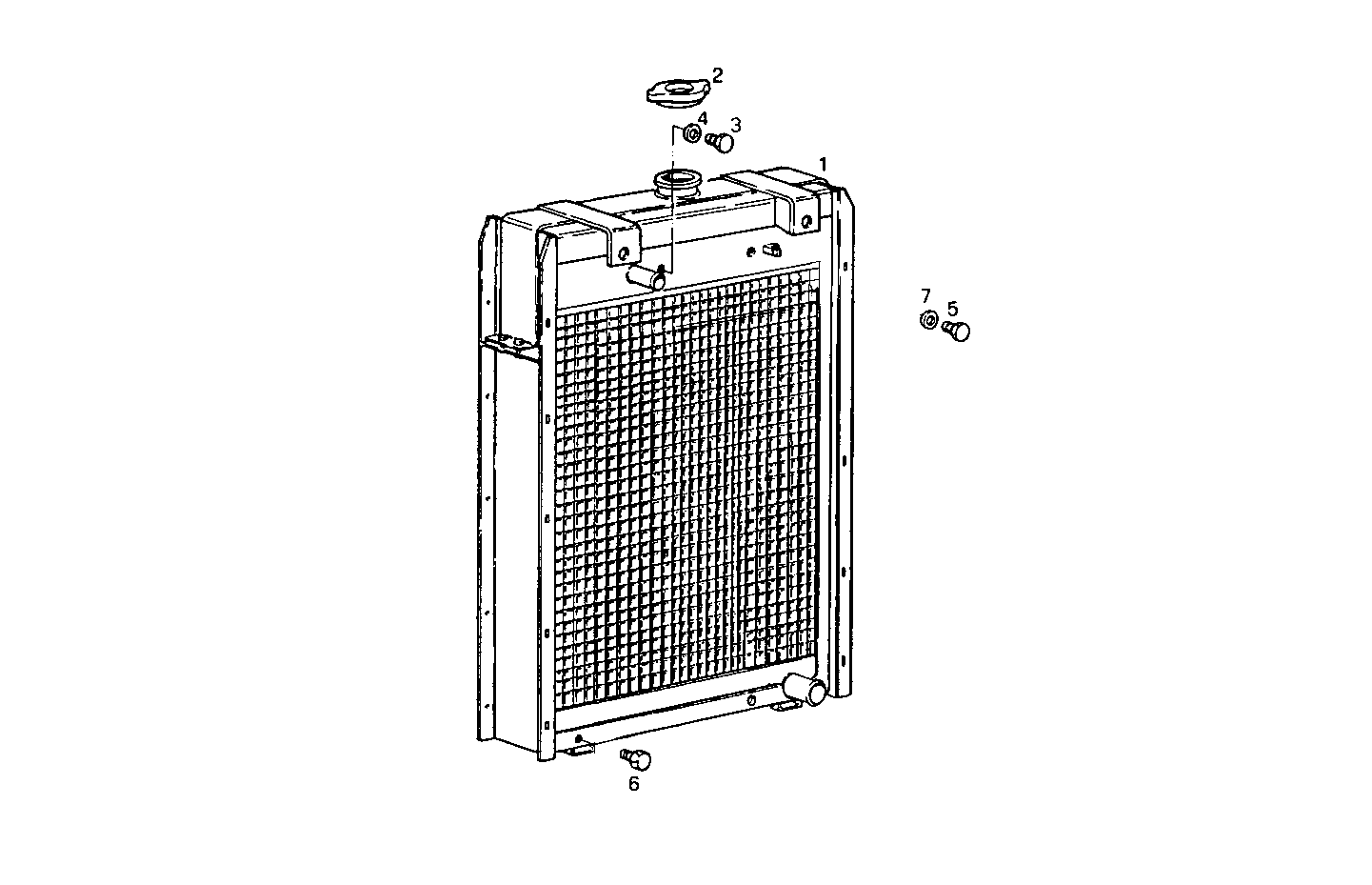

T2241003 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 2 | 8107632 | RADIATOR PLUG |
| 3 | 10300511 | LOCK PLUG M12X1,5 |
| 4 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 5 | 8105096 | PLUG |
| 6 | 10300611 | LOCK PLUG M14X1,5 |
| 7 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
