PU8210SRI10.00A101

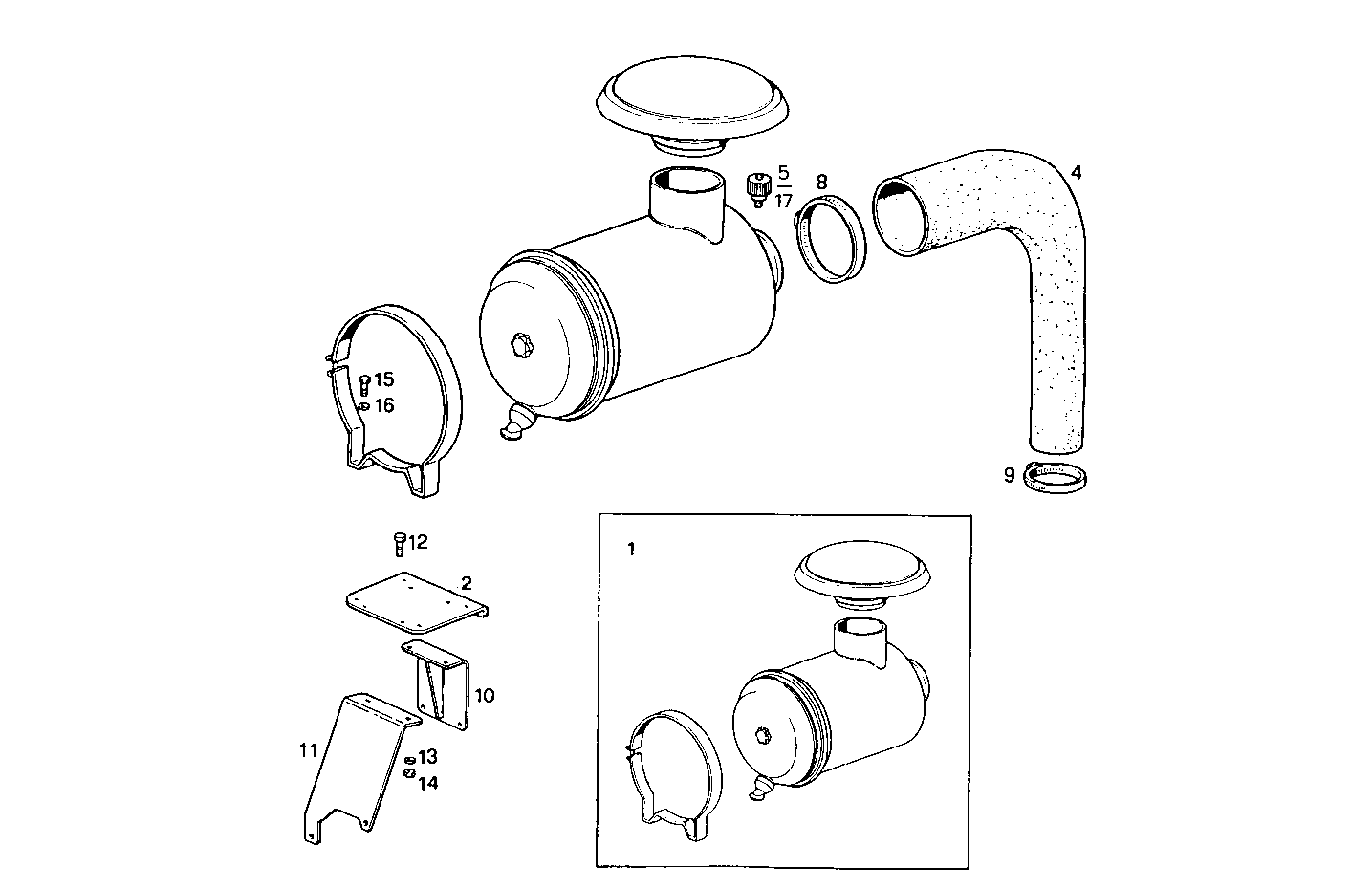

A21210036 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8016973 | AIR CLEANER ASSY |
| 2 | 8018478 | SUPPORT |
| 4 | 8018479 | FILTER HOSE |
| 5 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 8 | 17765991 | CLIP |
| 9 | 17765491 | CLIP Ø70/90 MM |
| 10 | 8110061 | RETAINER |
| 11 | 8110059 | RETAINER |
| 12 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 13 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 16607624 | SCREW M10X25 |
| 16 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 17 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
