PU8210SRI10.00A101

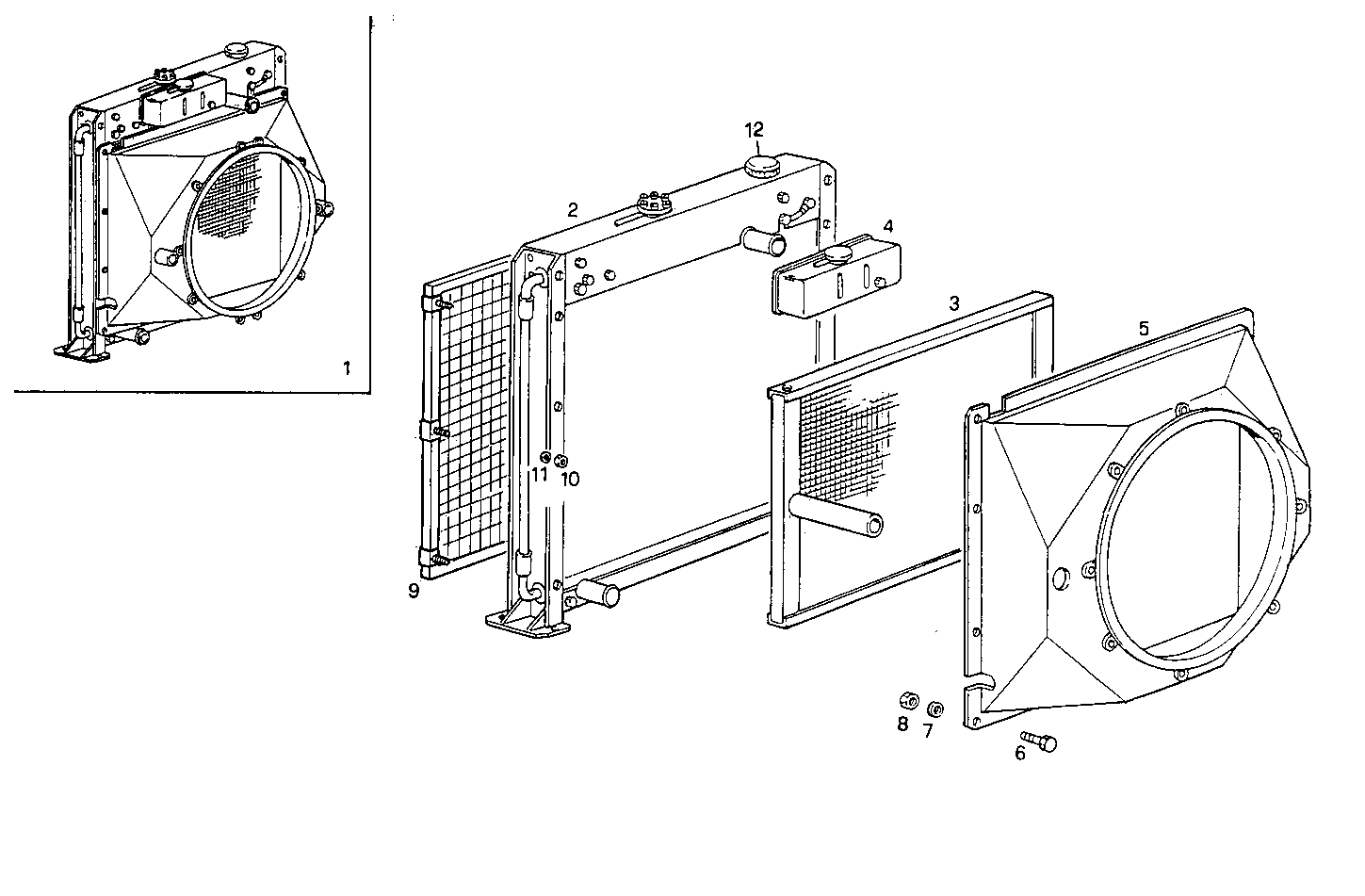

T2248001 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8008939 | WATER RADIATOR |
| 2 | 8021828 | WATER RADIATOR ASSY |
| 3 | 8109980 | INTERCOOLER |
| 4 | 8109981 | WATER EXPANSION TANK |
| 5 | 8109578 | AIR HOOD |
| 6 | 16043321 | HEXAGON BOLT M8X18 MM |
| 7 | 17089771 | WASHER Ø8X22X1,5 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 8108058 | PROTECTION |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 8017558 | RADIATOR PLUG |
| 12 | 8025146 | PLUG |
